WMHPU12
The WMHPU12 series of Class II medical AC/DC wall mount power supplies provides up to 12 Watts of continuous output power. This series consists of single output models from 5VDC to 27VDC with a 90~264VAC input voltage range. These supplies also have over load and over temperature protection. This series has UL/cUL 60601-1: 2nd Edition (US plug type only) and TUV/T-mark EN60601-1: 2nd Edition (US, UK, and EU types) medical approvals. All supplies are RoHS and Energy Star 2.0, Efficiency Level V compliant. These supplies also meet new CE requirements and are well suited for use in health care applications. The WMHPU12 series has three types of plugs available: US (A Type), UK (B Type), and EU (C Type). Optional output connectors are also available. Please call factory for ordering details.
• Class II Limited Power Source
• RoHS Compliant
• Energy Star 2.0, Efficiency Level V Compliant
• Single Output
• Wide Input Voltage Range: 90~264VAC, 47~63Hz
• Optional Output Connectors
• Over Load and Over Temperature Protection
• US, UK, and EU Types Available
• US Plug Medical Approvals: UL/cUL 60601-1: 2nd Edition and TUV/T-mark EN60601-1:2nd Edition
• UK and EU Plug Medical Approvals: TUV/T-mark EN60601-1: 2nd Edition
• Meets FCC Part-18 Class B and CISPR-11 EN55011 Class B Emission Limits
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |

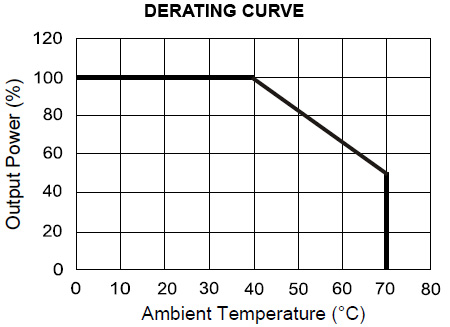

Case | Size | |
|---|---|---|---|---|---|---|---|---|
| WMHPU12A-102 | Input Voltage: 90~264 | Output Voltage: 5~6 | Output Current: 2.00 ~ 1.66 A | Output Power (W): 10 | No. Outputs: S | Case: Wall Mount | Size: 2.52" x 2.17" x 2.1" | Get a Quote |
| WMHPU12B-102 | Input Voltage: 90~264 | Output Voltage: 5~6 | Output Current: 2.00 ~ 1.66 A | Output Power (W): 10 | No. Outputs: S | Case: Wall Mount | Size: 2.52" x 2.17" x 2.37" | Get a Quote |
| WMHPU12C-102 | Input Voltage: 90~264 | Output Voltage: 5~6 | Output Current: 2.00 ~ 1.66 A | Output Power (W): 10 | No. Outputs: S | Case: Wall Mount | Size: 2.52" x 2.17" x 2.7" | Get a Quote |
| WMHPU12A-103 | Input Voltage: 90~264 | Output Voltage: 6~8 | Output Current: 2.00 ~ 1.50 A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.52" x 2.17" x 2.1" | Get a Quote |
| *WMHPU12A-104 | Input Voltage: 90~264 | Output Voltage: 8~11 | Output Current: 1.50 ~ 1.09 A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.52" x 2.17" x 2.1" | Get a Quote |
| *WMHPU12A-105 | Input Voltage: 90~264 | Output Voltage: 11~13 | Output Current: 1.09 ~ 0.92 A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.52" x 2.17" x 2.1" | Get a Quote |
| *WMHPU12A-106 | Input Voltage: 90~264 | Output Voltage: 13~16 | Output Current: 0.92 ~ 0.75 A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.52" x 2.17" x 2.1" | Get a Quote |
| *WMHPU12A-107 | Input Voltage: 90~264 | Output Voltage: 16~21 | Output Current: 0.75 ~ 0.57 A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.52" x 2.17" x 2.1" | Get a Quote |
| *WMHPU12A-108 | Input Voltage: 90~264 | Output Voltage: 21~27 | Output Current: 0.57 ~ 0.45 A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.52" x 2.17" x 2.1" | Get a Quote |
| WMHPU12B-103 | Input Voltage: 90~264 | Output Voltage: 6~8 | Output Current: 2.00 ~ 1.50 A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.52" x 2.17" x 2.37" | Get a Quote |
| *WMHPU12B-104 | Input Voltage: 90~264 | Output Voltage: 8~11 | Output Current: 1.50 ~ 1.09 A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.52" x 2.17" x 2.37" | Get a Quote |
| *WMHPU12B-105 | Input Voltage: 90~264 | Output Voltage: 11~13 | Output Current: 1.09 ~ 0.92 A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.52" x 2.17" x 2.37" | Get a Quote |
| *WMHPU12B-106 | Input Voltage: 90~264 | Output Voltage: 13~16 | Output Current: 0.92 ~ 0.75 A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.52" x 2.17" x 2.37" | Get a Quote |
| *WMHPU12B-107 | Input Voltage: 90~264 | Output Voltage: 16~21 | Output Current: 0.75 ~ 0.57 A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.52" x 2.17" x 2.37" | Get a Quote |
| *WMHPU12B-108 | Input Voltage: 90~264 | Output Voltage: 21~27 | Output Current: 0.57 ~ 0.45 A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.52" x 2.17" x 2.37" | Get a Quote |
| WMHPU12C-103 | Input Voltage: 90~264 | Output Voltage: 6~8 | Output Current: 2.00 ~ 1.50 A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.52" x 2.17" x 2.7" | Get a Quote |
| *WMHPU12C-104 | Input Voltage: 90~264 | Output Voltage: 8~11 | Output Current: 1.50 ~ 1.09 A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.52" x 2.17" x 2.7" | Get a Quote |
| *WMHPU12C-105 | Input Voltage: 90~264 | Output Voltage: 11~13 | Output Current: 1.09 ~ 0.92 A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.52" x 2.17" x 2.7" | Get a Quote |
| *WMHPU12C-106 | Input Voltage: 90~264 | Output Voltage: 13~16 | Output Current: 0.92 ~ 0.75 A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.52" x 2.17" x 2.7" | Get a Quote |
| *WMHPU12C-107 | Input Voltage: 90~264 | Output Voltage: 16~21 | Output Current: 0.75 ~ 0.57 A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.52" x 2.17" x 2.7" | Get a Quote |
| *WMHPU12C-108 | Input Voltage: 90~264 | Output Voltage: 21~27 | Output Current: 0.57 ~ 0.45 A | Output Power (W): 12 | No. Outputs: S | Case: Wall Mount | Size: 2.52" x 2.17" x 2.7" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27 |
| Output Current: | 0.57~0.45A, 0.75~0.57A, 0.92~0.75A, 1.09~0.92A, 1.5~1.09A, 2.0~1.5A, 2.0~1.5A, 2.0~1.66A |
| Output Power (Watts): | 10, 12 |
| Thermal Protection: | -25-130°C |
| General | |
| Efficiency: | 78% |
| Isolation: | 5656VDC min. (input to output) |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | US Plug (A Type): 4.6oz (130g) UK Plug (B Type): 5.3oz (150g) EU Plug (C Type): 4.9oz (140g) |

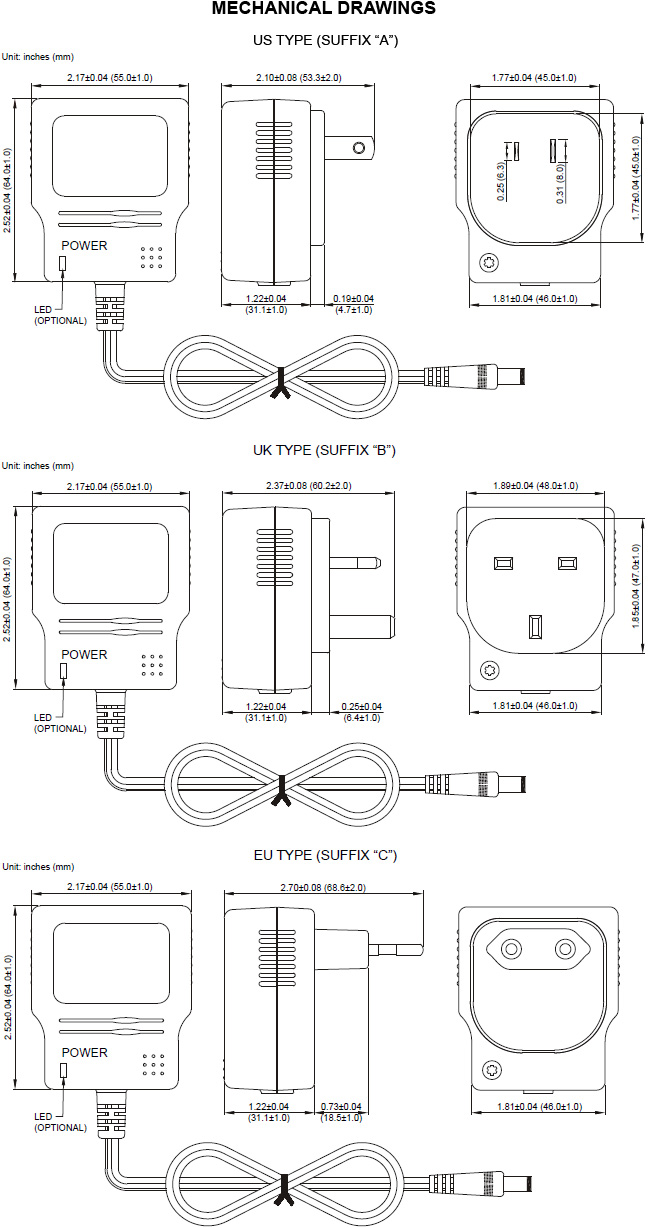

| Dimensions: | US Plug (A Type): 2.52" x 2.17" x 2.10" (64.0 x 55.0 x 53.3 mm) UK Plug (B Type): 2.52" x 2.17" x 2.37" (64.0 x 55.0 x 60.2 mm) EU Plug (C Type): 2.52" x 2.17" x 2.70" (64.0 x 55.0 x 68.6 mm) |
| Notes & safety | |
| Notes: | 1. Models with a “*” next to the model number are approved by CEC Level V. 2. Over Temperature Protection: Thermal shutdown by junction temperature controller; the adapter will automatically recover when the fault condition is removed. 3. Models WMHPU12-102~104 needs to use AWG#18/6FT output cable in order to meet the total regulation specified. Models WMHPU12-105~108 needs to use AWG#20/6FT output cable in order to meet the total regulation specified. The regulation and efficiency will change if a different output cable is used. 4. Optional output connectors are available. Please call factory for ordering details. 5. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | US Plug: UL/cUL 60601-1: 2nd Edition TUV/T-mark EN60601-1: 2nd EditionUK & EU Plugs: TUV/T-mark EN60601-1: 2nd Edition |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/T-mark EN60601-1: 2nd Edition |
| Energy Star Compliance: | Level V |
