PSAZC
The PSAZC series of AC/DC power supplies provides 2 watts of output power in a 1.12” x 1.02” x 0.67” encapsulated PCB mountable package. This series consists of 3.3,V 5V, 12V, 15V, and 24V single output models with a universal input range of 90-305VAC (120-430VDC). Some features include 3000VAC I/O isolation, -40°C to +80°C operating temperature range, and over power and short circuit protection. All models are RoHS compliant and have UL/cUL, CE, and CB (pending) safety approvals.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |

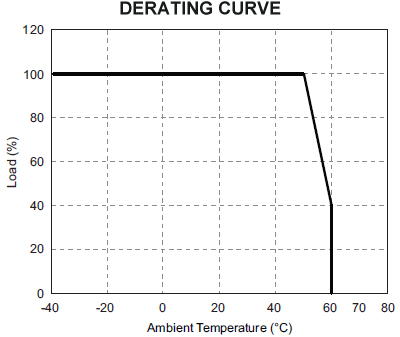

Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSAZC-3.3S | Input Voltage: 90~305 | Output Voltage: 3.3 | Output Current: 600mA | Output Power (W): 2 | No. Outputs: S | Case: PCB Mount | Size: 1.12" x 1.02" x 0.67" | Get a Quote |
| PSAZC-5S | Input Voltage: 90~305 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: PCB Mount | Size: 1.12" x 1.02" x 0.67" | Get a Quote |
| PSAZC-9S | Input Voltage: 90~305 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: PCB Mount | Size: 1.12" x 1.02" x 0.67" | Get a Quote |
| PSAZC-12S | Input Voltage: 90~305 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: PCB Mount | Size: 1.12" x 1.02" x 0.67" | Get a Quote |
| PSAZC-15S | Input Voltage: 90~305 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: PCB Mount | Size: 1.12" x 1.02" x 0.67" | Get a Quote |
| PSAZC-24S | Input Voltage: 90~305 | Output Voltage: 24 | Output Current: 83mA | Output Power (W): 2 | No. Outputs: S | Case: PCB Mount | Size: 1.12" x 1.02" x 0.67" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~305 |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, 24 |
| Voltage Accuracy: | ±6% |
| Output Current: | 600mA, 400mA, 222mA, 167mA, 133mA, 83mA |
| Output Power (Watts): | 2 |
| Short Circuit Protection: | Hiccup Mode, Indefinite (Automatic Recovery) |
| General | |
| Efficiency: | Up to 73% |
| Isolation: | 3000VAC |
| Environmental | |
| Operating Temperature: | -40 to 80°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | TBD |

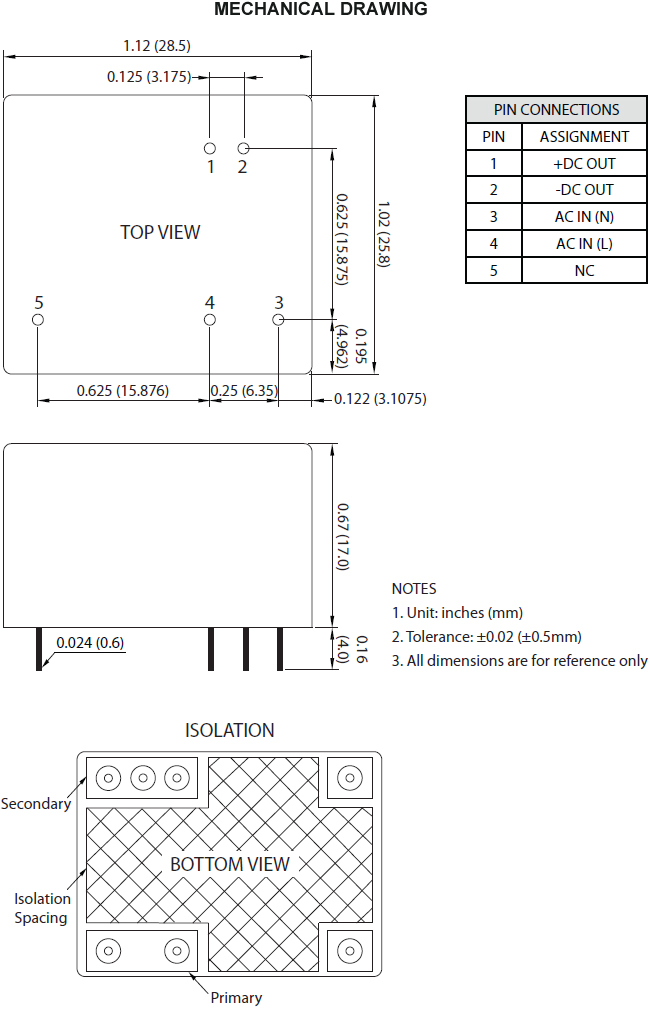

| Dimensions: | 1.12" x 1.02" x 0.67" (28.5 x 25.8 x 17.0 mm) |
| Case Material: | Plastic Resin with Fiberglass |
| Notes & safety | |
| Notes: | 1. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL, CE, CB |
| RoHS Compliance: | Yes |
