WMGPSU06x-CC

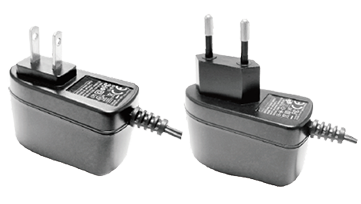

The WMGPSU06X-CC series of AC/DC wall mount power supplies offers up to 6 watts of output power in a 2.60” x 1.26” x 1.67” compact package. This series consists of single output models with a universal input range of 100~240VAC. Each model in this series has high efficiency and reliability, passes LPS, and has over voltage, over current, and short circuit protection. This series has UL60950-1; CSA C22.2, EN60950-1, and IEC60905-1 safety approvals.

• Universal Input Voltage of 100~240VAC • Single Output • Passes LPS • Compact Package • High Efficiency and Reliability • Over Voltage, Over Current, and Short Circuit Protection • UL60950-1; CSA C22.2, EN60950-1, and IEC60950-1 Safety Approvals
Part Number Setup:
X: “U” for American Plug or “E” for European Plug
Example:
WMGPSU06E-5-CC = 16~21VDC Output with European Plug
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
WMGPSU06X-0-CC Input Voltage: 100~240 Output Voltage: 3~5 Output Current: 1.33A Output Power (W): 4 No. Outputs: S Case: Wall Mount Size: 2.6" x 1.26" x 1.67" Get a Quote
WMGPSU06X-1-CC Input Voltage: 100~240 Output Voltage: 5~6 Output Current: 1.00A Output Power (W): 5 No. Outputs: S Case: Wall Mount Size: 2.6" x 1.26" x 1.67" Get a Quote
WMGPSU06X-1-1-CC Input Voltage: 100~240 Output Voltage: 6~8 Output Current: 1.00A Output Power (W): 6 No. Outputs: S Case: Wall Mount Size: 2.6" x 1.26" x 1.67" Get a Quote
WMGPSU06X-2-CC Input Voltage: 100~240 Output Voltage: 8~11 Output Current: 0.75A Output Power (W): 6 No. Outputs: S Case: Wall Mount Size: 2.6" x 1.26" x 1.67" Get a Quote
WMGPSU06X-3-CC Input Voltage: 100~240 Output Voltage: 11~13 Output Current: 0.54A Output Power (W): 6 No. Outputs: S Case: Wall Mount Size: 2.6" x 1.26" x 1.67" Get a Quote
WMGPSU06X-4-CC Input Voltage: 100~240 Output Voltage: 13~16 Output Current: 0.46A Output Power (W): 6 No. Outputs: S Case: Wall Mount Size: 2.6" x 1.26" x 1.67" Get a Quote
WMGPSU06X-5-CC Input Voltage: 100~240 Output Voltage: 16~21 Output Current: 0.37A Output Power (W): 6 No. Outputs: S Case: Wall Mount Size: 2.6" x 1.26" x 1.67" Get a Quote
WMGPSU06X-6-CC Input Voltage: 100~240 Output Voltage: 21~27 Output Current: 0.28A Output Power (W): 6 No. Outputs: S Case: Wall Mount Size: 2.6" x 1.26" x 1.67" Get a Quote
WMGPSU06X-7-CC Input Voltage: 100~240 Output Voltage: 27~33 Output Current: 0.20A Output Power (W): 6 No. Outputs: S Case: Wall Mount Size: 2.6" x 1.26" x 1.67" Get a Quote
WMGPSU06X-8-CC Input Voltage: 100~240 Output Voltage: 33~48 Output Current: 0.18A Output Power (W): 6 No. Outputs: S Case: Wall Mount Size: 2.6" x 1.26" x 1.67" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 100~240
Input Frequency: 50 to 60Hz
Output
Output Voltage: 3~5, 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~48
Output Current: 0.18A, 0.20A, 0.28A, 0.37A, 0.46A, 0.54A, 0.75A, 1.00A, 1.33A
Output Power (Watts): 4, 5, 6
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Protected by Zener Diode
General
Efficiency: Up to 75%
Environmental
Operating Temperature: 0 to 40ºC
Storage Temperature: -40 to 85ºC
Physical
Weight: 2.47~3.53oz (70~100g)
Dimensions: 2.60in x 1.26in x 1.67in (66mm x 32mm x 42.5mm)
Notes & safety
Notes: 1. “X” in model number indicates plug type. “X” can either be “U” for American plug or “E” for European plug.
2. For any input voltage change between input voltage range.
3. Optional output connectors available.
4. This product is Listed to applicable standards and requirements by UL.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60950-1; CSA C22.2, EN60950-1, IEC60950-1
