PSAOCH

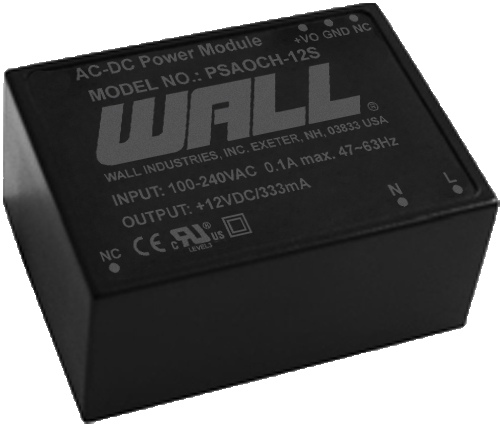

The PSAOCH series of AC/DC switching power supplies provides up to 4 watts of output power in a 1.46” x 1.08” x 0.69” encapsulated PCB mountable package. This series consists of single and dual output models with a universal input range of 90-305VAC (120-430VDC). Some features include low ripple and noise, -40°C to +80°C operating temperature range, as well as over power and short circuit protection. All models have CE safety approvals and UL approval is available if needed.
• Isolation Class II
• Up to 4 Watts Output Power
• Low Ripple and Noise
• Single and Dual Outputs
• CE Approvals (UL pending)
• PCB Mountable Switching Power Supply
• Fully Encapsulated Plastic Case
• -40°C to +80°C Operating Temperature Range
• Universal Input Voltage Range: 90-305VAC (120-430VDC)
• Short Circuit and Over Power Protection
• < 0.3W No Load Input Power
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSAOCH-5S3.3S | Input Voltage: 90~305 | Output Voltage: 5, 3.3 | Output Current: 600mA, 150mA | Output Power (W): 3.5 | No. Outputs: D | Case: PCB Mount | Size: 1.46" x 1.08" x 0.69" | Get a Quote |
| PSAOCH-8S5S | Input Voltage: 90~305 | Output Voltage: 8, 5 | Output Current: 375mA, 120mA | Output Power (W): 3.6 | No. Outputs: D | Case: PCB Mount | Size: 1.46" x 1.08" x 0.69" | Get a Quote |
| PSAOCH-12S5S | Input Voltage: 90~305 | Output Voltage: 12, 5 | Output Current: 250mA, 120mA | Output Power (W): 3.6 | No. Outputs: D | Case: PCB Mount | Size: 1.46" x 1.08" x 0.69" | Get a Quote |
| PSAOCH-3.3S | Input Voltage: 90~305 | Output Voltage: 3.3 | Output Current: 1200mA | Output Power (W): 3.96 | No. Outputs: S | Case: PCB Mount | Size: 1.46" x 1.08" x 0.69" | Get a Quote |
| PSAOCH-5S | Input Voltage: 90~305 | Output Voltage: 5 | Output Current: 800mA | Output Power (W): 4 | No. Outputs: S | Case: PCB Mount | Size: 1.46" x 1.08" x 0.69" | Get a Quote |
| PSAOCH-8S | Input Voltage: 90~305 | Output Voltage: 8 | Output Current: 500mA | Output Power (W): 4 | No. Outputs: S | Case: PCB Mount | Size: 1.46" x 1.08" x 0.69" | Get a Quote |
| PSAOCH-9S | Input Voltage: 90~305 | Output Voltage: 9 | Output Current: 444mA | Output Power (W): 4 | No. Outputs: S | Case: PCB Mount | Size: 1.46" x 1.08" x 0.69" | Get a Quote |
| PSAOCH-12S | Input Voltage: 90~305 | Output Voltage: 12 | Output Current: 333mA | Output Power (W): 4 | No. Outputs: S | Case: PCB Mount | Size: 1.46" x 1.08" x 0.69" | Get a Quote |
| PSAOCH-14S | Input Voltage: 90~305 | Output Voltage: 14 | Output Current: 286mA | Output Power (W): 4 | No. Outputs: S | Case: PCB Mount | Size: 1.46" x 1.08" x 0.69" | Get a Quote |
| PSAOCH-15S | Input Voltage: 90~305 | Output Voltage: 15 | Output Current: 267mA | Output Power (W): 4 | No. Outputs: S | Case: PCB Mount | Size: 1.46" x 1.08" x 0.69" | Get a Quote |
| PSAOCH-24S | Input Voltage: 90~305 | Output Voltage: 24 | Output Current: 167mA | Output Power (W): 4 | No. Outputs: S | Case: PCB Mount | Size: 1.46" x 1.08" x 0.69" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~305 |
| Input Frequency: | 47Hz - 440Hz |
| Output | |
| Output Voltage: | 3.3, 5, 8, 9, 12, 14, 15, 24 |
| Voltage Accuracy: | Single Outptut, Dual Output Vo: ±2% Dual Output Vr: ±5% |
| Output Current: | 1200mA, 800mA, 600mA, 500mA, 444mA, 333mA, 375mA, 286mA, 267mA, 250mA, 150mA, 167mA, 120mA |
| Output Power (Watts): | 3.5, 3.6, 3.96, 4 |
| Short Circuit Protection: | Hiccup Mode, Indefinite (Automatic Recovery) |
| Over Voltage Protection: | Zener Diode Clamp |
| General | |
| Efficiency: | Up to 77% |
| Isolation: | 3000VAC |
| Environmental | |
| Operating Temperature: | -40 to 80°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 0.92oz (26g) |
| Dimensions: | 1.46" x 1.08" x 0.69" (37.0 x 27.5 x 17.5 mm) |
| Case Material: | Plastic Resin |
| Notes & safety | |
| Notes: | 1. Dual output models require a minimum loading on the output to maintain specified regulations. Operation under no-load conditions will not damage these devices; however, they may not meet all listed specifications. 2. Ripple & Noise is measured 20MHz limited bandwidth and with 0.1µF and 47µF capacitors in parallel across the output. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | CE, (UL, cUL pending) |
