WMSAW06D

The WMSAW06D series of AC DC wall mount power supplies offers up to 6 watts of output power in a light weight and compact package. This series consists of single output models with a universal input range of 90~264VAC and output voltages ranging from 5V to 24V. Both USB and Cable types are available in this series, and US and EU plug types are also available. Each model in this series is protected against short circuit, over voltage, and over current conditions and has UL/cUL (60950 & UL1310), IEC/EN 62368, FCC safety approvals. Please call factory for order details.

• Universal Input Voltage of 90~264VAC • Output Voltages Ranging from 5V to 24V • Level VI Compliant • Light Weight and Compact • Short Circuit, Over Current, and Input Protection • UL/cUL (60950 & UL1310), IEC/EN 62368, FCC Safety Approvals • RoHS Compliant • Optional Cabinet Color

Part Number Setup:
x: "U" for USA plug or "E" for EU plug
y: "B" Black Case or "W" for White Case
A: USB
B: Cable

Example:
WMSAW06D-06-300UAB = 6V Model with USA Plug, USB, and Black Case

Get a Quote Request a Sample Custom Solutions

Models
Specifications

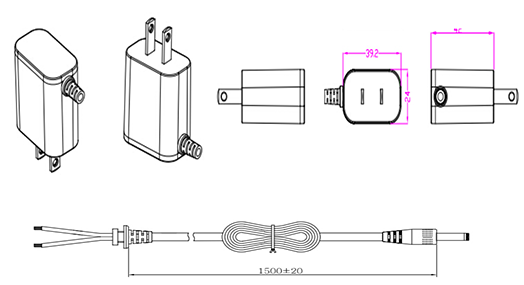

Drawings

Model Number	Input Voltage	Output Voltage	Output Current	Output Power (W)	No. Outputs	Case	Size
WMSAW06D-06-300xAy	Input Voltage: 90~264	Output Voltage: 6	Output Current: 300mA	Output Power (W): 1.8	No. Outputs: S	Case: Wall Mount	Size: 1.52" x 0.93" x 1.65"	Get a Quote
WMSAW06D-06-300xBy	Input Voltage: 90~264	Output Voltage: 6	Output Current: 300mA	Output Power (W): 1.8	No. Outputs: S	Case: Wall Mount	Size: 1.52" x 0.93" x 1.65"	Get a Quote
WMSAW06D-05-500xAy	Input Voltage: 90~264	Output Voltage: 5	Output Current: 500mA	Output Power (W): 2.5	No. Outputs: S	Case: Wall Mount	Size: 1.52" x 0.93" x 1.65"	Get a Quote
WMSAW06D-05-500xBy	Input Voltage: 90~264	Output Voltage: 5	Output Current: 500mA	Output Power (W): 2.5	No. Outputs: S	Case: Wall Mount	Size: 1.52" x 0.93" x 1.65"	Get a Quote
WMSAW06D-09-300xAy	Input Voltage: 90~264	Output Voltage: 9	Output Current: 300mA	Output Power (W): 2.7	No. Outputs: S	Case: Wall Mount	Size: 1.52" x 0.93" x 1.65"	Get a Quote
WMSAW06D-09-300xBy	Input Voltage: 90~264	Output Voltage: 9	Output Current: 300mA	Output Power (W): 2.7	No. Outputs: S	Case: Wall Mount	Size: 1.52" x 0.93" x 1.65"	Get a Quote
WMSAW06D-24-125xAy	Input Voltage: 90~264	Output Voltage: 24	Output Current: 125mA	Output Power (W): 3	No. Outputs: S	Case: Wall Mount	Size: 1.52" x 0.93" x 1.65"	Get a Quote
WMSAW06D-24-125xBy	Input Voltage: 90~264	Output Voltage: 24	Output Current: 125mA	Output Power (W): 3	No. Outputs: S	Case: Wall Mount	Size: 1.52" x 0.93" x 1.65"	Get a Quote
WMSAW06D-09-670xAy	Input Voltage: 90~264	Output Voltage: 9	Output Current: 670mA	Output Power (W): 4.5	No. Outputs: S	Case: Wall Mount	Size: 1.52" x 0.93" x 1.65"	Get a Quote
WMSAW06D-09-670xBy	Input Voltage: 90~264	Output Voltage: 9	Output Current: 670mA	Output Power (W): 4.5	No. Outputs: S	Case: Wall Mount	Size: 1.52" x 0.93" x 1.65"	Get a Quote
WMSAW06D-05-1000xAy	Input Voltage: 90~264	Output Voltage: 5	Output Current: 1000mA	Output Power (W): 5	No. Outputs: S	Case: Wall Mount	Size: 1.52" x 0.93" x 1.65"	Get a Quote
WMSAW06D-05-1000xBy	Input Voltage: 90~264	Output Voltage: 5	Output Current: 1000mA	Output Power (W): 5	No. Outputs: S	Case: Wall Mount	Size: 1.52" x 0.93" x 1.65"	Get a Quote
WMSAW06D-05-1200xAy	Input Voltage: 90~264	Output Voltage: 5	Output Current: 1200mA	Output Power (W): 6	No. Outputs: S	Case: Wall Mount	Size: 1.52" x 0.93" x 1.65"	Get a Quote
WMSAW06D-12-500xAy	Input Voltage: 90~264	Output Voltage: 12	Output Current: 500mA	Output Power (W): 6	No. Outputs: S	Case: Wall Mount	Size: 1.52" x 0.93" x 1.65"	Get a Quote
WMSAW06D-24-250xAy	Input Voltage: 90~264	Output Voltage: 24	Output Current: 250mA	Output Power (W): 6	No. Outputs: S	Case: Wall Mount	Size: 1.52" x 0.93" x 1.65"	Get a Quote
WMSAW06D-05-1200xBy	Input Voltage: 90~264	Output Voltage: 5	Output Current: 1200mA	Output Power (W): 6	No. Outputs: S	Case: Wall Mount	Size: 1.52" x 0.93" x 1.65"	Get a Quote
WMSAW06D-12-500xBy	Input Voltage: 90~264	Output Voltage: 12	Output Current: 500mA	Output Power (W): 6	No. Outputs: S	Case: Wall Mount	Size: 1.52" x 0.93" x 1.65"	Get a Quote
WMSAW06D-24-250xBy	Input Voltage: 90~264	Output Voltage: 24	Output Current: 250mA	Output Power (W): 6	No. Outputs: S	Case: Wall Mount	Size: 1.52" x 0.93" x 1.65"	Get a Quote

Specification	Value
Input
Input Voltage (Nominal):	115/230
Input Voltage Range:	100~240
Input Frequency:	50~60Hz
Output
Output Voltage:	5, 6, 9, 12, 24
Output Current:	250mA, 500mA, 670mA, 1000mA, 1200mA
Output Power (Watts):	2.5, 4.5, 5, 6
Short Circuit Protection:	2A Inner Current Fuse
General
Environmental
Operating Temperature:	10 to 40°C
Storage Temperature:	-20 to 85°C
Physical
Weight:	5.29oz (150g)
Dimensions:	1.52" x 0.93" x 1.65"
Notes & safety
Notes:	(1) “x” in model number stands for plug type. “x” can either be U for USA plug, or E for EU plug. A or B in the model number stand for either USB or Cable output. A=USB and B=Cable. (2) UL approval for US Plug and USB models CE CB GS Approvals for EU Plug and USB’ Due to advances in technology, specifications are subject to change without notice.
Safety Approvals:	UL/cUL (60950 & UL1310), IEC/EN 62368, FCC
RoHS Compliance:	Yes
Energy Star Compliance:	Level VI
