PSAOC

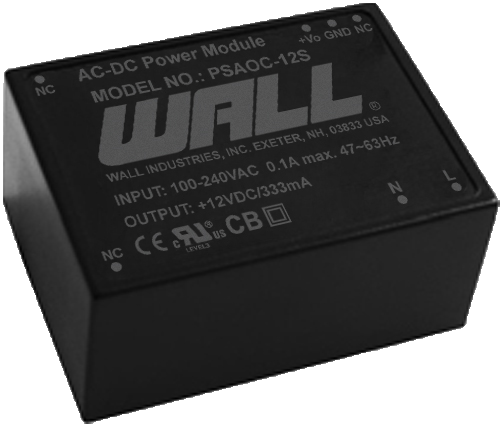

The PSAOC series of AC DC power supplies provides 4 watts of output power in a 1.44” x 1.06” x 0.67” encapsulated PCB mountable package. This series consists of single and dual output models with a universal input range of 90-264VAC (120-370VDC). Some features include low ripple and noise, -40°C to +70°C operating temperature range, and over power, over voltage, and short circuit protection. All models are RoHS compliant and have UL/cUL, CE, and CB safety approvals.
• RoHS Compliant
• Isolation Class II
• Up to 4 Watts Output Power
• Low Ripple and Noise
• Single and Dual Outputs
• UL/cUL, CE, and CB Approvals
• PCB Mountable Switching Power Supply
• Fully Encapsulated Plastic Case
• -40°C to +70°C Operating Temperature Range
• Universal Input Voltage Range: 90-264VAC (120-370VDC)
• Short Circuit, Over Power, and Over Voltage Protection
• < 0.3W No Load Input Power
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |

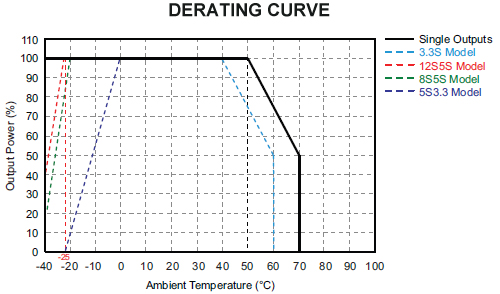

Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSAOC-5S3.3S | Input Voltage: 90~264 | Output Voltage: 5, 3.3 | Output Current: 600mA, 150mA | Output Power (W): 3.5 | No. Outputs: D | Case: PCB Mount | Size: 1.44" x 1.06" x 0.67" | Get a Quote |
| PSAOC-12S5S | Input Voltage: 90~264 | Output Voltage: 12, 5 | Output Current: 250mA, 120mA | Output Power (W): 3.6 | No. Outputs: D | Case: PCB Mount | Size: 1.44" x 1.06" x 0.67" | Get a Quote |
| PSAOC-8S5S | Input Voltage: 90~264 | Output Voltage: 8, 5 | Output Current: 375mA, 120mA | Output Power (W): 3.6 | No. Outputs: D | Case: PCB Mount | Size: 1.44" x 1.06" x 0.67" | Get a Quote |
| PSAOC-12S | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 333 mA | Output Power (W): 4 | No. Outputs: S | Case: PCB Mount | Size: 1.44" x 1.06" x 0.67" | Get a Quote |
| PSAOC-14S | Input Voltage: 90~264 | Output Voltage: 14 | Output Current: 286 mA | Output Power (W): 4 | No. Outputs: S | Case: PCB Mount | Size: 1.44" x 1.06" x 0.67" | Get a Quote |
| PSAOC-15S | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 267 mA | Output Power (W): 4 | No. Outputs: S | Case: PCB Mount | Size: 1.44" x 1.06" x 0.67" | Get a Quote |
| PSAOC-24S | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 167 mA | Output Power (W): 4 | No. Outputs: S | Case: PCB Mount | Size: 1.44" x 1.06" x 0.67" | Get a Quote |
| PSAOC-3.3S | Input Voltage: 90~264 | Output Voltage: 3.3 | Output Current: 1.2 A | Output Power (W): 4 | No. Outputs: S | Case: PCB Mount | Size: 1.44" x 1.06" x 0.67" | Get a Quote |
| PSAOC-5S | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 800 mA | Output Power (W): 4 | No. Outputs: S | Case: PCB Mount | Size: 1.44" x 1.06" x 0.67" | Get a Quote |
| PSAOC-8S | Input Voltage: 90~264 | Output Voltage: 8 | Output Current: 500 mA | Output Power (W): 4 | No. Outputs: S | Case: PCB Mount | Size: 1.44" x 1.06" x 0.67" | Get a Quote |
| PSAOC-9S | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 444 mA | Output Power (W): 4 | No. Outputs: S | Case: PCB Mount | Size: 1.44" x 1.06" x 0.67" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 8, 9, 12, 14, 15, 24 |
| Voltage Accuracy: | ±2% |
| Output Current: | 1200mA, 800mA, 600mA, 150mA, 500mA, 375mA, 120mA, 444mA, 333mA, 250mA, 286mA, 267mA, 167mA |
| Output Power (Watts): | 3.5, 3.6, 3.96, 4 |
| Short Circuit Protection: | hiccup mode, indefinite (auto-recovery) |
| Over Voltage Protection: | Zener Diode Clamp |
| General | |
| Efficiency: | Up to 77% |
| Isolation: | 3000VAC |
| Environmental | |
| Operating Temperature: | -40 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 0.92 oz. |

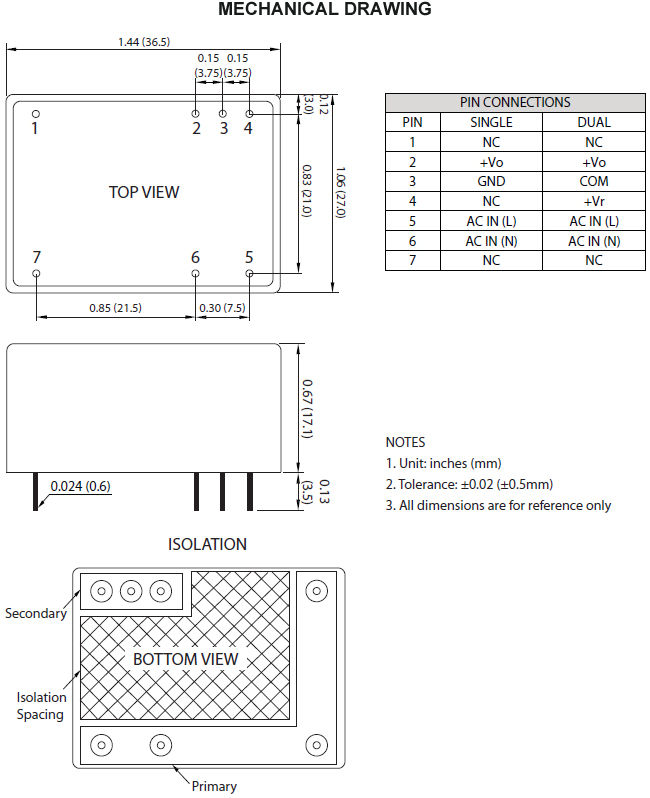

| Dimensions: | 1.44" x 1.06" x 0.67" (36.5 x 27.0 x 17.1 mm) |
| Case Material: | plastic resin with fiberglass |
| Notes & safety | |
| Notes: | 1. Dual output models require a minimum loading on the output to maintain specified regulations. Operation under no-load conditions will not damage these devices; however, they may not meet all listed specifications. 2. Ripple & Noise is measured 20MHz limited bandwidth and with 0.1µF and 47µF capacitors in parallel across the output. 3. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL, CE, CB |
| RoHS Compliance: | Yes |
