PSAHC

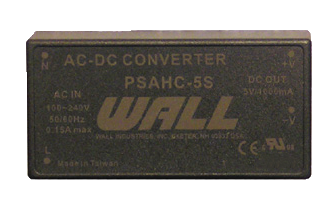

The PSAHC series of AC/DC switching power supplies provides up to 5.5 Watts of output power in a 2.02” x 1.02” x 0.61” encapsulated PCB mountable package. This series consists of single output models with a universal input range of 90-264VAC (120-370VDC). Some features include low ripple and noise, -25°C to +70°C operating temperature range, and over power, over voltage, and short circuit protection. The PSAHC series also has two types of screw terminal mechanical options and an extended operating temperature option available. All models have UL/cUL, CB, and CE safety approvals.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSAHC-3.3S | Input Voltage: 90~264 | Output Voltage: 3.3 | Output Current: 1.25 A | Output Power (W): 4 | No. Outputs: S | Case: PCB Mount | Size: 2.02" x 1.02" x 0.61" | Get a Quote |
| PSAHC-12S | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 420 mA | Output Power (W): 5 | No. Outputs: S | Case: PCB Mount | Size: 2.02" x 1.02" x 0.61" | Get a Quote |
| PSAHC-15S | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 333 mA | Output Power (W): 5 | No. Outputs: S | Case: PCB Mount | Size: 2.02" x 1.02" x 0.61" | Get a Quote |
| PSAHC-5S | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 1A | Output Power (W): 5 | No. Outputs: S | Case: PCB Mount | Size: 2.02" x 1.02" x 0.61" | Get a Quote |
| PSAHC-24S | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 230 mA | Output Power (W): 5.5 | No. Outputs: S | Case: PCB Mount | Size: 2.02" x 1.02" x 0.61" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, 24 |
| Voltage Accuracy: | ±2% |
| Output Current: | 1A, 1.25A, 420mA, 333mA, 230mA |
| Output Power (Watts): | 4, 5, 5.5 |
| Short Circuit Protection: | hiccup mode, automatic recovery |
| Over Voltage Protection: | Zener Diode Clamp |
| General | |
| Efficiency: | Up to 77% |
| Isolation: | 3000VAC |
| Environmental | |

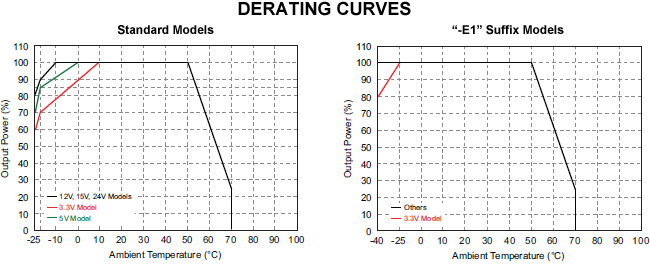

| Operating Temperature: | -25 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 1.06 oz. |

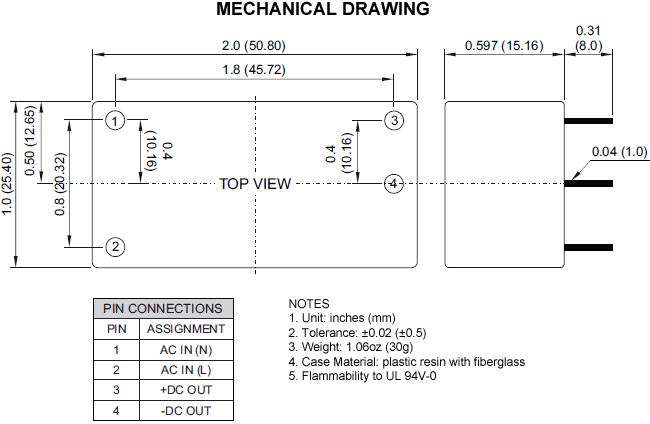

| Dimensions: | 2.02" x 1.02" x 0.61" (51.2 x 25.8 x 15.4 mm) |
| Case Material: | plastic resin with fiberglass |
| Notes & safety | |

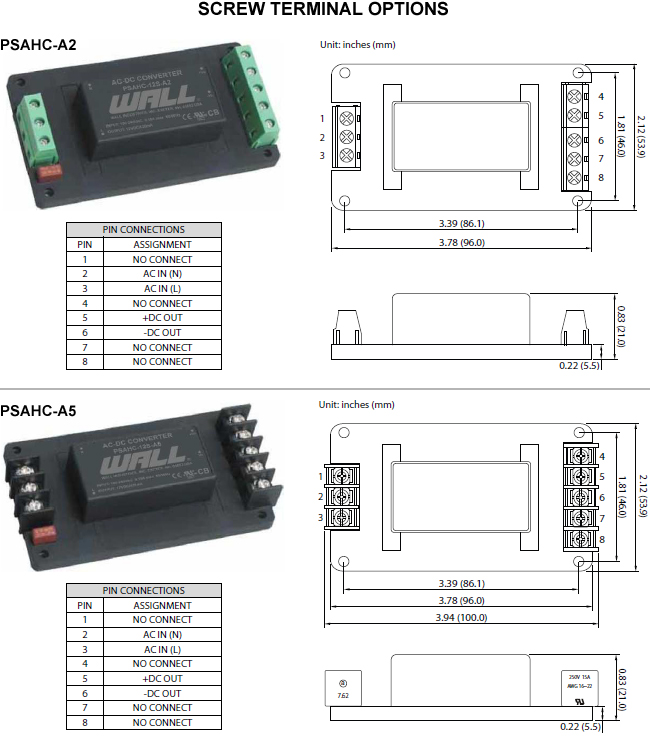

| Notes: | 1. For -40°C to +70°C extended operating temperature range please add the suffix –E1 to the model number (Ex: PSAHC-12S-E1). 2. Screw terminal mechanical options available (see page 4). Please call factory for ordering details. 3. Safety approvals cover frequency 47-63Hz 4. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | CE, UL/cUL, CB |
