PSAYC
The PSAYC series of AC/DC switching power supplies provides 2 watts of output power in a 1.33” x 0.87” x 0.67” encapsulated PCB mountable package. This series consists of single output models with a universal input range of 90-305VAC (120-430VDC). Some features include low ripple and noise, -40°C to +80°C operating temperature range, and over power, over voltage, and short circuit protection. All models are RoHS compliant and have UL/cUL, CE, and CB safety approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSAYC-3.3S | Input Voltage: 90~305 | Output Voltage: 3.3 | Output Current: 600mA | Output Power (W): 2 | No. Outputs: S | Case: PCB Mount | Size: 1.33" x 0.87" x 0.67" | Get a Quote |
| PSAYC-5S | Input Voltage: 90~305 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: PCB Mount | Size: 1.33" x 0.87" x 0.67" | Get a Quote |
| PSAYC-9S | Input Voltage: 90~305 | Output Voltage: 9 | Output Current: 222mA | Output Power (W): 2 | No. Outputs: S | Case: PCB Mount | Size: 1.33" x 0.87" x 0.67" | Get a Quote |
| PSAYC-12S | Input Voltage: 90~305 | Output Voltage: 12 | Output Current: 167mA | Output Power (W): 2 | No. Outputs: S | Case: PCB Mount | Size: 1.33" x 0.87" x 0.67" | Get a Quote |
| PSAYC-15S | Input Voltage: 90~305 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: PCB Mount | Size: 1.33" x 0.87" x 0.67" | Get a Quote |
| PSAYC-24S | Input Voltage: 90~305 | Output Voltage: 24 | Output Current: 83mA | Output Power (W): 2 | No. Outputs: S | Case: PCB Mount | Size: 1.33" x 0.87" x 0.67" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~305 |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, 24 |
| Voltage Accuracy: | ±5% |
| Output Current: | 600mA, 400mA, 222mA, 167mA, 133mA, 83mA |
| Output Power (Watts): | 2 |
| Short Circuit Protection: | Hiccup Mode, Indefinite (Automatic Recovery) |
| Over Voltage Protection: | Zener Diode Clamp |
| General | |
| Efficiency: | Up to 75% |
| Isolation: | 3000VAC |
| Environmental | |

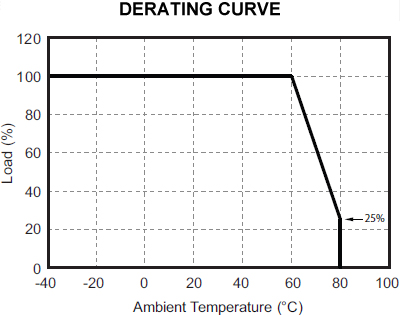

| Operating Temperature: | -40 to 80°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | TBD |

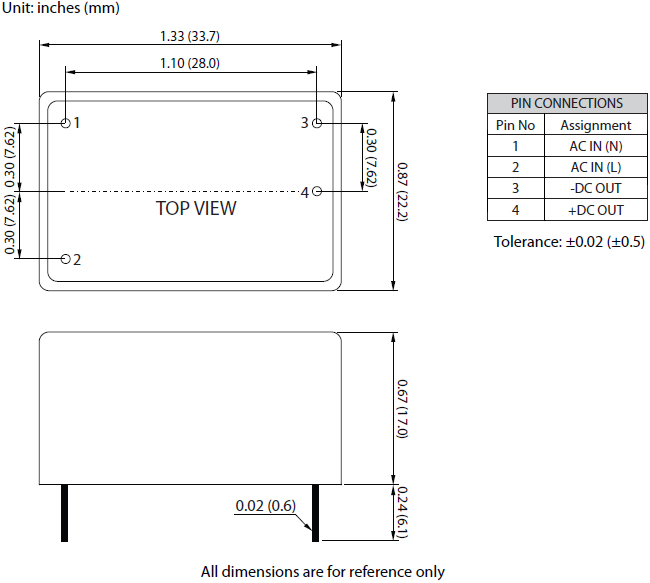

| Dimensions: | 1.33" x 0.87" x 0.67" (33.7 x 22.2 x 17.0 mm) |
| Case Material: | Plastic Resin with Fiberglass |
| Notes & safety | |
| Notes: | (1) Ripple & Noise measured at 20MHz of bandwidth with 0.1uF & 47uF parallel capacitor. (2) Hold-up time measured at 90% Vout. (3) Varistor 14S561K required at L/N input side in parallel. (4) 10R/ 15f thermistor required at L input side in series connection. (5) Please request our PDF file “AC-DC Application Notes” for more details. (6) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL, CE, CB |
| RoHS Compliance: | Yes |
