PSFAA-03

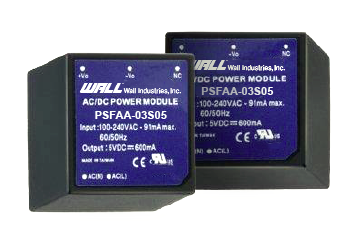

The PSFAA-03 series of AC/DC power modules offers up to 3 watts of output power in a fully encapsulated 1” x 1” x 0.64” plastic case. This series consists of single output models with a universal input of 85~264VAC and no minimum load requirement. Each model in this series has over voltage, over load, and short circuit protection, is RoHS & REACH compliant, and has UL/cUL, IEC/EN 60950-1, and TUV/IEC/EN 60335-1 safety approvals. Please contact factory for order details.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSFAA-03S033 | Input Voltage: 85~264 | Output Voltage: 3.3 | Output Current: 900mA | Output Power (W): 3 | No. Outputs: S | Case: PCB Mount | Size: 1" x 1" x 0.64" | Get a Quote |
| PSFAA-03S05 | Input Voltage: 85~264 | Output Voltage: 5 | Output Current: 600mA | Output Power (W): 3 | No. Outputs: S | Case: PCB Mount | Size: 1" x 1" x 0.64" | Get a Quote |
| PSFAA-03S09 | Input Voltage: 85~264 | Output Voltage: 9 | Output Current: 333mA | Output Power (W): 3 | No. Outputs: S | Case: PCB Mount | Size: 1" x 1" x 0.64" | Get a Quote |
| PSFAA-03S12 | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 250mA | Output Power (W): 3 | No. Outputs: S | Case: PCB Mount | Size: 1" x 1" x 0.64" | Get a Quote |
| PSFAA-03S15 | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 200mA | Output Power (W): 3 | No. Outputs: S | Case: PCB Mount | Size: 1" x 1" x 0.64" | Get a Quote |
| PSFAA-03S24 | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 125mA | Output Power (W): 3 | No. Outputs: S | Case: PCB Mount | Size: 1" x 1" x 0.64" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~264 |
| Input Frequency: | 47 to 63Hz |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, 24 |
| Voltage Accuracy: | ±2.0% |
| Output Current: | 125mA, 200mA, 250mA, 333mA, 600mA, 900mA |
| Output Power (Watts): | 3 |
| Short Circuit Protection: | Hiccup Mode, Automatic Recovery |
| Over Voltage Protection: | 190% of Vo. Max. |
| General | |
| Efficiency: | Up to 78% |
| Isolation: | 3000VAC |
| Environmental | |
| Operating Temperature: | -25 to +70v |
| Storage Temperature: | -40 to +85ºC |
| Physical | |
| Weight: | 0.61oz (17.4g) |

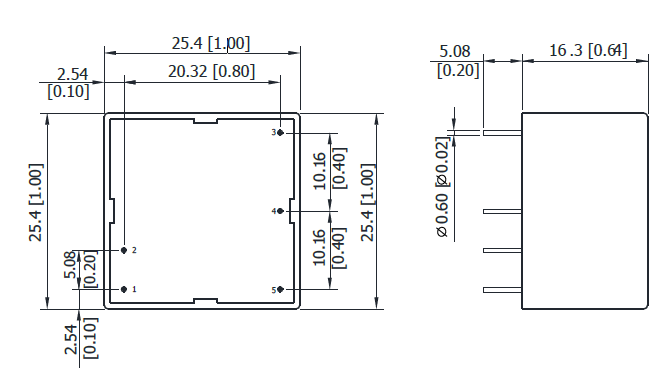

| Dimensions: | 1in x 1in x 0.64in (25.4mm x 25.4mm x 16.3mm) |
| Case Material: | Plastic Resin (Flammability to UL 94V-0 Rated) |
| Notes & safety | |
| Notes: | 1. Peak load lasts <30 seconds with a max duty cycle of 10%. Average output power can’t exceed maximum power. 2. Long term overload condition may cause damage 3. It is recommended to protect the converter by a slow blow fuse in the input supply line. 4. “Natural Convection” is about 20LFM, but it is not equal to still air (0 LFM). 5. Other input and output voltages may be available, please contact factory. 6. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL 60950-1 recognition (UL Certificate), IEC/EN 60950-1 (CB Report), IEC/EN 60335-1 Recognition (CB-Report, TUV certificate) |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV |
