PSMDC060

The PSMDC060 series of AC/DC LED driver power supplies offers up to 70 watts of output power in a 6.69″ x 2.76 x 1.57″ case. This series consists of various output voltages with a 90~305VAC input voltage range. These series are protected against short circuit, over voltage, and over temperature conditions. The PSMDC060 series has an IP65/IP67 aluminum case, waterproof design and is useful in outdoor lighting scenarios. All models have UL/CB/CCC/CE/PSE safety approvals and a 2 year warranty

• Built-In 10KV lightning surge protection (EN6100-4-5) • 90~305VAC Full Range Input • Active PFC • Output Range up to 200VDC • Aluminum Case (IP65/IP67) Waterproof • Dual Mode Over Temperature Thermal Design • Output Voltage Automatic Tracing & Fixing Function • Built-In 3 in 1 Output Current Dimming Function (Type B) • Optional Timer Dimming Function • Class 2 Power Unit/ Passes LPS • Long Lasting Lifetime • UL/CB/CCC/CE/PSE Approvals • Outdoor LED Luminary Rugged Driver Solutions • 2 Year Warranty
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSMDC-060-1750 Input Voltage: 90~305 Output Voltage: 18~35 Output Current: 1750mA Output Power (W): 60 No. Outputs: S Case: LED Driver Get a Quote
PSMDC-060-2280 Input Voltage: 90~305 Output Voltage: 14~27 Output Current: 2280mA Output Power (W): 60 No. Outputs: S Case: LED Driver Get a Quote
PSMDC-060-1400 Input Voltage: 90~305 Output Voltage: 25~49 Output Current: 1400mA Output Power (W): 68 No. Outputs: S Case: LED Driver Get a Quote
PSMDC-060-0350 Input Voltage: 90~305 Output Voltage: 100~200 Output Current: 350mA Output Power (W): 70 No. Outputs: S Case: LED Driver Get a Quote
PSMDC-060-0700 Input Voltage: 90~305 Output Voltage: 50~100 Output Current: 700mA Output Power (W): 70 No. Outputs: S Case: LED Driver Get a Quote
PSMDC-060-1050 Input Voltage: 90~305 Output Voltage: 35~70 Output Current: 1050mA Output Power (W): 70 No. Outputs: S Case: LED Driver Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~305
PFC: 0.98, 0.96, 0.94
Input Frequency: 47-63Hz
Output
Output Voltage: 14~27, 18~35, 25~49, 35~70, 50~100, 100~200
Output Current: 350mA, 700mA, 1050mA, 1400mA, 1750mA, 2280mA
Output Power (Watts): 60, 68, 70
Output Trim/Adjustability: ±5%
Short Circuit Protection: Automatic Recovery or Power Reset
Over Voltage Protection: Power Reset
Thermal Protection: 75 to 95°C
General
Efficiency: Up to 91%
Environmental
Operating Temperature: -40 to 70°C
Storage Temperature: -40 to 85°C
Physical
Weight: 1.61lbs
Dimensions: 6.69" x 2.48" x 1.57"
Notes & safety

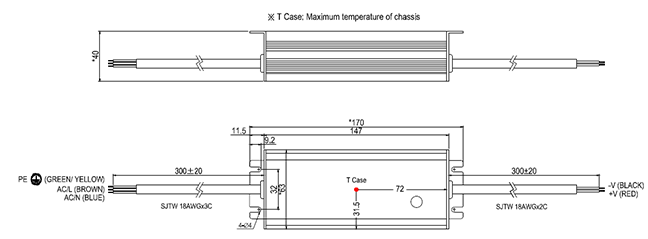

Notes: (1) PSMDC-060-XXX: Type A: IP65 Grade, Output Current Adjustable by Internal Variable Reisitor

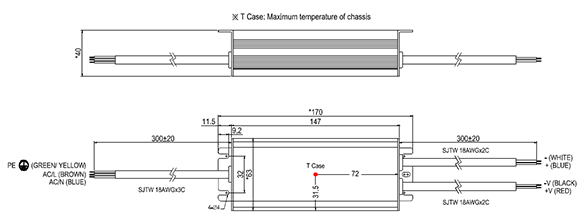

Type B: IP67 Grade, Output Current Dimming by 0~10V/10V PWM signal/resistor
(2) For Input Voltage Range, please refer to “Input Voltage De-Rating Curve” Chart
(3) Ripple current is measured at 20MHz of bandwidth. The measured terminal is paralleled with a 22uF E-cap and a 0.1uF ceramic cap.
(4) For Type A Only
(5) Please refer to “LED Driving Output Mode” Chart
(6) For efficiency test conditions, please refer to “Efficiency Vs Load” Chart
(7) Please refer to “PFC Vs Load Curve” Chart
(8) Please refer to “Temperature De-Rating Curve” Chart
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: EN 55015, EN 61000-3-2, EN61000-3-3, FCC Part18, CNS 14115, GB 17743
