WMGPSU06

The WMGPSU06 series of AC/DC wall mount power supplies offers up to 6 watts of output power in a compact package. Single outputs are available for this series with an input range of 100 to 240VAC, 50 to 60Hz. Five different plug types are available in this series: American plug type, European plug type, 3-pin and 2-pin Australian plug types, and UK plug type. The series is protected against short circuit, over voltage, and over current conditions and is Efficiency Level VI compliant (models 5V and over). This series offers high efficiency and reliability and optional output connectors are available. Please call factory for ordering details.

• Universal Input Voltage Range of 100~240VAC • Meets Efficiency Level VI • Passes LPS • Single Outputs • Optional Output Connectors Available • Compact Package • High Efficiency and Reliability • Compact Package • UL60950-1, CSA C22.2, EN60950-1, and IEC60950-1 Safety Approvals • Over Voltage, Over Current, and Short Circuit Protection • US, EU, 3-Pin Australian, 2-Pin Australian, or UK Plugs Available
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
WMGPSU06U-1 Input Voltage: 100~240 Output Voltage: 5~6 Output Current: 1~0.80A Output Power (W): 5 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06E-1 Input Voltage: 100~240 Output Voltage: 5~6 Output Current: 1~0.80A Output Power (W): 5 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06S-1 Input Voltage: 100~240 Output Voltage: 5~6 Output Current: 1~0.80A Output Power (W): 5 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06SA-1 Input Voltage: 100~240 Output Voltage: 5~6 Output Current: 1~0.80A Output Power (W): 5 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06BS-1 Input Voltage: 100~240 Output Voltage: 5~6 Output Current: 1~0.80A Output Power (W): 5 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06U-1-1 Input Voltage: 100~240 Output Voltage: 6~8 Output Current: 1~0.75A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06E-1-1 Input Voltage: 100~240 Output Voltage: 6~8 Output Current: 1~0.75A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06S-1-1 Input Voltage: 100~240 Output Voltage: 6~8 Output Current: 1~0.75A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPS06SA-1-1 Input Voltage: 100~240 Output Voltage: 6~8 Output Current: 1~0.75A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPS06BS-1-1 Input Voltage: 100~240 Output Voltage: 6~8 Output Current: 1~0.75A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06U-2 Input Voltage: 100~240 Output Voltage: 8~11 Output Current: 0.75~0.54A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06E-2 Input Voltage: 100~240 Output Voltage: 8~11 Output Current: 0.75~0.54A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06S-2 Input Voltage: 100~240 Output Voltage: 8~11 Output Current: 0.75~0.54A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06SA-2 Input Voltage: 100~240 Output Voltage: 8~11 Output Current: 0.75~0.54A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPS06BS-2 Input Voltage: 100~240 Output Voltage: 8~11 Output Current: 0.75~0.54A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06U-3 Input Voltage: 100~240 Output Voltage: 11~13 Output Current: 0.54~0.46A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06E-3 Input Voltage: 100~240 Output Voltage: 11~13 Output Current: 0.54~0.46A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06S-3 Input Voltage: 100~240 Output Voltage: 11~13 Output Current: 0.54~0.46A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06SA-3 Input Voltage: 100~240 Output Voltage: 11~13 Output Current: 0.54~0.46A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06BS-3 Input Voltage: 100~240 Output Voltage: 11~13 Output Current: 0.54~0.46A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06U-4 Input Voltage: 100~240 Output Voltage: 13~16 Output Current: 0.46~0.37A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06E-4 Input Voltage: 100~240 Output Voltage: 13~16 Output Current: 0.46~0.37A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06S-4 Input Voltage: 100~240 Output Voltage: 13~16 Output Current: 0.46~0.37A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06SA-4 Input Voltage: 100~240 Output Voltage: 13~16 Output Current: 0.46~0.37A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06BS-4 Input Voltage: 100~240 Output Voltage: 13~16 Output Current: 0.46~0.37A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06U-5 Input Voltage: 100~240 Output Voltage: 16~21 Output Current: 0.37~0.28A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06E-5 Input Voltage: 100~240 Output Voltage: 16~21 Output Current: 0.37~0.28A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06S-5 Input Voltage: 100~240 Output Voltage: 16~21 Output Current: 0.37~0.28A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06SA-5 Input Voltage: 100~240 Output Voltage: 16~21 Output Current: 0.37~0.28A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06BS-5 Input Voltage: 100~240 Output Voltage: 16~21 Output Current: 0.37~0.28A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06U-6 Input Voltage: 100~240 Output Voltage: 21~27 Output Current: 0.28~0.20A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06E-6 Input Voltage: 100~240 Output Voltage: 21~27 Output Current: 0.28~0.20A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06S-6 Input Voltage: 100~240 Output Voltage: 21~27 Output Current: 0.28~0.20A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06SA-6 Input Voltage: 100~240 Output Voltage: 21~27 Output Current: 0.28~0.20A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06BS-6 Input Voltage: 100~240 Output Voltage: 21~27 Output Current: 0.28~0.20A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06U-7 Input Voltage: 100~240 Output Voltage: 27~33 Output Current: 0.20~0.18A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06E-7 Input Voltage: 100~240 Output Voltage: 27~33 Output Current: 0.20~0.18A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06S-7 Input Voltage: 100~240 Output Voltage: 27~33 Output Current: 0.20~0.18A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06SA-7 Input Voltage: 100~240 Output Voltage: 27~33 Output Current: 0.20~0.18A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06BS-7 Input Voltage: 100~240 Output Voltage: 27~33 Output Current: 0.20~0.18A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06U-8 Input Voltage: 100~240 Output Voltage: 33~48 Output Current: 0.18~0.12A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06E-8 Input Voltage: 100~240 Output Voltage: 33~48 Output Current: 0.18~0.12A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06S-8 Input Voltage: 100~240 Output Voltage: 33~48 Output Current: 0.18~0.12A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06SA-8 Input Voltage: 100~240 Output Voltage: 33~48 Output Current: 0.18~0.12A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
WMGPSU06BS-8 Input Voltage: 100~240 Output Voltage: 33~48 Output Current: 0.18~0.12A Output Power (W): 6 No. Outputs: S Case: Wall Mount Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 100~240
Input Frequency: 50~60Hz
Output
Output Voltage: 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~48
Output Current: 1~0.80A, 1.00~0.75A, 0.75~0.54A, 0.54~0.46A, 0.46~0.37A, 0.37~0.28A, 0.28~0.20A, 0.20~0.18A, 0.18~0.12A
Output Power (Watts): 5, 6
Short Circuit Protection: Hiccup Mode, Automatic Recovery
Over Voltage Protection: Protected by Zener Diode
General
Efficiency: Up to 75%
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -40 to 85°C
Physical
Weight: 2.47~3.53oz (70~100g)

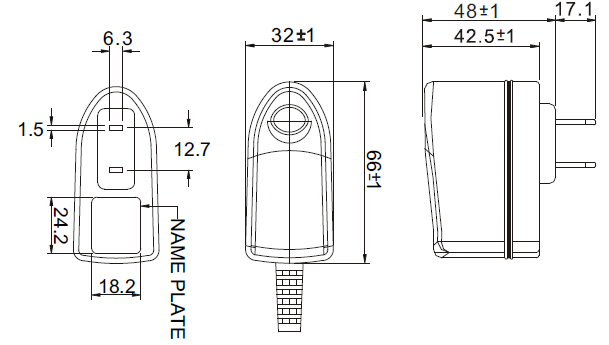

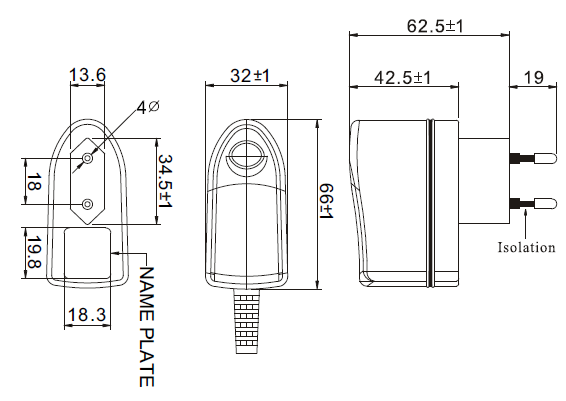

Dimensions: U Type and E Type Models: 2.6" x 1.26" x 1.67"

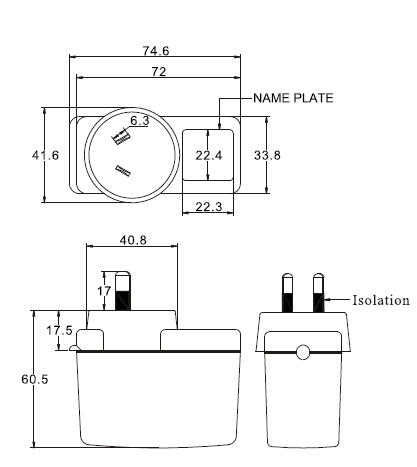

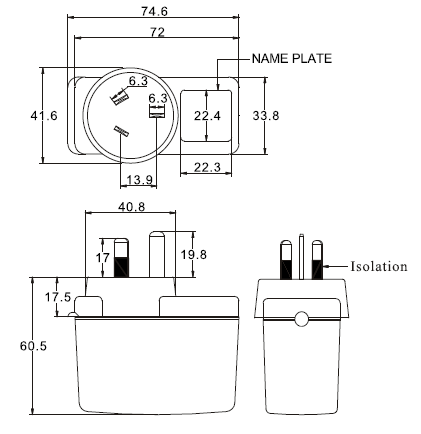

S Type and SA Type Models: 2.94" x 1.46" x 1.69"

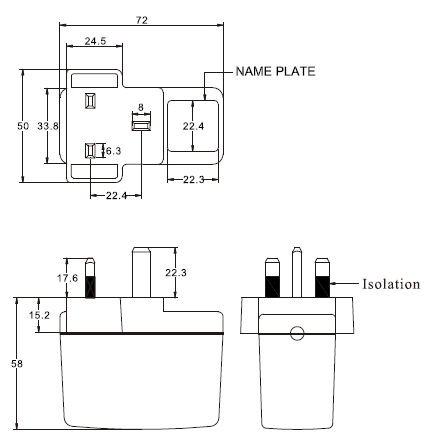

BS Type Models: 2.83" x 1.97" x 1.69"
Notes & safety
Notes: (1) “x” in model name indicates the plug type. “U”= U type=American Plug, “E”= E Type=European plug, “S”= S Type= 3-Pin Australian plug, “SA”= SA Type= 2-Pin Australian type, and “BS”= UK type, UK Plug.
(2) Average Efficiency at 25, 50, 75, and 100% load
(3) Standard Series: Rated output current >110% for primary-referenced direct drive (Constant current series: Rated output current 80~200% for secondary-reference direct drive)
(4) Optional Output Connectors are available, please call factory for ordering details
(5) Standard Output Cable:
5~11V: UL1185, 18AWG, 4FT
11~48V: UL2468, 24AWG, 6FT
Due to advances in technology, specifications are subject to change without notice.
Safety Approvals: UL60950-1; CSA C22.2, EN60950-1, IEC60950-1
Energy Star Compliance: Level VI
