PSLSU60
The PSLSU60 series of AC/DC LED switching power supplies provides a maximum power rating of 60W, with constant current ratings ranging from 0.84~5.45A and constant voltage ranging from 11~58VDC. These supplies have a 90-305VAC input voltage range, active PFC, an internal EMI filter, and high efficiency up to 90%. These supplies are housed in a 6.61” x 1.67” x 1.22” enclosure, rated to IP67 waterproof standards, which makes them suitable for harsh environments in industrial or commercial outdoor lighting applications. This series is RoHS compliant and has over voltage, over current, and over temperature protection.
• Class I
• RoHS Compliant
• IP67 Rated
• C.C. Mode and C.V. Mode
• Constant Current: 0.84~5.45A
• Constant Voltage: 11~58VDC
• Active Power Factor Correction
• 60 Watts Maximum Output Power
• Wide Input Voltage Range: 90~305VAC, 47~63Hz
• Internal EMI Filter
• Over Voltage, Over Current, & Over Temp. Protection
• Up to 90% High Efficiency
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSLSU60-105-11V | Input Voltage: 90~305 | Output Voltage: 11 | Output Current: 0 ~ 5.45 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-105-12V | Input Voltage: 90~305 | Output Voltage: 12 | Output Current: 0 ~ 5.00 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-105-13V | Input Voltage: 90~305 | Output Voltage: 13 | Output Current: 0 ~ 4.61 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-107-16V | Input Voltage: 90~305 | Output Voltage: 16 | Output Current: 0 ~ 3.75 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-107-17V | Input Voltage: 90~305 | Output Voltage: 17 | Output Current: 0 ~ 3.52 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-107-18V | Input Voltage: 90~305 | Output Voltage: 18 | Output Current: 0 ~ 3.33 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-107-19V | Input Voltage: 90~305 | Output Voltage: 19 | Output Current: 0 ~ 3.15 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-107-20V | Input Voltage: 90~305 | Output Voltage: 20 | Output Current: 0 ~ 3.00 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-107-21V | Input Voltage: 90~305 | Output Voltage: 21 | Output Current: 0 ~ 2.85 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-108-21V | Input Voltage: 90~305 | Output Voltage: 21 | Output Current: 0 ~ 2.85 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-108-22V | Input Voltage: 90~305 | Output Voltage: 22 | Output Current: 0 ~ 2.72 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-108-23V | Input Voltage: 90~305 | Output Voltage: 23 | Output Current: 0 ~ 2.60 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-108-24V | Input Voltage: 90~305 | Output Voltage: 24 | Output Current: 0 ~ 2.50 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-108-25V | Input Voltage: 90~305 | Output Voltage: 25 | Output Current: 0 ~ 2.40 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-108-26V | Input Voltage: 90~305 | Output Voltage: 26 | Output Current: 0 ~ 2.30 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-108-27V | Input Voltage: 90~305 | Output Voltage: 27 | Output Current: 0 ~ 2.22 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-111-40V | Input Voltage: 90~305 | Output Voltage: 40 | Output Current: 0 ~ 1.50 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-111-41V | Input Voltage: 90~305 | Output Voltage: 41 | Output Current: 0 ~ 1.46 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-111-42V | Input Voltage: 90~305 | Output Voltage: 42 | Output Current: 0 ~ 1.42 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-111-43V | Input Voltage: 90~305 | Output Voltage: 43 | Output Current: 0 ~ 1.39 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-111-44V | Input Voltage: 90~305 | Output Voltage: 44 | Output Current: 0 ~ 1.36 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-111-45V | Input Voltage: 90~305 | Output Voltage: 45 | Output Current: 0 ~ 1.33 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-111-46V | Input Voltage: 90~305 | Output Voltage: 46 | Output Current: 0 ~ 1.30 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-111-47V | Input Voltage: 90~305 | Output Voltage: 47 | Output Current: 0 ~ 1.27 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-111-48V | Input Voltage: 90~305 | Output Voltage: 48 | Output Current: 0 ~ 1.25 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-111-49V | Input Voltage: 90~305 | Output Voltage: 49 | Output Current: 0 ~ 1.22 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-111-50V | Input Voltage: 90~305 | Output Voltage: 50 | Output Current: 0 ~ 1.20 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-112-50V | Input Voltage: 90~305 | Output Voltage: 50 | Output Current: 0 ~ 1.20 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-112-51V | Input Voltage: 90~305 | Output Voltage: 51 | Output Current: 0 ~ 1.17 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-112-52V | Input Voltage: 90~305 | Output Voltage: 52 | Output Current: 0 ~ 1.15 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-112-53V | Input Voltage: 90~305 | Output Voltage: 53 | Output Current: 0 ~ 1.13 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-112-54V | Input Voltage: 90~305 | Output Voltage: 54 | Output Current: 0 ~ 1.11 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-112-55V | Input Voltage: 90~305 | Output Voltage: 55 | Output Current: 0 ~ 1.09 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-112-56V | Input Voltage: 90~305 | Output Voltage: 56 | Output Current: 0 ~ 1.07 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-112-57V | Input Voltage: 90~305 | Output Voltage: 57 | Output Current: 0 ~ 1.05 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| PSLSU60-112-58V | Input Voltage: 90~305 | Output Voltage: 58 | Output Current: 0 ~ 1.03 A | Output Power (W): 60 | No. Outputs: S | Case: LED | Size: 6.61" x 1.67" x 1.22" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~305 |
| PFC: | 0.90~1.0 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 11, 12, 13, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58 |
| Output Current: | 0~5.45A, 0~5.00A, 0~4.61A, 0~3.75A, 0~3.52A, 0~3.33A, 0~3.15A, 0~3.00A, 0~2.85A, 0~2.72A, 0~2.60A, 0~2.50A, 0~2.40A, 0~2.30A, 0~2.22A, 0~1.50A, 0~1.46A, 0~0.42A, 0~1.39A, 0~1.36A, 0~1.33A, 0~1.30A, 0~1.27A, 0~1.25A, 0~1.22A, 0~1.20, 0~1.17A, 0~1.15A, 0~1.13A, 0~1.11A, 0~1.09A, 0~1.07A, 0~1.05A, 0~1.03A |
| Output Power (Watts): | 60 |
| Over Voltage Protection: | 103-105% |
| Thermal Protection: | Optional |
| General | |
| Efficiency: | 84-90% |
| Isolation: | 4242VDC |
| Environmental | |
| Operating Temperature: | -20 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 1.17~1.32 lbs (530~600g) |

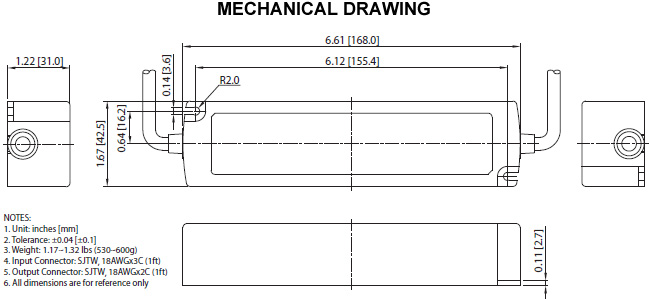

| Dimensions: | 6.61" x 1.67" x 1.22" (168.0 x 42.5 x 31.0 mm) |
| Case Material: | Plastic |
| Notes & safety | |
| Notes: | 1. For constant current (C.C.) models, the output voltage range is from Vo to Vox0.6 for each model. 2. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL8750: 1st edition |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV EN/IEC61347-1:2008, EN/IEC61347-2-13:2006 |
