PSLSF01
The PSLSF01 series of AC/DC converters offers 1 watt of output power in a compact SIP package. This series consists of single output models with a wide input voltage range of 85-305VAC/70-430VDC. Each model in this series has high efficiency, low power consumption, over current and short circuit protection, as well as the option for 90º bent pins. This series has IEC60950, EN60950 and UL60950 safety approvals and is RoHS compliant. See PSLS01 series for straight pin packages.
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSLSF01-15B05 | Input Voltage: 85~305 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 1.38" x 0.71" x 0.43" | Get a Quote |
| PSLSF01-15B09 | Input Voltage: 85~305 | Output Voltage: 9 | Output Current: 111mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 1.38" x 0.71" x 0.43" | Get a Quote |
| PSLSF01-15B12 | Input Voltage: 85~305 | Output Voltage: 12 | Output Current: 83mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 1.38" x 0.71" x 0.43" | Get a Quote |
| PSLSF01-15B15 | Input Voltage: 85~305 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 1.38" x 0.71" x 0.43" | Get a Quote |
| PSLSF01-15B24 | Input Voltage: 85~305 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 1.38" x 0.71" x 0.43" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/277 |
| Input Voltage Range: | 85-305 |
| Input Frequency: | 47~63 |
| Output | |
| Output Voltage: | 5, 9, 12, 15, 24 |
| Voltage Accuracy: | 5V Model: ±8% All Others: ±5% |
| Output Current: | 42mA, 67mA, 83mA, 111mA, 200mA |
| Output Power (Watts): | 1 |
| Short Circuit Protection: | Continuous, Self-Recovery |
| General | |
| Efficiency: | Up to 70% |
| Isolation: | 3000VAC |
| Environmental | |
| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -40 to 105°C |
| Physical | |
| Weight: | 0.21oz (6g) |

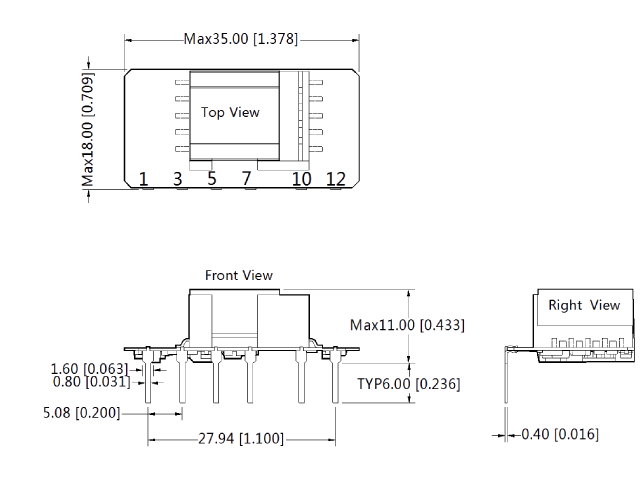

| Dimensions: | 1.38in x 0.71in x 0.43in (35mm x 18mm x 11mm) |
| Notes & safety | |
| Notes: | 1. Ripple and noise are measured by “parallel cable” method. 2. External electrolytic capacitors are required to modules, for more info refer to typical applications 3. In order to increase conversion efficiency of the product with light load in the design, product will have audio noise when it is operating, but will not affect the product’s reliability and performance 4. Module required dispensing fixed after assembled. 5. This part is open frame, at least 6.4mm safety distance between primary and secondary external components of module is needed to meet safety requirements. 6. Product customization is available. 7. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC60950, EN60950, UL60950 |
| RoHS Compliance: | Yes |
