PSLS05

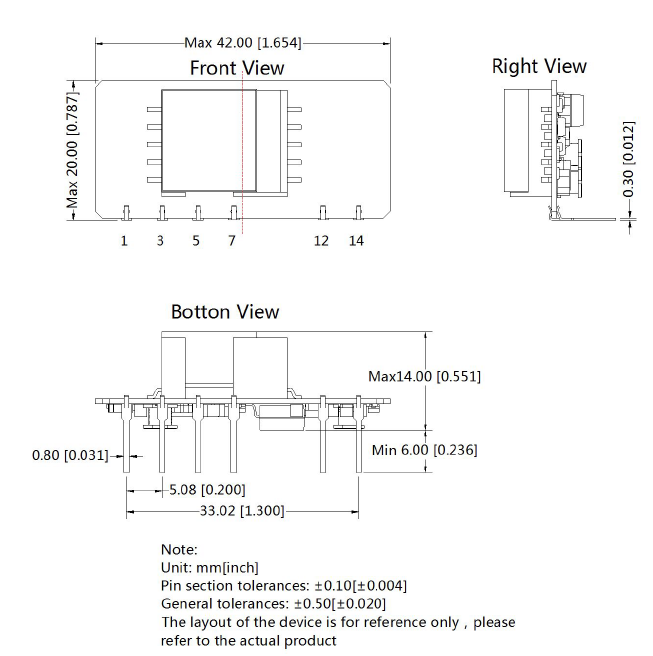

The PSLS05 series of AC/DC converters offers up to 5 watts of output power in an ultra slim SIP package. This series consists of single output models with a wide input voltage range of 85~305VAC/100~430VDC. Each model in this series is industrial grade, has high efficiency and has I/O isolation up to 4000VAC. This series also has IEC62368, UL62368, and EN62368 safety approvals and is RoHS compliant. See PSLSF05 series for 90 degree bent pin options.
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSLS05-15B03SS | Input Voltage: 85~305 | Output Voltage: 3.3 | Output Current: 1A | Output Power (W): 3.3 | No. Outputs: S | Case: Through Hole | Size: 1.58" x 0.73" x 0.54" | Get a Quote |
| PSLS05-15B05SS | Input Voltage: 85~305 | Output Voltage: 5 | Output Current: 1A | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1.58" x 0.73" x 0.54" | Get a Quote |
| PSLS05-15B09SS | Input Voltage: 85~305 | Output Voltage: 9 | Output Current: 0.56A | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1.58" x 0.73" x 0.54" | Get a Quote |
| PSLS05-15B12SS | Input Voltage: 85~305 | Output Voltage: 12 | Output Current: 0.42A | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1.58" x 0.73" x 0.54" | Get a Quote |
| PSLS05-15B15SS | Input Voltage: 85~305 | Output Voltage: 15 | Output Current: 0.34A | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1.58" x 0.73" x 0.54" | Get a Quote |
| PSLS05-15B24SS | Input Voltage: 85~305 | Output Voltage: 24 | Output Current: 0.21A | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1.58" x 0.73" x 0.54" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~305 |
| Input Frequency: | 47 to 63Hz |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, 24 |
| Voltage Accuracy: | 3.3V Models: ±3% Max. Other Models: ±2% Max. |
| Output Current: | 0.21A, 0.34A, 0.42A, 0.56A, 1A |
| Output Power (Watts): | 3.3, 5 |
| Short Circuit Protection: | Continuous, Self-Recovery |
| Over Voltage Protection: | 3.3V/5V Output: ≤7.5V 9V Output: ≤15V 12/15V Output: ≤20V 24V Output: ≤30V |
| General | |
| Efficiency: | Up to 79% |
| Isolation: | 4000VAC |
| Environmental | |
| Operating Temperature: | -40 to +85ºC |
| Storage Temperature: | -40 to +105ºC |
| Physical | |
| Weight: | 0.25oz (7g) |

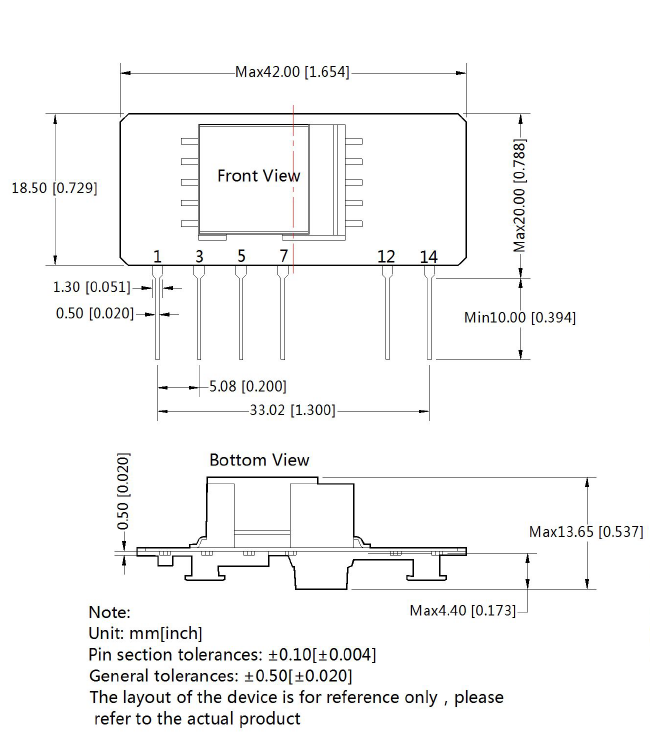

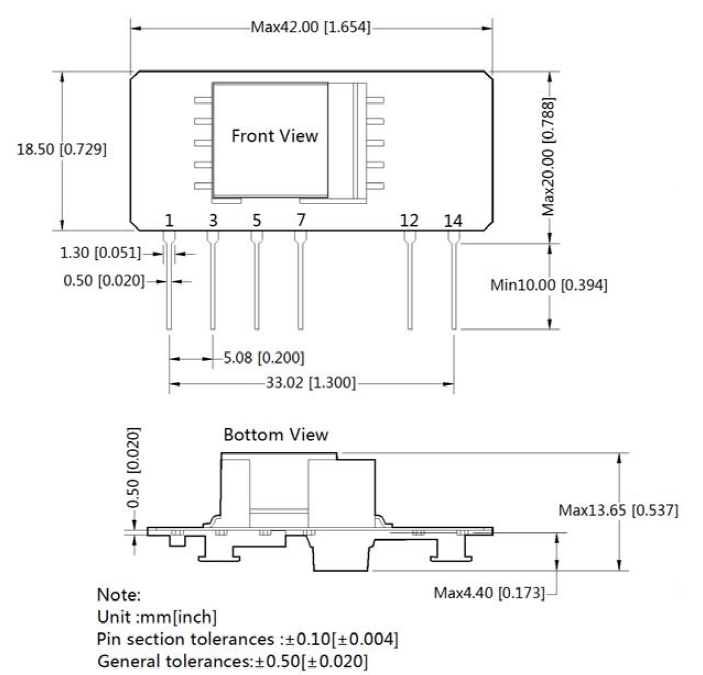

| Dimensions: | 1.58in x 0.73in x 0.54in (40mm x 18.50mm x 12.8mm) |
| Notes & safety | |
| Notes: | 1. The “parallel cable” method is used for ripple and noise test. Contact factory for more information. 2. This product is Listed to applicable standards and requirements by UL. 3. Module required dispensing fixed after assembled. 4. This part is open frame, at least 6.4mm safety distance between the primary and secondary external components of the module is needed to meet the safety requirements. 5. Customization is available. 6. Our products should be classified according to ISO14001 and related environmental laws and regulations and should be handled by qualified units. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC62368, EN62368, UL62368 |
| RoHS Compliance: | Yes |
