PSLS03

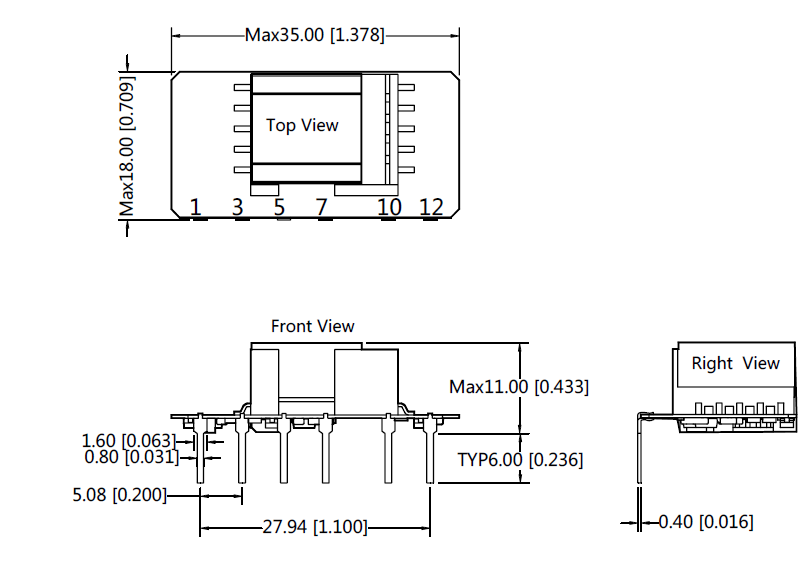

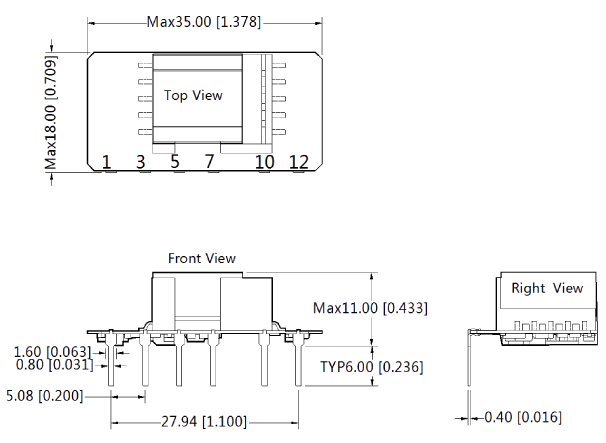

This PSLS03 series of AC/DC converters offers up to 3 watts of output power in a 1.38” x 0.65” x 0.43” SIP model. This series consists of single output models with an ultra-wide input voltage range of 85-305VAC. Each model in this series has low power consumption, high efficiency and high power density, as well as over current and short circuit protection. This series has IEC60950, EN60950, UL60950, UL, CE, and CB approvals. See PSLSF03 for 90 degree bent pin models.

• Ultra Wide Input Voltage Range of 85~305VAC/70~430VDC • Low Power Consumption, Green Power • High Efficiency & High Power Density • Flexible Design of Peripheral Circuit Reduces Layout Problems • RoHS Compliant • Over Current and Short Circuit Protection • Industrial Grade • See PSLSF03 for 90 Degree Bent Pin Models • IEC60950, EN60950, UL60950, UL, CE, and CB Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
PSLS03-15B03S Input Voltage: 85~305 Output Voltage: 3.3 Output Current: 600mA Output Power (W): 1.98 No. Outputs: S Case: Through Hole Size: 1.38" x 0.65" x 0.43" Get a Quote
PSLS03-15B05S Input Voltage: 85~305 Output Voltage: 5 Output Current: 600mA Output Power (W): 3 No. Outputs: S Case: Through Hole Size: 1.38" x 0.65" x 0.43" Get a Quote
PSLS03-15B09S Input Voltage: 85~305 Output Voltage: 9 Output Current: 333mA Output Power (W): 3 No. Outputs: S Case: Through Hole Size: 1.38" x 0.65" x 0.43" Get a Quote
PSLS03-15B12S Input Voltage: 85~305 Output Voltage: 12 Output Current: 250mA Output Power (W): 3 No. Outputs: S Case: Through Hole Size: 1.38" x 0.65" x 0.43" Get a Quote
PSLS03-15B15S Input Voltage: 85~305 Output Voltage: 15 Output Current: 200mA Output Power (W): 3 No. Outputs: S Case: Through Hole Size: 1.38" x 0.65" x 0.43" Get a Quote
PSLS03-15B24S Input Voltage: 85~305 Output Voltage: 24 Output Current: 125mA Output Power (W): 3 No. Outputs: S Case: Through Hole Size: 1.38" x 0.65" x 0.43" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 85~305
Input Frequency: 47 to 63Hz
Output
Output Voltage: 3.3, 5, 9, 12, 15, 24
Voltage Accuracy: 3.3V Models: ±6% 5-24V Models: ±5%
Output Current: 125mA, 200mA, 250mA, 333mA, 600mA
Output Power (Watts): 1.98, 3
Short Circuit Protection: Continuous, Self-Recovery
General
Efficiency: Up to 77%
Isolation: 3000VAC
Environmental
Operating Temperature: -40 to +85ºC
Storage Temperature: -40 to +105ºC
Physical
Weight: 0.21oz (6g)

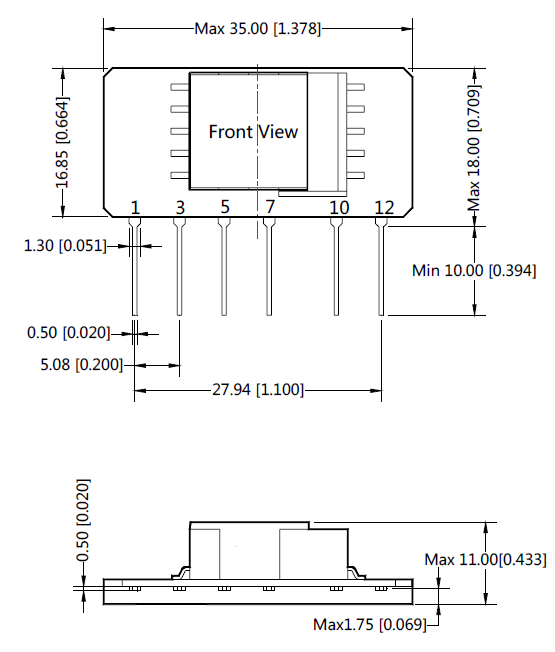

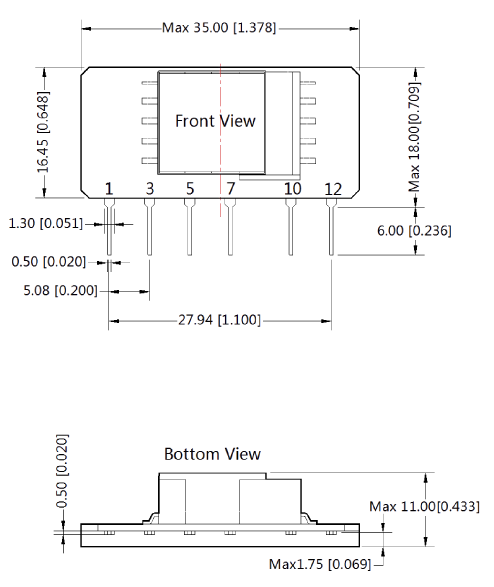

Dimensions: 1.38in x 0.65in x 0.43in (35mm x 16.45mm x 11mm)
Notes & safety
Notes: 1. Used solid-state 270µF/16V for output filter capacitor C2 when operating 3.3V/5V/9V/12V models, especially at temperatures in -20-40ºC range.
2. Ripple & Noise measured by “parallel cable” method.
3. External electrolytic capacitors are required to use modules.
4. This part is open frame, at least 6.4mm safety distance between the primary and secondary external components of the module is needed to meet safety requirement.
5. In order to increase the conversion efficiency of the product with light load in the design, the product will have audio noise when it is operating, but it will not affect the product’s reliability and performance.
6. Module requires dispensing fixed after assembly.
7. Product customization available.
8. Products should be classified according to ISO14001 and related environmental laws and regulations and should be handled by qualified units.
9. This product is only suitable for safe use in areas under 2000m above sea level.
10. This product is Listed to applicable standards and requirements by UL.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: IEC60950, EN60950, UL60950
