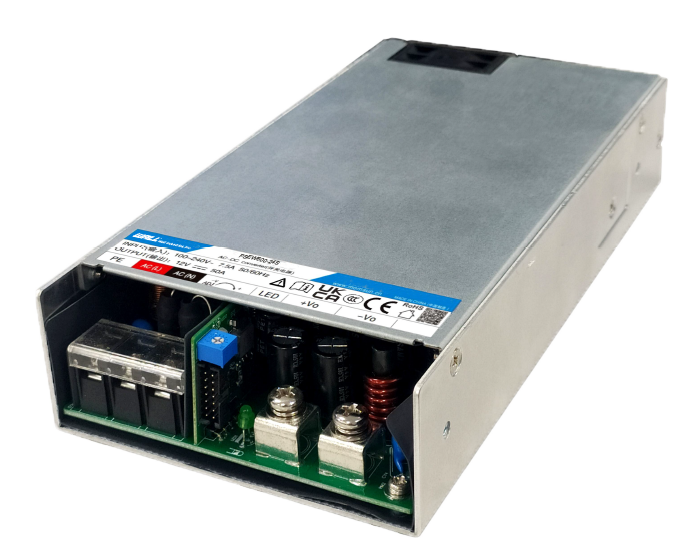

PSEW600
The PSEW600 series of AC/DC switching power supplies offers 600 watts of output power in an enclosed 8” x 4” x 1.6” package. This series consists of single output models with an input voltage range of 80~277VAC or 110~390VAC as this series accepts AC or DC input. Each model features active PFC function, low standby power consumption, remote sense compensation, and remote ON/OFF. This series has short circuit, over current, over voltage, and over temperature protection, is RoHS compliant, and has safety according to IEC62368, EN60335, and EN61558.
• Universal 80-277VAC or 110~390VDC Input Voltage Range
• Accepts AC or DC Input (Dual-Use of Same Terminal)
• Low Standby Power Consumption
• High Efficiency
• Remote Sense Compensation
• Remote ON/OFF Function
• DC_OK Function
• Active PFC
• Output Short Circuit, Over Current, Over Voltage, and Over Temperature Protection
• Base Plate Conformal Coating
• High I/O Isolation Test Voltage Up to 4000VAC
• 5V/1A Standby Power
• Safety According to IEC62368, EN60335, and EN61558
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSEW600-12S | Input Voltage: 80~277 | Output Voltage: 12 | Output Current: 50A | Output Power (W): 600 | No. Outputs: S | Case: Enclosed Case | Size: 8" x 4" x 1.6" | Get a Quote |
| PSEW600-15S | Input Voltage: 80~277 | Output Voltage: 15 | Output Current: 40A | Output Power (W): 600 | No. Outputs: S | Case: Enclosed Case | Size: 8" x 4" x 1.6" | Get a Quote |
| PSEW600-24S | Input Voltage: 80~277 | Output Voltage: 24 | Output Current: 25A | Output Power (W): 600 | No. Outputs: S | Case: Enclosed Case | Size: 8" x 4" x 1.6" | Get a Quote |
| PSEW600-27S | Input Voltage: 80~277 | Output Voltage: 27 | Output Current: 22.3A | Output Power (W): 600 | No. Outputs: S | Case: Enclosed Case | Size: 8" x 4" x 1.6" | Get a Quote |
| PSEW600-36S | Input Voltage: 80~277 | Output Voltage: 36 | Output Current: 16.7A | Output Power (W): 600 | No. Outputs: S | Case: Enclosed Case | Size: 8" x 4" x 1.6" | Get a Quote |
| PSEW600-48S | Input Voltage: 80~277 | Output Voltage: 48 | Output Current: 12.6A | Output Power (W): 600 | No. Outputs: S | Case: Enclosed Case | Size: 8" x 4" x 1.6" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 80-277 |
| PFC: | 115VAC: 0.99 230VAC: 0.99 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 12, 15, 24, 27, 36, 48 |
| Voltage Accuracy: | 12V/15V/24V/27V/36V/48V: ±1% 5V Standby: ±2% |
| Output Current: | 12.6A, 16.7A, 22.3A, 25A, 40A, 50A |
| Output Power (Watts): | 600 |
| Short Circuit Protection: | Hiccup Mode, Constant current works 1s turn off 10s, continuous, self-recovery |
| Over Voltage Protection: | See Data Sheet |
| Thermal Protection: | Output voltage turn-off, self-recovery after temperature drops |
| General | |
| Efficiency: | Up to 94% |
| Isolation: | Up to 4000VAC |
| Environmental | |
| Operating Temperature: | -40 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 2.09lbs (950g) |

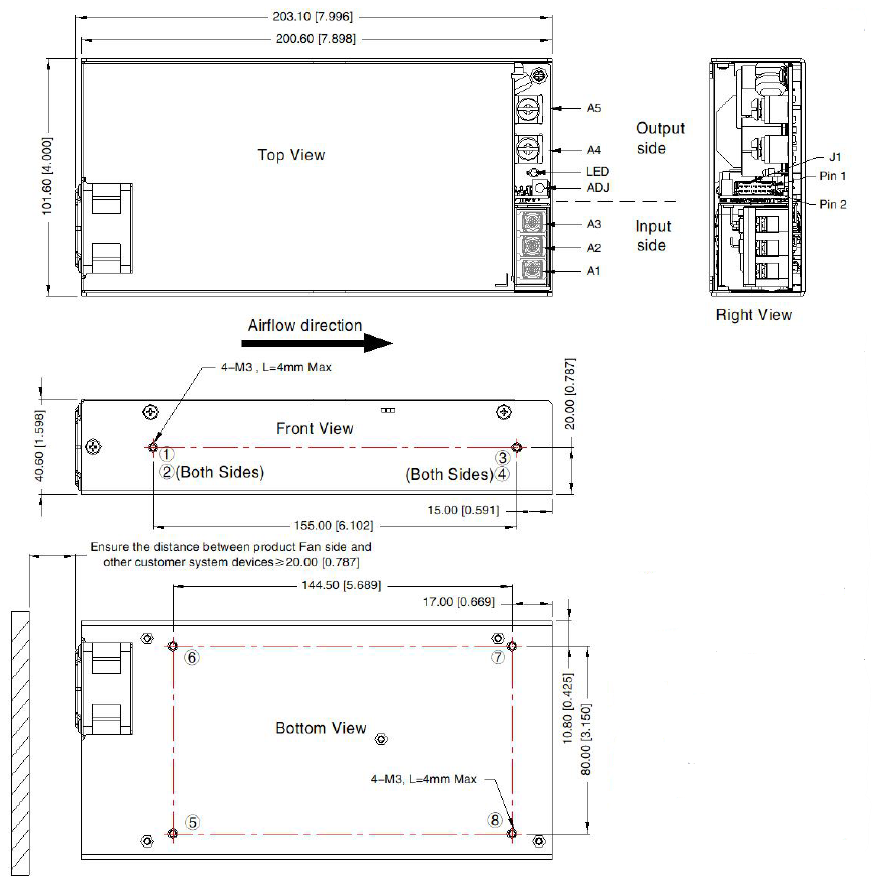

| Dimensions: | 8in x 4in x 1.6in (203.1mm x 101.6mm x 40.6mm) |
| Case Material: | Metal (AL1100. SGCC) |
| Notes & safety | |
| Notes: | 1. Under any conditions, the total power of the product should not exceed 600W rated power, and the output current should not exceed the rated output current. 2. Standby power: provides 5V/1A independent output it is recommended to use the main circuit. 3. Tip and barrel method is used for ripple and noise test. Output parallel 47uF electrolytic capacitor and 0.1uF ceramic capacitor, contact factory for more information 4. Room temperature derating of 5°C/1000m is needed for operating altitude greater than 2000m 5. In order to improve the efficiency at high input voltage, there will be audible noise generated, but does not affect product performance and reliability 6. Product customization service is available, please contact factory for more details. 7. Output voltage can be adjusted by the ADJ, clockwise to increase. 8. CAUTION: Double pole, neutral fusing. Disconnect mains before servicing. 9. Products should be classified according to ISO14001 and related environmental laws and regulations and should be handled by qualified units. 10. Power supply is considered a component which will be installed into terminal equipment. All EMC tests should be confirmed with final equipment. Consult factory for EMC test operation instructions. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL62368-1, GB4943.1, IEC60601-1, EN60601-1, EN62368-1, BS EN62368-1 |
| RoHS Compliance: | Yes |
