PSEF320
The PSEF320 series of AC/DC switching power supplies offers up to 321.6 watts of output power in an enclosed 8.47” x 4.53” x 1.81” package. This series consists of single output models with an input voltage range of 85~305VAC or 120~430VAC as this series accepts AC or DC input. Each model features built-in active PFC function, high isolation test voltage, and LED indicator for power on. This series has short circuit, over current, over voltage, and over temperature protection, and the design refers to IEC/EN/UL62368-1, GB4943.1, IEC60950-1, and EN60335-1.
• Universal 85-305VAC or 120~430VDC Input Voltage
• Accepts AC or DC Input (Dual-Use of Same Terminal)
• Built-In Active PFC Function
• High I/O Isolation Test Voltage up to 4000VAC
• Built-In DC Fan
• Output Short Circuit, Over Current, Over Voltage, and Over Temperature Protection
• Compact Size with Low 1U Profile
• LED Indicator for Power On
• Emissions Meet CISPR32/EN55032 Class B
• Design Refers to IEC/EN/UL62368-1, GB4943.1, IEC60950-1, and EN60335-1
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSEF320-04S | Input Voltage: 85~305 | Output Voltage: 4 | Output Current: 60A | Output Power (W): 240 | No. Outputs: S | Case: Enclosed | Size: 8.47" x 4.53" x 1.81" | Get a Quote |
| PSEF320-05S | Input Voltage: 85~305 | Output Voltage: 5 | Output Current: 60A | Output Power (W): 300 | No. Outputs: S | Case: Enclosed | Size: 8.47" x 4.53" x 1.81" | Get a Quote |
| PSEF320-12S | Input Voltage: 85~305 | Output Voltage: 12 | Output Current: 26.7A | Output Power (W): 320.4 | No. Outputs: S | Case: Enclosed | Size: 8.47" x 4.53" x 1.81" | Get a Quote |
| PSEF320-15S | Input Voltage: 85~305 | Output Voltage: 15 | Output Current: 21.4A | Output Power (W): 321 | No. Outputs: S | Case: Enclosed | Size: 8.47" x 4.53" x 1.81" | Get a Quote |
| PSEF320-27S | Input Voltage: 85~305 | Output Voltage: 27 | Output Current: 11.9A | Output Power (W): 321.3 | No. Outputs: S | Case: Enclosed | Size: 8.47" x 4.53" x 1.81" | Get a Quote |
| PSEF320-24S | Input Voltage: 85~305 | Output Voltage: 24 | Output Current: 13.4A | Output Power (W): 321.6 | No. Outputs: S | Case: Enclosed | Size: 8.47" x 4.53" x 1.81" | Get a Quote |
| PSEF320-48S | Input Voltage: 85~305 | Output Voltage: 48 | Output Current: 6.7A | Output Power (W): 321.6 | No. Outputs: S | Case: Enclosed | Size: 8.47" x 4.53" x 1.81" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~305 |
| PFC: | 115VAC: 0.98 230VAC: 0.95 |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 4, 5, 12, 15, 24, 27, 48 |
| Voltage Accuracy: | 4V/5V : ±2% 12V/15V/24V/27V/48V: ±1% |
| Output Current: | 6.7A, 11.9A, 13.4A, 21.4A, 26.7A, 60A |
| Output Power (Watts): | 240, 300, 320.4, 321, 321.3, 321.6 |
| Short Circuit Protection: | Hiccup, continuous, self-recovery |
| Over Voltage Protection: | See Data Sheet |
| Thermal Protection: | Hiccup, Self-Recovery |
| General | |
| Efficiency: | Up to 89% |
| Isolation: | Up to 4000VAC |
| Environmental | |
| Operating Temperature: | -30 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 1.65lbs (750g) |

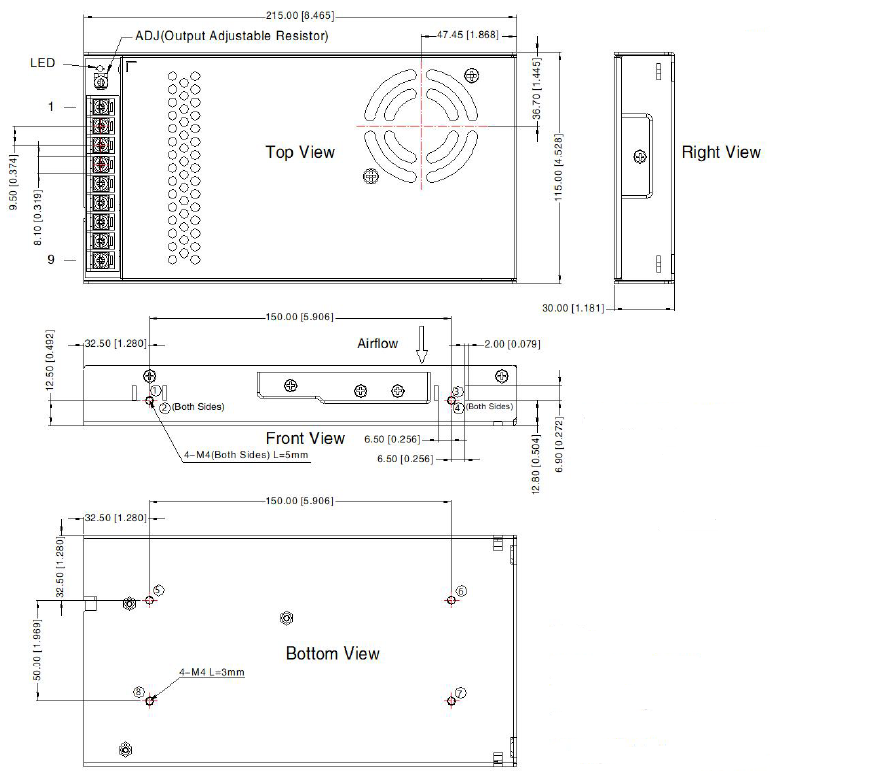

| Dimensions: | 8.47in x 4.53in x 1.81 (215mm x 115mm x 30mm) |
| Case Material: | Metal (AL1100, SGCC) |
| Notes & safety | |

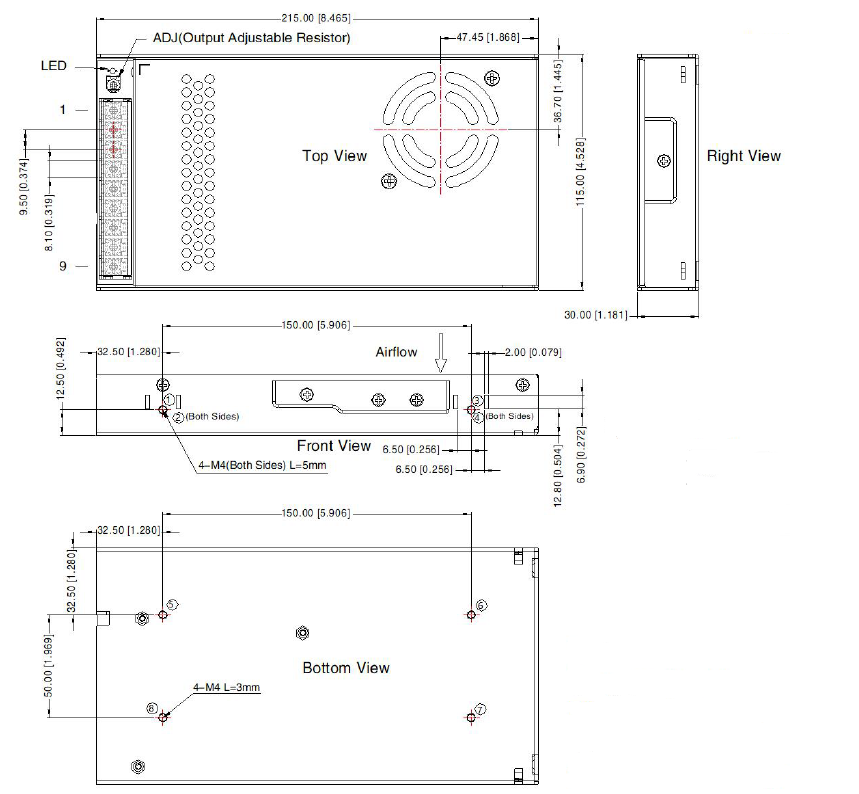

| Notes: | 1. Add “C” to model number to indicate terminal with protective cover, and “Q” to model number for conformal coating. 2. Minimum load: when the product is working at a temperature above 50°C the minimum load is 5% of the rated load, so that the fan could work at high temperature to reduce the temperature rise of the product. 3. Tip and barrel method is used for ripple and noise test. Output parallel 47uF electrolytic capacitor and 0.1uF ceramic capacitor, contact factory for more information. 4. Over-Current Protection: test at rated output voltage. Io is rated output current load. 5. Over-Temperature Protection needs to be tested under rated full load conditions. 6. This product is Listed to applicable standards and requirements by UL. 7. One magnetic bead (nickel-zinc ferrite) should be coupled with the output load line during CE/RE testing. 8. The power supply is considered a component as part of a system. All EMC items are tested on a metal plate (450mm x 450mm x 3mm). Power supply should be combined with final equipment for EMC confirmation. 9. Ambient temperature derating of 5°C/1000m is needed for operating altitude greater than 2000m. 10. In order to improve the efficiency at high input voltage, there will be audible noise generated, but does not affect product performance and reliability. 11. Product customization service is available, please contact factory for more details. 12. Out case needs to be connected to PE ( ) of system when terminal equipment in operating. 13. Output voltage can be adjusted by the ADJ, clockwise to decrease 14. Products should be classified according to ISO14001 and related environmental laws and regulations and should be handled by qualified. 15. Power supply is considered a component which will be installed into terminal equipment. All EMC tests should be confirmed with final equipment. |
| Safety Approvals: | IEC/EN/UL62368-1, GB4943.1, IEC60950-1, and EN60335-1 |
