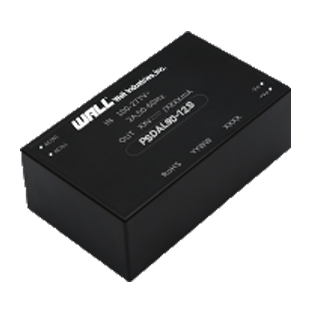

The PSDAL90 series of AC/DC converters offers up to 90 watts of output power in a compact 3.43” x 2.05” x 1.61” package. This series consists of single output models with an ultra-wide 80-305VDC (110~430VDC) input range. Features of this series include short circuit, over current, and over voltage protection, high efficiency, and cooling by free air convection. This series is RoHS compliant, has UL62368, EN62368 & UKCA safety approvals, and the design refers to IEC62368-1, BS EN 62368-1, IEC/EN60335-1, IEC/EN61558-1 safety standards.

• Ultra-Wide Input Voltage Range 80~305VAC (110~430VDC) • Cooling by Free Air Convection • High Efficiency • No Load Power Consumption <0.21W • RoHS Compliant • Meets Emission Class B and Surge ±2KV Without Additional Circuits • 4000m altitude application • Plastic Case meets UL94V-0 Flammability • Short Circuit, Over Current, and Over Voltage Protection • Over Voltage Category OVC III (Meets EN62368-1, EN61558-1) (2000m Altitude) • High I/O Isolation Test Voltage Up to 4200VAC • UL62368, EN62368 & UKCA Safety Approvals • Design Refers to IEC62368-1, BS EN 62368-1, IEC/EN60335-1, IEC/EN61558-1 Safety Standards
Power (W)
Case Size
PSDAL90-12S Input Voltage: 80~305 Output Voltage: 12 Output Current: 6700mA Output Power (W): 80.4 No. Outputs: S Case: Through Hole Size: 3.43" x 2.05" x 1.61" Get a Quote
PSDAL90-15S Input Voltage: 80~305 Output Voltage: 15 Output Current: 5670mA Output Power (W): 85.05 No. Outputs: S Case: Through Hole Size: 3.43" x 2.05" x 1.61" Get a Quote
PSDAL90-48S Input Voltage: 80~305 Output Voltage: 48 Output Current: 1875mA Output Power (W): 90 No. Outputs: S Case: Through Hole Size: 3.43" x 2.05" x 1.61" Get a Quote
PSDAL90-24S Input Voltage: 80~305 Output Voltage: 24 Output Current: 3750mA Output Power (W): 90 No. Outputs: S Case: Through Hole Size: 3.43" x 2.05" x 1.61" Get a Quote
Specification Value
Input Voltage (Nominal): 115/230
Input Voltage Range: 85~305
Input Frequency: 47-63Hz
Output Voltage: 12, 15, 24, 48
Voltage Accuracy: ±2%
Output Current: 1875mA, 3750mA, 5670mA, 6700mA
Output Power (Watts): 80.4, 85.05, 90
Short Circuit Protection: Hiccup, Continuous, Self-Recovery
Over Voltage Protection: See Data Sheet
Efficiency: Up to 93%
Isolation: 4200VAC
Operating Temperature: -40 to 85°C
Storage Temperature: -40 to 85°C
Weight: 7.05oz (200g)

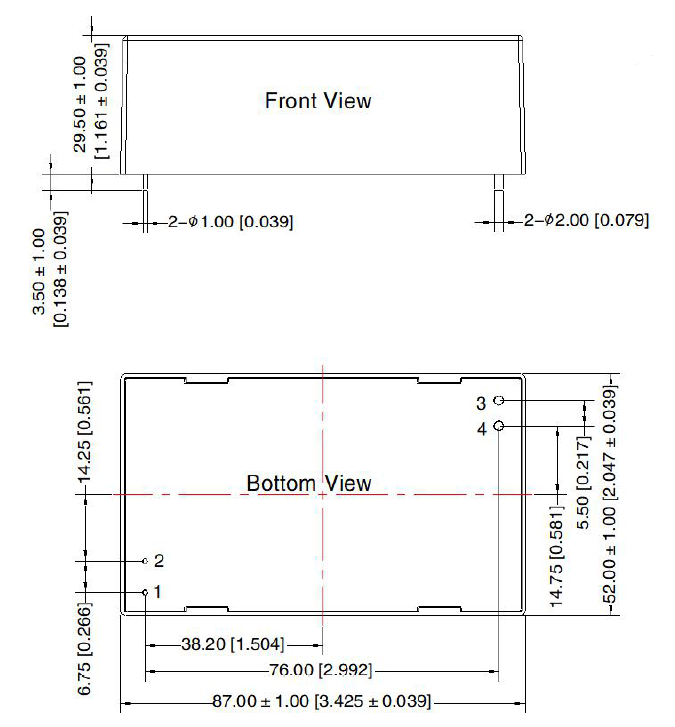

Dimensions: 3.43in x 2.05in x 1.61in (87mm x 52mm x 29.5mm)
Case Material: Black Plastic, Flame-Retardant and Heat-Resistant (UL94V-0)
Notes & safety
Notes: 1. Tip and barrel method is used for ripple and noise test, output parallel 10uF electrolytic capacitor and 1uF ceramic capacitor, please contact factory for more information.
2. This product is Listed to applicable standards and requirements by UL.
3. If product is not operated within the required load range, the product performance cannot be guaranteed to comply with all parameters in the datasheet.
4. Customization available
5. Products classified according to ISO14001 and related environmental laws and regulations. It should be handled by qualified units.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL62368, EN62368 & UKCA
RoHS Compliance: Yes
