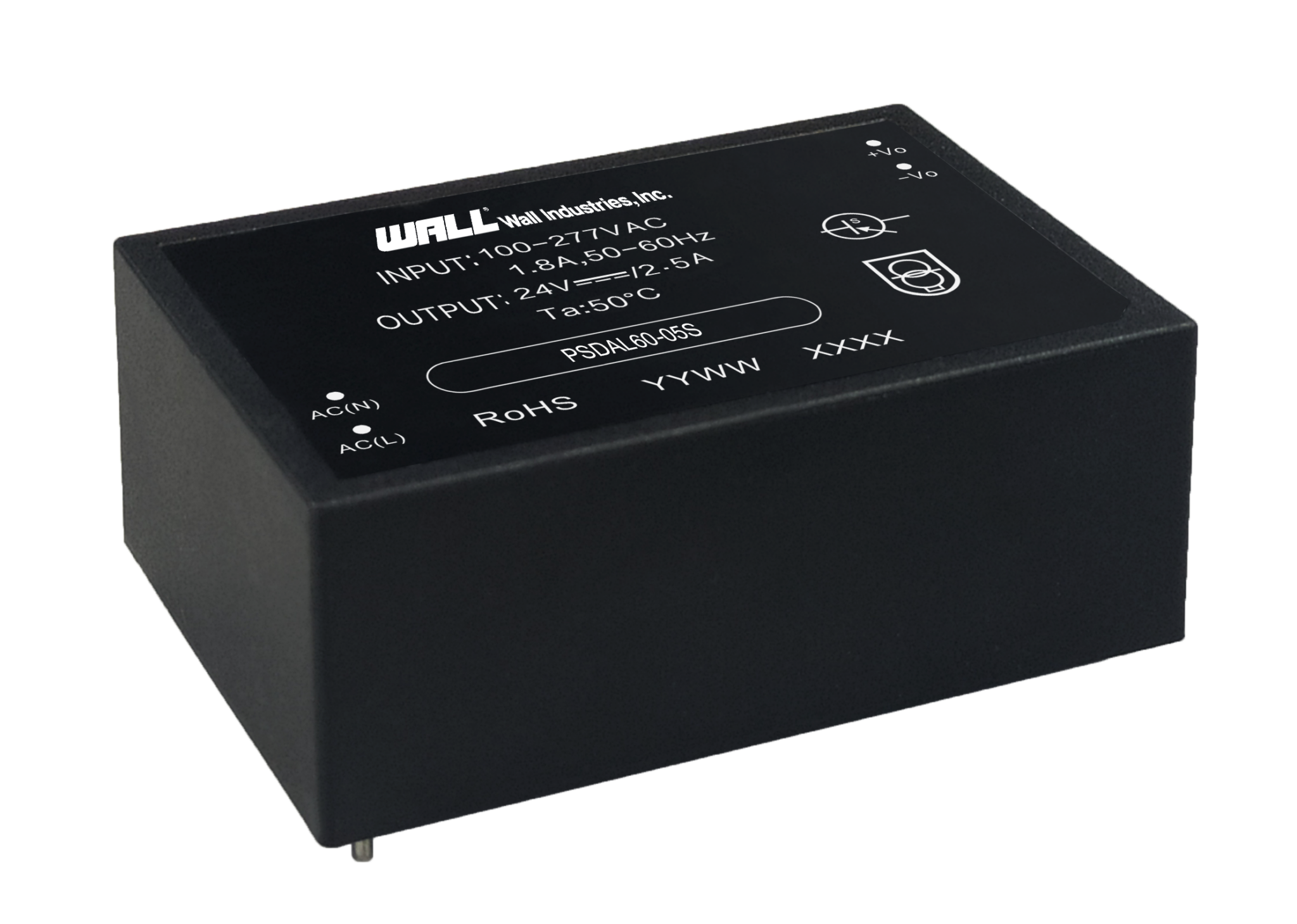

PSDAL60
The PSDAL60 series of AC/DC converters offers up to 60 watts of output power in a compact horizontal package. This series consists of single output models with an ultra-wide 85-305VDC (100~430VDC) input range. Features of this series include short circuit, over current, and over voltage protection and high efficiency. This series is RoHS compliant, and it is designed to meet IEC/UL/EN62368-1, IEC/EN60335-1/62477-1, EN61558-1 safety approvals.
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSDAL60-05S | Input Voltage: 85~305 | Output Voltage: 5 | Output Current: 10A | Output Power (W): 50 | No. Outputs: S | Case: Through Hole | Size: 2.76" x 1.89" x 1.06" | Get a Quote |
| PSDAL60-12S | Input Voltage: 85~305 | Output Voltage: 12 | Output Current: 5A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 2.76" x 1.89" x 1.06" | Get a Quote |
| PSDAL60-15S | Input Voltage: 85~305 | Output Voltage: 15 | Output Current: 4A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 2.76" x 1.89" x 1.06" | Get a Quote |
| PSDAL60-24S | Input Voltage: 85~305 | Output Voltage: 24 | Output Current: 2.5A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 2.76" x 1.89" x 1.06" | Get a Quote |
| PSDAL60-48S | Input Voltage: 85~305 | Output Voltage: 48 | Output Current: 1.25A | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 2.76" x 1.89" x 1.06" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~305 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5, 12, 15, 24, 48 |
| Voltage Accuracy: | ±2% |
| Output Current: | 1.25A, 2.5A, 4A, 5A, 10A |
| Output Power (Watts): | 50, 60 |
| Short Circuit Protection: | Hiccup, Continuous, Self-Recovery |
| Over Voltage Protection: | See Data Sheet |
| General | |
| Efficiency: | Up to 91% |
| Isolation: | 4200VAC |
| Environmental | |
| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 4.59oz (130g) |

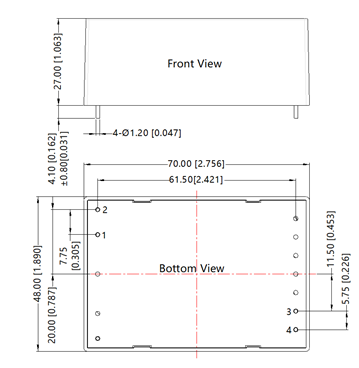

| Dimensions: | 2.76in x 1.89in x 1.06in (70mm x 48mm x 27mm) |
| Case Material: | Black Plastic, Flame-Retardant and Heat-Resistant (UL94V-0)/Metal |
| Notes & safety | |
| Notes: | 1. Tip and barrel method is used for ripple and noise test, output parallel 47uF electrolytic capacitor and 1uF ceramic capacitor, please contact factory for more information. 2. If product is not operated within required load range, it is not guaranteed that the product performance will comply with all parameters in the datasheet. 3. Products classified according to ISO14001 and related environmental laws and regulations. It should be handled by qualified units. 4. Customization available. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL62368, EN62368 & UKCA |
| RoHS Compliance: | Yes |
