PSDAL20
The PSDAL20 series of AC/DC converters offers up to 20 watts of output power in a compact horizontal, chassis mount, or DIN rail package. This series consists of single output models with an ultra-wide 85-305VDC (100~430VDC) input range. Features of this series include short circuit, over current, and over voltage protection and cooling by free air convection. This series is RoHS compliant, has IEC/ UL62368-1, EN61558-1, EN60335-1 & EN62368-1 (report) safety approvals.
• Ultra-Wide Input Voltage Range 85~305VAC (100~430VDC)
• Cooling by Free Air Convection
• High Efficiency
• No Load Power Consumption 0.1W
• RoHS Compliant
• Short Circuit, Over Current, and Over Voltage Protection
• Over Voltage Category OVC III (Meets EN61558)
• EMI Performance Meets CISPR32/EN55032 Class B, EN55014
• IEC/UL62368-1, EN61558-1, EN60335-1 Safety Approvals & EN62368-1 (Report)
Part Number Setup:

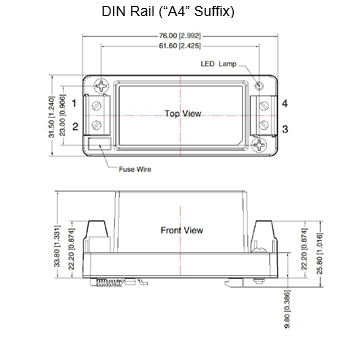

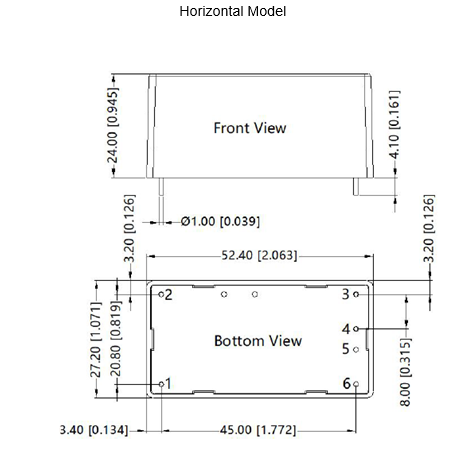

X: Blank for Through Hole Package, "A2" for Chassis Mount package, “A4” for DIN Rail package.
X: Blank for Through Hole Package, "A2" for Chassis Mount package, “A4” for DIN Rail package.
Example:
PSDAL20-12SA2 = 12V Chassis Mount Model
PSDAL20-12SA2 = 12V Chassis Mount Model
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSDAL20-03Sx | Input Voltage: 85~305 | Output Voltage: 3.3 | Output Current: 4500mA | Output Power (W): 14.85 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 2.06" x 1.07" x 0.95" | Get a Quote |
| PSDAL20-05Sx | Input Voltage: 85~305 | Output Voltage: 5 | Output Current: 4000mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 2.06" x 1.07" x 0.95" | Get a Quote |
| PSDAL20-09Sx | Input Voltage: 85~305 | Output Voltage: 9 | Output Current: 2200mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 2.06" x 1.07" x 0.95" | Get a Quote |
| PSDAL20-12Sx | Input Voltage: 85~305 | Output Voltage: 12 | Output Current: 1670mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 2.06" x 1.07" x 0.95" | Get a Quote |
| PSDAL20-15Sx | Input Voltage: 85~305 | Output Voltage: 15 | Output Current: 1330mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 2.06" x 1.07" x 0.95" | Get a Quote |
| PSDAL20-24Sx | Input Voltage: 85~305 | Output Voltage: 24 | Output Current: 830mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 2.06" x 1.07" x 0.95" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~305 |
| Input Frequency: | 47 - 440Hz |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, 24 |
| Voltage Accuracy: | ±1.5% |
| Output Current: | 4500mA, 4000mA, 2200mA, 1670mA, 1330mA, 830mA |
| Output Power (Watts): | 14.85W, 20W |
| Short Circuit Protection: | Hiccup, Continuous, Self-Recovery |
| Over Voltage Protection: | See Data Sheet |
| General | |
| Efficiency: | 87% |
| Isolation: | 4000VAC |
| Environmental | |
| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | Horizontal Package: 1.94oz (55g) Chassis Mounting: 2.65oz (75g) DIN Rail Mounting: 3.35oz (95g) |
| Dimensions: | Horizontal Package: 1.94oz (55g) Chassis Mounting: 2.65oz (75g) DIN Rail Mounting: 3.35oz (95g) |
| Case Material: | Black Plastic, Flame-Retardant and Heat-Resistant (UL94V-0) |
| Notes & safety | |
| Notes: | 1. Chassis mount and DIN rail models are available for this series. To indicate chassis mount model, add “A2” to product model number. To indicate DIN Rail model, add “A4” to product model number. 2. Tip and barrel method is used for ripple and noise test, output parallel 10uF electrolytic capacitor and 1uF ceramic capacitor, please contact factory for more information. 3. This product is Listed to applicable standards and requirements by UL. 4. The output terminal of the product needs to be connected to PE through a Y capacitor or close the to metal frame. Refer to Fig. 3 for recommended circuit. 5. If product is not operated within required load range, it is not guaranteed that the product performance will comply with all parameters in the datasheet. 6. Products classified according to ISO14001 and related environmental laws and regulations. It should be handled by qualified units. 7. Customization available. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC/UL62368-1, EN61558-1, EN60335-1 Approval & EN62368-1 Report |
