PSDAL05
The PSDAL05 series of AC/DC converters offers up to 5 watts of output power in a compact horizontal, chassis mount, or DIN rail package. This series consists of regulated single output models with an ultra-wide 85-305VDC (100~430VDC) input range. Features of this series include short circuit, over current, and over voltage protection and the plastic case meets UL94V-0 flammability. This series is RoHS compliant and has IEC/EN/UL62368/EN60335/EN61558 safety approvals.
• Ultra-Wide Input Voltage Range 85~305VAC (100~430VDC) • Plastic Case meets UL94V-0 Flammability • Low Power Consumption • Reinforced Isolation • Short Circuit, Over Current, and Over Voltage Protection • RoHS Compliant • EMI Performance Meets CISPR32/EN55032 Class B, EN55014 • IEC/EN/UL62368/EN60335/EN61558 Safety Approvals
Part Number Setup:
X: Blank for Through Hole Package, "A2" for Chassis Mount package, “A4” for DIN Rail package.
X: Blank for Through Hole Package, "A2" for Chassis Mount package, “A4” for DIN Rail package.
Example:
PSDAL05-12SA2 = 12V Chassis Mount Model
PSDAL05-12SA2 = 12V Chassis Mount Model
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSDAL05-03Sx | Input Voltage: 85~305 | Output Voltage: 3.3 | Output Current: 1515mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 1" x 1" x 0.69" | Get a Quote |
| PSDAL05-05Sx | Input Voltage: 85~305 | Output Voltage: 53 | Output Current: 1000mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 1" x 1" x 0.69" | Get a Quote |
| PSDAL05-09Sx | Input Voltage: 85~305 | Output Voltage: 9 | Output Current: 555mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 1" x 1" x 0.69" | Get a Quote |
| PSDAL05-12Sx | Input Voltage: 85~305 | Output Voltage: 12 | Output Current: 416mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 1" x 1" x 0.69" | Get a Quote |
| PSDAL05-15Sx | Input Voltage: 85~305 | Output Voltage: 15 | Output Current: 333mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 1" x 1" x 0.69" | Get a Quote |
| PSDAL05-24Sx | Input Voltage: 85~305 | Output Voltage: 24 | Output Current: 208mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 1" x 1" x 0.69" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~305 |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, 24 |
| Voltage Accuracy: | PSDAL05-03S: ±3 Others: ±2 |
| Output Current: | 1515mA, 1000mA, 555mA, 416mA, 333mA, 208mA |
| Output Power (Watts): | 5W |
| Short Circuit Protection: | Hiccup, continuous, self-recovery |
| Over Voltage Protection: | See Data Sheet |
| General | |
| Efficiency: | 81.5% |
| Isolation: | 4000VAC |
| Environmental | |
| Operating Temperature: | -40 to +85°C |
| Storage Temperature: | -40 to 105°C |
| Physical | |
| Weight: | Horizontal Package: 3.3V/5V/9V/12V: 0.63oz (18g) 15V/24V 0.65oz (18.5g) Chassis Mounting: 1.34oz (38g) DIN Rail Mounting: 2.05oz (58g) |

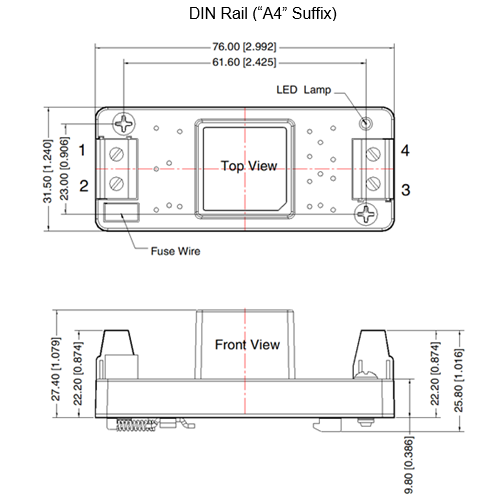

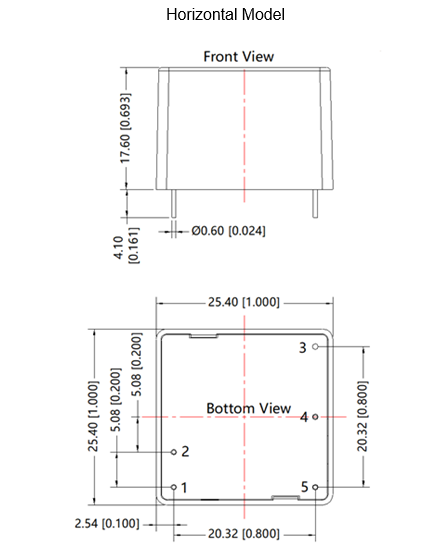

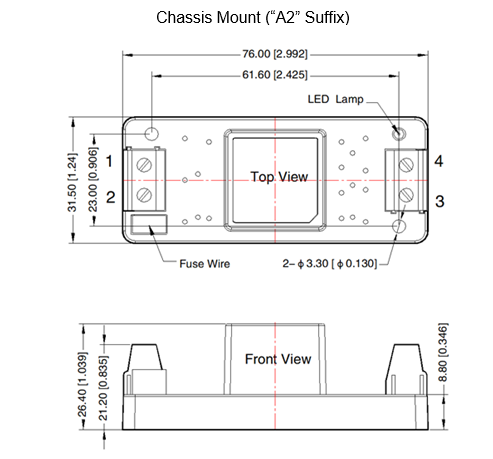

| Dimensions: | Horizontal Package: 1in x 1in x 0.69in (25.4mm x 25.4mm x 17.6mm) Chassis Mounting: 2.99in x 1.24in x 1.04in (76mm x 31.5mm x 26.4mm) DIN Rail Mounting: 2.99in x 1.24in x 1.22in (76mm x 31.5mm x 31mm) |
| Case Material: | Blue Flame-Retardant and Heat-Resistant Plastic (UL94 V-0) |
| Notes & safety | |
| Notes: | 1. Chassis mount and DIN rail models are available for this series. To indicate chassis mount model, add “A2” to product model number. To indicate DIN Rail model, add “A4” to product model number. 2. Tip and barrel method is used for ripple and noise test, output parallel 10uF electrolytic capacitor and 1uF ceramic capacitor, please contact factory for more information. 3. If product is not operated within required load range, it is not guaranteed that the product performance will comply with all parameters in the datasheet. 4. Products classified according to ISO14001 and related environmental laws and regulations. It should be handled by qualified units. 5. Customization available. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC/EN/UL62368/EN60335/EN61558 |
| RoHS Compliance: | Yes |
