PSPW60

The PSPW60 Series offers 40 to 60 Watts in a single output universal input open frame power supply. All models are over voltage, over load, and short circuit protected. This series also offers output voltages from 5 to 48VDC.

● Single Output ● Universal AC Input ● Output Voltages from 5 to 48VDC ● Over Voltage/ Over Load/ Short Circuit Protected ● 4(L) x 2(W) x 1.02(H) inches (101.6 x 50.8 x 26 mm)
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSPW040B-1Y05 Input Voltage: 90~264 Output Voltage: 5 Output Current: 8A Output Power (W): 40 No. Outputs: S Case: Open Frame Get a Quote
PSPW060B-1Y12 Input Voltage: 90~264 Output Voltage: 12 Output Current: 5A Output Power (W): 60 No. Outputs: S Case: Open Frame Get a Quote
PSPW060B-1Y15 Input Voltage: 90~264 Output Voltage: 15 Output Current: 4A Output Power (W): 60 No. Outputs: S Case: Open Frame Get a Quote
PSPW060B-1Y19 Input Voltage: 90~264 Output Voltage: 19 Output Current: 3.16 A Output Power (W): 60 No. Outputs: S Case: Open Frame Get a Quote
PSPW060B-1Y24 Input Voltage: 90~264 Output Voltage: 24 Output Current: 2.5 A Output Power (W): 60 No. Outputs: S Case: Open Frame Get a Quote
PSPW060B-1Y36 Input Voltage: 90~264 Output Voltage: 36 Output Current: 1.67 A Output Power (W): 60 No. Outputs: S Case: Open Frame Get a Quote
PSPW060B-1Y48 Input Voltage: 90~264 Output Voltage: 48 Output Current: 1.25 A Output Power (W): 60 No. Outputs: S Case: Open Frame Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
Input Frequency: 47-63 Hz
Output
Output Voltage: 5, 12, 15, 19, 24, 36, 48
Output Current: 1.25A, 1.67A, 2.5A, 3.16A, 4A, 5A, 8A
Output Power (Watts): 40, 60
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: 110-130%, Latch Type, AC Recycle
General
Efficiency: 80%
Environmental
Operating Temperature: -0 to 50°C
Storage Temperature: -10ºC to 70ºC
Physical
Weight: 5.29oz.

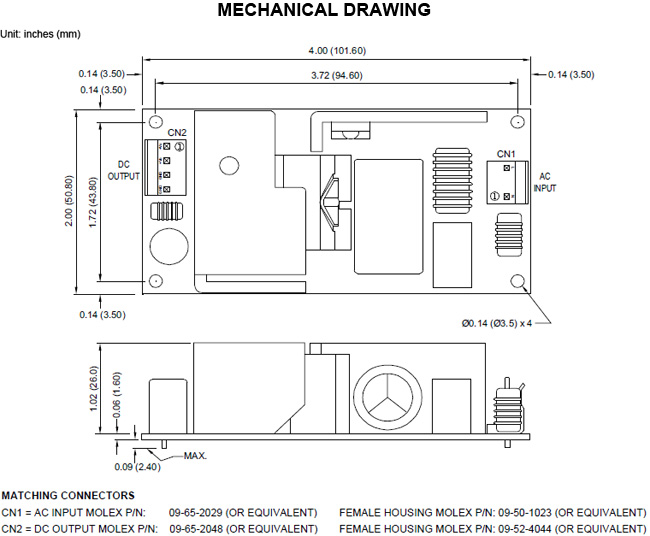

Dimensions: 4" x 2" x 1.02" (101.6 x 50.8 x 26.0 mm)
Notes & safety
Notes: 1. At 25°C including initial tolerance, line voltage, load currents, and output voltages adjusted to factory settings.
2. Ripple and noise are measured at oscilloscope 20MHz bandwidth by a 10uF electrolytic capacitor and a 0.1uF ceramic capacitor in parallel at output connector.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL 60950, CSA C22.2 No. 60950, TUV EN60950, CB IEC 60950
RoHS Compliance: Yes
TUV Efficiency Level: TUV EN60950
