PSPDS-15

The PSPDS-15 series of AC/DC switching power supplies offers up to 16.8W of output power in a 3.11” x 2.01” x 1.10” package. All models have a single output and a universal AC input. Some features include wide operating temperature range (-20°C to +70°C), efficiency up to 83%, and output adjustability. These supplies are RoHS compliant and have UL/cUL, CB, and CE safety approvals. All models are protected against over load, over voltage, and short circuit conditions. All models are 100% full load burn-in tested.

• Single Output • RoHS Compliant • Universal AC Input (Full Range) • High Efficiency and High Reliability • Over Voltage, Over Load, and Short Circuit Protected • Wide Operating Ambient Temperature (-20°C to +70°C) • All Using 105°C Long Life Electrolytic Capacitors • Up to 16.8W Output Power • 100% Full Load Burn-in Tested • Output Voltages Available from 3.3VDC to 24VDC • Dimensions: 3.11” x 2.01” x 1.10”
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSPDS-15-3.3 Input Voltage: 88~264 Output Voltage: 3.3 Output Current: 4A Output Power (W): 13.2 No. Outputs: S Case: Enclosed Case Get a Quote
PSPDS-15-5 Input Voltage: 88~264 Output Voltage: 5 Output Current: 3A Output Power (W): 15 No. Outputs: S Case: Enclosed Case Get a Quote
PSPDS-15-15 Input Voltage: 88~264 Output Voltage: 15 Output Current: 1A Output Power (W): 15 No. Outputs: S Case: Enclosed Case Get a Quote
PSPDS-15-12 Input Voltage: 88~264 Output Voltage: 12 Output Current: 1.3A Output Power (W): 15.6 No. Outputs: S Case: Enclosed Case Get a Quote
PSPDS-15-24 Input Voltage: 88~264 Output Voltage: 24 Output Current: 0.7A Output Power (W): 16.8 No. Outputs: S Case: Enclosed Case Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 88~264
Input Frequency: 47-63Hz
Output
Output Voltage: 3.3, 5, 12, 15, 24
Voltage Accuracy: ±3.0%
Output Current: 4A, 3A, 1.3A, 1A, 0.7A
Output Power (Watts): 13.2, 15, 15.6, 16.8
Output Trim/Adjustability: ±5%
Short Circuit Protection: Long-term mode, Automatic Recovery
Over Voltage Protection: 105~150%
General
Efficiency: Up to 83%
Isolation: 3000VAC
Environmental

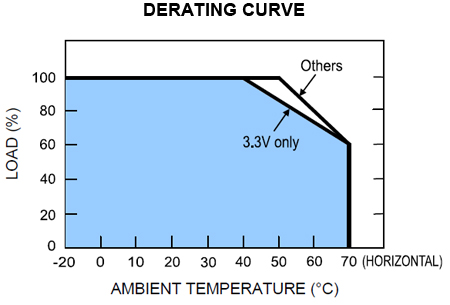

Operating Temperature: -20 to 70°C
Storage Temperature: -40 to 85°C
Physical
Weight: 7.64oz (216.7g)

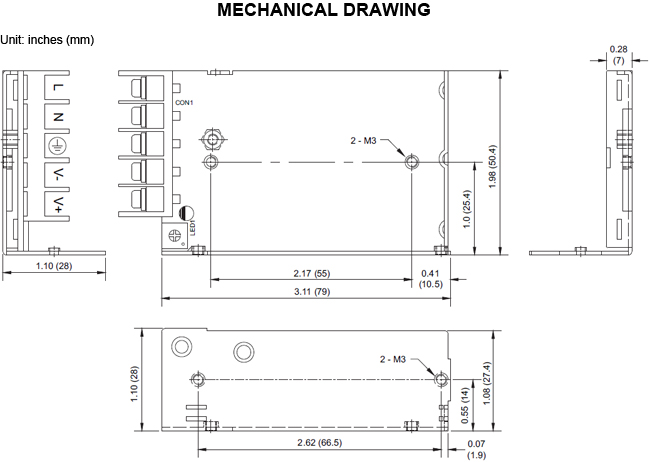

Dimensions: 3.11" x 2.01" x 1.10" (79 x 51 x 28 mm)
Notes & safety
Notes: 1. Ripple & noise is measured at 20MHz bandwidth by using a 12" twisted pair-wire terminated with 0.1μF and 47μF capacitors in parallel.
2. The SPS is considered a component which will be installed into final equipment. The final equipment must be
re-confirmed that it still meets EMC directives.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: GB4943-2001, EN60950-1: 2006
RoHS Compliance: Yes
