PSLH40

The PSLH40 series of AC/DC converters offers up to 40 watts of output power in a PCB mount, Chassis Mount, or DIN rail mount package. This series consists of single and dual output models with a wide input voltage range of 85~264VAC (100~370VDC). Features of this series include high reliability, high efficiency, high safety isolation, as well as low standby power consumption. This series also has short circuit, over current, and over voltage protection, it is RoHS compliant, and UL60950 & EN60950 approvals. Please contact factory for order details.

• Wide Input Voltage Range of 85~264VAC (100~370VDC) • Low Standby Power Consumption • Conversion Efficiency up to 84% • High Reliability • High Safety Isolation • Short Circuit, Over Current, and Over Voltage Protection • High Efficiency • RoHS Compliant • 3 Year Warranty • UL60950 & EN60950 Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSLH40-03SA1 Input Voltage: 85~264 Output Voltage: 3.3 Output Current: 8000mA Output Power (W): 26.4 No. Outputs: S Case: PCB Mount Get a Quote
PSLH40-03SA2 Input Voltage: 85~264 Output Voltage: 3.3 Output Current: 8000mA Output Power (W): 26.4 No. Outputs: S Case: Chassis Mount Get a Quote
PSLH40-03SA4 Input Voltage: 85~264 Output Voltage: 3.3 Output Current: 8000mA Output Power (W): 26.4 No. Outputs: S Case: DIN Rail Get a Quote
PSLH40-05SA1 Input Voltage: 85~264 Output Voltage: 5 Output Current: 8000mA Output Power (W): 40 No. Outputs: S Case: PCB Mount Get a Quote
PSLH40-05SA2 Input Voltage: 85~264 Output Voltage: 5 Output Current: 8000mA Output Power (W): 40 No. Outputs: S Case: Chassis Mount Get a Quote
PSLH40-05SA4 Input Voltage: 85~264 Output Voltage: 5 Output Current: 8000mA Output Power (W): 40 No. Outputs: S Case: DIN Rail Get a Quote
PSLH40-09SA1 Input Voltage: 85~264 Output Voltage: 9 Output Current: 4444mA Output Power (W): 40 No. Outputs: S Case: PCB Mount Get a Quote
PSLH40-09SA2 Input Voltage: 85~264 Output Voltage: 9 Output Current: 4444mA Output Power (W): 40 No. Outputs: S Case: Chassis Mount Get a Quote
PSLH40-09SA4 Input Voltage: 85~264 Output Voltage: 9 Output Current: 4444mA Output Power (W): 40 No. Outputs: S Case: DIN Rail Get a Quote
PSLH40-12SA1 Input Voltage: 85~264 Output Voltage: 12 Output Current: 3333mA Output Power (W): 40 No. Outputs: S Case: PCB Mount Get a Quote
PSLH40-12SA2 Input Voltage: 85~264 Output Voltage: 12 Output Current: 3333mA Output Power (W): 40 No. Outputs: S Case: Chassis Mount Get a Quote
PSLH40-12SA4 Input Voltage: 85~264 Output Voltage: 12 Output Current: 3333mA Output Power (W): 40 No. Outputs: S Case: DIN Rail Get a Quote
PSLH40-15SA1 Input Voltage: 85~264 Output Voltage: 15 Output Current: 2666mA Output Power (W): 40 No. Outputs: S Case: PCB Mount Get a Quote
PSLH40-15SA2 Input Voltage: 85~264 Output Voltage: 15 Output Current: 2666mA Output Power (W): 40 No. Outputs: S Case: Chassis Mount Get a Quote
PSLH40-15SA4 Input Voltage: 85~264 Output Voltage: 15 Output Current: 2666mA Output Power (W): 40 No. Outputs: S Case: DIN Rail Get a Quote
PSLH40-24SA1 Input Voltage: 85~264 Output Voltage: 24 Output Current: 1667mA Output Power (W): 40 No. Outputs: S Case: PCB Mount Get a Quote
PSLH40-24SA2 Input Voltage: 85~264 Output Voltage: 24 Output Current: 1667mA Output Power (W): 40 No. Outputs: S Case: Chassis Mount Get a Quote
PSLH40-24SA4 Input Voltage: 85~264 Output Voltage: 24 Output Current: 1667mA Output Power (W): 40 No. Outputs: S Case: DIN Rail Get a Quote
PSLH40-0512DA1 Input Voltage: 85~264 Output Voltage: 5, 12 Output Current: 5000mA/1250mA Output Power (W): 40 No. Outputs: D Case: PCB Mount Get a Quote
PSLH40-0512DA2 Input Voltage: 85~264 Output Voltage: 5, 12 Output Current: 5000mA/1250mA Output Power (W): 40 No. Outputs: D Case: Chassis Mount Get a Quote
PSLH40-0512DA4 Input Voltage: 85~264 Output Voltage: 5, 12 Output Current: 5000mA/1250mA Output Power (W): 40 No. Outputs: D Case: DIN Rail Get a Quote
PSLH40-0524DA1 Input Voltage: 85~264 Output Voltage: 5, 24 Output Current: 5000mA/625mA Output Power (W): 40 No. Outputs: D Case: PCB Mount Get a Quote
PSLH40-0524DA2 Input Voltage: 85~264 Output Voltage: 5, 24 Output Current: 5000mA/625mA Output Power (W): 40 No. Outputs: D Case: Chassis Mount Get a Quote
PSLH40-0524DA4 Input Voltage: 85~264 Output Voltage: 5, 24 Output Current: 5000mA/625mA Output Power (W): 40 No. Outputs: D Case: DIN Rail Get a Quote
PSLH40-05DA1 Input Voltage: 85~264 Output Voltage: 5, -5 Output Current: 4000mA/4000mA Output Power (W): 40 No. Outputs: D Case: PCB Mount Get a Quote
PSLH40-05DA2 Input Voltage: 85~264 Output Voltage: 5, -5 Output Current: 4000mA/4000mA Output Power (W): 40 No. Outputs: D Case: Chassis Mount Get a Quote
PSLH40-05DA4 Input Voltage: 85~264 Output Voltage: 5, -5 Output Current: 4000mA/4000mA Output Power (W): 40 No. Outputs: D Case: DIN Rail Get a Quote
PSLH40-12DA1 Input Voltage: 85~264 Output Voltage: 12, -12 Output Current: 1666mA/1666mA Output Power (W): 40 No. Outputs: D Case: PCB Mount Get a Quote
PSLH40-12DA2 Input Voltage: 85~264 Output Voltage: 12, -12 Output Current: 1666mA/1666mA Output Power (W): 40 No. Outputs: D Case: Chassis Mount Get a Quote
PSLH40-12DA4 Input Voltage: 85~264 Output Voltage: 12, -12 Output Current: 1666mA/1666mA Output Power (W): 40 No. Outputs: D Case: DIN Rail Get a Quote
PSLH40-15DA1 Input Voltage: 85~264 Output Voltage: 15, -15 Output Current: 1333mA/1333mA Output Power (W): 40 No. Outputs: D Case: PCB Mount Get a Quote
PSLH40-15DA2 Input Voltage: 85~264 Output Voltage: 15, -15 Output Current: 1333mA/1333mA Output Power (W): 40 No. Outputs: D Case: Chassis Mount Get a Quote
PSLH40-15DA4 Input Voltage: 85~264 Output Voltage: 15, -15 Output Current: 1333mA/1333mA Output Power (W): 40 No. Outputs: D Case: Enclosed Case Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 85~264
Input Frequency: 47 to 440Hz
Output
Output Voltage: 3.3, 5, 9, 12, 15, 24, 5/12, 5/24, ±5, ±12, ±15
Voltage Accuracy: Single Output Models, PSLH40-05Dx, PSLH40-12Dx, & PSLH40-15Dx: ±2% PSLH40-0512Dx & PSLH40-0524Dx Primary Outputs: ±2% PSLH40-0512Dx & PSLH40-0524Dx Secondary Outputs: ±5%
Output Current: 1667mA, 2666mA, 3333mA, 4444mA, 8000mA, 1333mA/1333mA, 1666mA/1666mA, 4000mA/4000mA, 5000mA/625mA, 5000mA/1250mA
Output Power (Watts): 26.4, 40
Output Trim/Adjustability: Single Outputs: ±10%
Short Circuit Protection: Continuous, Self-Recovery
Over Voltage Protection: 3.3V Output: 5.5V
5V Output: 9V
9V Output: 14V
12V Output: 16V
15V Output: 24V
24V Output: 35V
General
Efficiency: Up to 84%
Isolation: Input to Output (All Models): 3000VAC
Output to Output (PSLH40-0512Dx & PSLH40-0524Dx Models): 500VAC
Environmental
Operating Temperature: -40 to +70ºC
Storage Temperature: -40 to +85ºC
Physical
Weight: PCB Mount: 7.94oz (225g) Typ.
Chassis Mount: 10.93oz (310g) Typ.
DIN-Rail Mount: 13.05oz (370g) Typ.

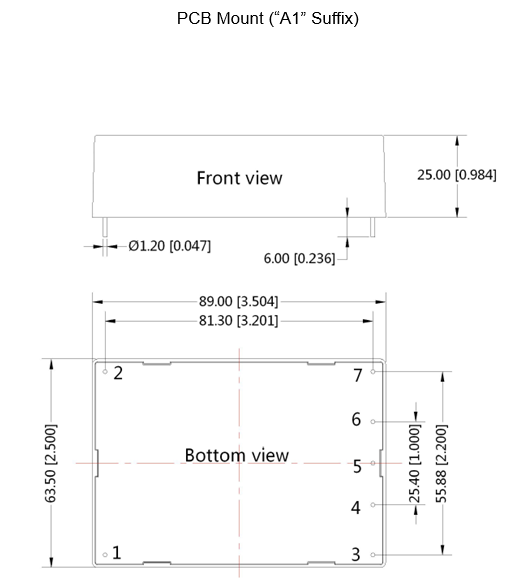

Dimensions: PCB Mount: 3.50in x 2.5in x 0.98in (89mm x 63.5mm x 25mm)

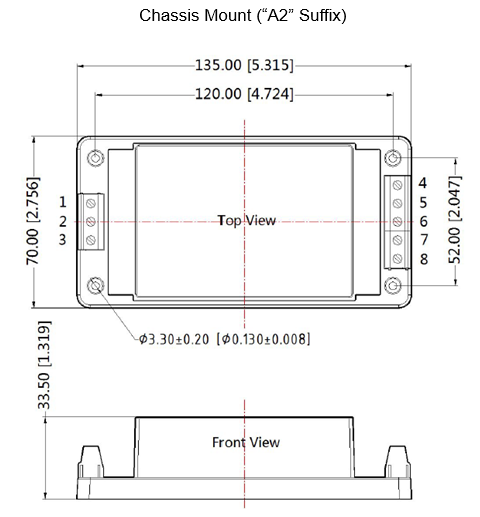

Chassis Mount: 5.32in x 2.76in x 1.32in (135mm x 70mm x 33.5mm)

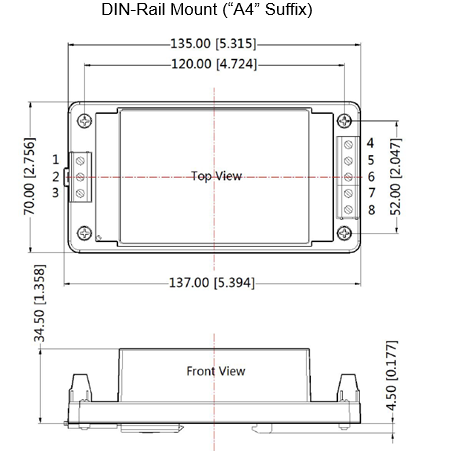

DIN Rail Mount: 5.32in x 2.76in x 1.36in (135mm x 70mm x 34.5mm)
Case Material: Black Flame-Retardant & Heat-Resistance Plastic (UL94V-0)
Notes & safety
Notes: 1. Ripple and noise are measured by “parallel cable” method.
2. Customization available.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: IEC60950/EN60950/UL60950
RoHS Compliance: Yes
