DTBA018

The DTBA018 series of AC/DC desktop power supplies provides 18 watts of continuous output power. The series consists of single output models ranging from 5V~56V and a 100~240VAC input voltage range. All units are RoHS and Level VI Efficiency compliant and have short circuit and over current protection. Units also meet IEC/EN60950-1, BSMI, CCC, KC, PSE, and SAA safety approvals. The DTBA018 series has two types of cases available (Type 1 and Type 2) and either A C14 or C6 AC inlet available. Please call factory for order details.

• RoHS Compliant • MTBF ≥30,000 • DoE/ErP, Level VI Efficiency Compliant • Over Current and Short Circuit Protection • AC Inlet C14 or C6 • Class II • IEC/EN60950-1, UL/cUL60950-1, BSMI, CCC, KC, PSE, and SAA Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DTBA018005Ax Input Voltage: 100~240 Output Voltage: 5~8.9 Output Current: 3A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
DTBA018089Ax Input Voltage: 100~240 Output Voltage: 5~8.9 Output Current: 3A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
DTBA018009Ax Input Voltage: 100~240 Output Voltage: 9~11.9 Output Current: 2A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
DTBA018119Ax Input Voltage: 100~240 Output Voltage: 9~11.9 Output Current: 2A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
DTBA018012Ax Input Voltage: 100~240 Output Voltage: 12~17.9 Output Current: 1.5A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
DTBA018179Ax Input Voltage: 100~240 Output Voltage: 12~17.9 Output Current: 1.5A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
DTBA018018Ax Input Voltage: 100~240 Output Voltage: 18~23.9 Output Current: 1A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
DTBA018239Ax Input Voltage: 100~240 Output Voltage: 18~23.9 Output Current: 1A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
DTBA018024Ax Input Voltage: 100~240 Output Voltage: 24~34.9 Output Current: 0.75A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
DTBA018349Ax Input Voltage: 100~240 Output Voltage: 24~34.9 Output Current: 0.75A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
DTBA018035Ax Input Voltage: 100~240 Output Voltage: 35~56 Output Current: 0.51A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
DTBA018056Ax Input Voltage: 100~240 Output Voltage: 35~56 Output Current: 0.51A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
DTBA018005Bx Input Voltage: 100~240 Output Voltage: 5~8.9 Output Current: 3A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
DTBA018089Bx Input Voltage: 100~240 Output Voltage: 5~8.9 Output Current: 3A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
DTBA018009Bx Input Voltage: 100~240 Output Voltage: 9~11.9 Output Current: 2A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
DTBA018119Bx Input Voltage: 100~240 Output Voltage: 9~11.9 Output Current: 2A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
DTBA018012Bx Input Voltage: 100~240 Output Voltage: 12~17.9 Output Current: 1.5A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
DTBA018179Bx Input Voltage: 100~240 Output Voltage: 12~17.9 Output Current: 1.5A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
DTBA018018Bx Input Voltage: 100~240 Output Voltage: 18~23.9 Output Current: 1A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
DTBA018239Bx Input Voltage: 100~240 Output Voltage: 18~23.9 Output Current: 1A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
DTBA018024Bx Input Voltage: 100~240 Output Voltage: 24~34.9 Output Current: 0.75A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
DTBA018349Bx Input Voltage: 100~240 Output Voltage: 24~34.9 Output Current: 0.75A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
DTBA018035Bx Input Voltage: 100~240 Output Voltage: 35~56 Output Current: 0.51A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
DTBA018056Bx Input Voltage: 100~240 Output Voltage: 35~56 Output Current: 0.51A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 100~240
Input Frequency: 50/60Hz
Output
Output Voltage: 5~89, 9~11.9, 12~17.9, 18~23.9, 24~34.9, 35~56
Output Current: 3A, 2A, 1.5A, 1A, 0.75A, 0.51A
Output Power (Watts): 18
Short Circuit Protection: Automatic Recovery
General
Efficiency: Up to 87.30%
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -20 to 85°C
Physical

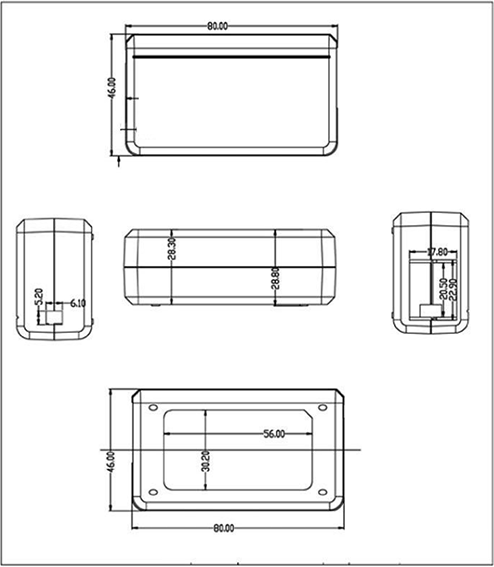

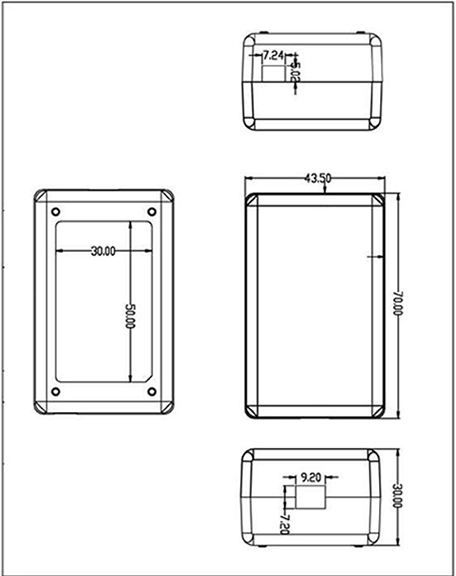

Weight: Case 1: 3.36oz (95.3g)
Case 2: 4.98oz (141.2g)
Dimensions: Case 1: 3.41" x 1.81" x 1.13"
Case 2: 2.76" x 1.71" x 1.81"
Notes & safety
Notes: (1) Output Voltage should be selected within range shown
Device will be limited to the maximum output current rating and/or maximum power for model
A=Case 1; B=Case 2, X in model number stands for AC Inlet and can stand for “1”=C14 or “2”=C6
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: IEC/EN60950-1, UL/CUL60950-1, BSMI, CCC, KC, PSE, SAA
RoHS Compliance: Yes
Energy Star Compliance: Level VI
