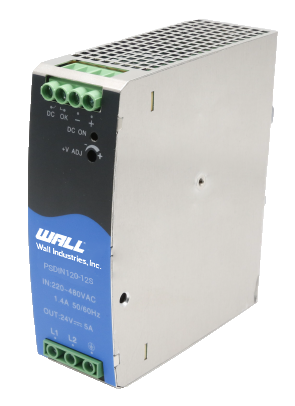

PSDIN120
The PSDIN120 series of AC/DC converters offers 120 watts of power in a 1.61” x 4.33” x 4.88” DIN rail package. This series consists of single output models with a wide input voltage range of either 180-600VAC or 254-848VDC. Each model features high efficiency, high reliability, high I/O isolation test voltage up to 4000VAC, and low ripple and noise. It is protected against output short circuit, over current, over voltage, and over temperature conditions and safety according to UL508, UL61010, EN/IEC62368, and IEC60664.
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSDIN120-12S | Input Voltage: 180-600 | Output Voltage: 12 | Output Current: 10A | Output Power (W): 120 | No. Outputs: S | Case: DIN Rail | Size: 1.61" x 4.33" x 4.88" | Get a Quote |
| PSDIN120-24S | Input Voltage: 180-600 | Output Voltage: 24 | Output Current: 5A | Output Power (W): 120 | No. Outputs: S | Case: DIN Rail | Size: 1.61" x 4.33" x 4.88" | Get a Quote |
| PSDIN120-48S | Input Voltage: 180-600 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 120 | No. Outputs: S | Case: DIN Rail | Size: 1.61" x 4.33" x 4.88" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 230/400 |
| Input Voltage Range: | 180-600 |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 12, 24, 48 |
| Voltage Accuracy: | 12V Output: ±1.5% Typ. 24V/48V Output: ±1.0% Typ. |
| Output Current: | 2.5A, 5A, 10A |
| Output Power (Watts): | 120 |
| Short Circuit Protection: | Constant current hiccup, self-recovery |
| Over Voltage Protection: | See Data Sheet |
| Thermal Protection: | Shutdown Output, Recovery after restart |
| General | |
| Efficiency: | Up to 92% |
| Isolation: | Up to 4000VAC |
| Environmental | |
| Operating Temperature: | -25 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 19.40oz (550g) |

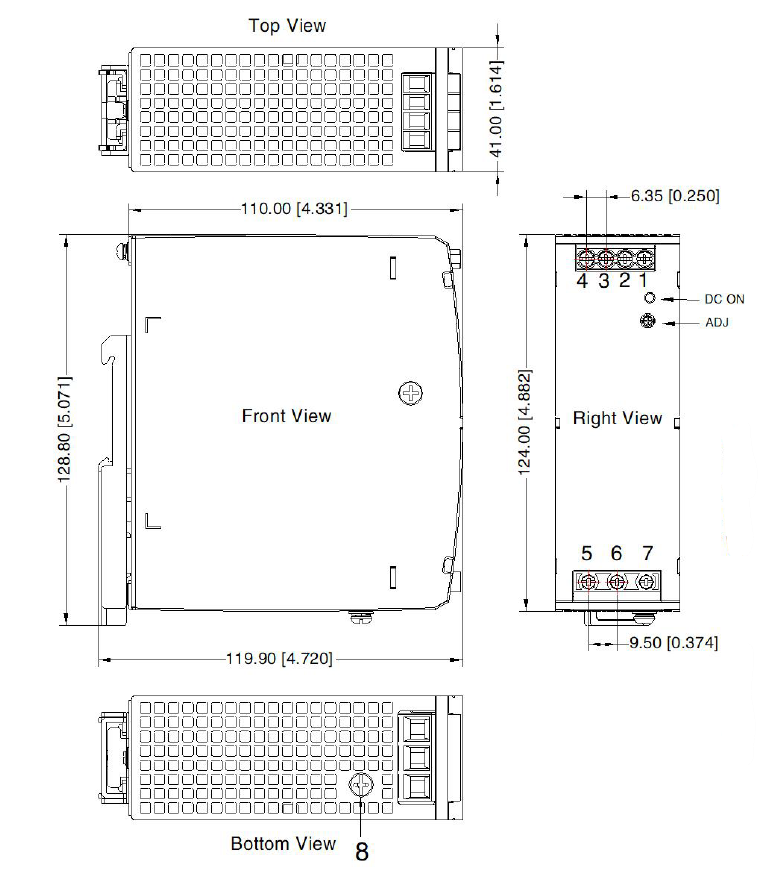

| Dimensions: | 1.61in x 4.33in x 4.88in (41mm x 110mm x 124mm) |
| Case Material: | Metal (AL1100, SPCC, SGCC) |
| Notes & safety | |
| Notes: | 1. The “Tip and barrel method” is used for ripple and noise test, output parallel 47uF electrolytic capacitor and 0.1uF ceramic capacitor. Contact factory for more information. 2. The room temperature derating of 5°C/1000m is needed for operating altitude greater than 2000m. 3. In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability. 4. Customization is available, contact factory for more details. 5. Out case needs to be connected to PE of system when the terminal equipment is in operation. 6. Our products should be classified according to ISO14001 and related environmental laws and regulations and should be handled by qualified units. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | Design Refers to UL508, UL61010, EN/IEC62368, IEC60664 |
| RoHS Compliance: | Yes |
