PSAES60
The PSAES60 series of AC/DC switching power supplies offers up to 60W of output power. All models have a single output and a universal input voltage range of 90~264VAC (120~370VDC). Some features include high efficiency, -40°C to +70°C operating temperature range, and protection against short circuit, over power, and over voltage conditions. These supplies also have UL/cUL 60950 and CE safety approvals. Models are available in open frame (Type O), U-Chassis (Type U), enclosed case (Type C), and DIN rail (Type DN) designs.
• Universal Input Voltage Range: 90~264VAC (120~370VDC)
• High Efficiency
• Open Frame, U-Chassis, Enclosed Case, or DIN Rail Mechanical Options Available
• Over Power, Over Voltage, and Short Circuit Protection
• Single Outputs
• -40ºC to +70ºC Operating Temperature Range
• Cooling by Free Air Convection
• CE and UL60950 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |

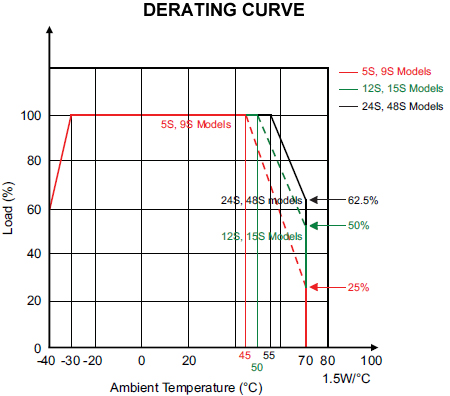

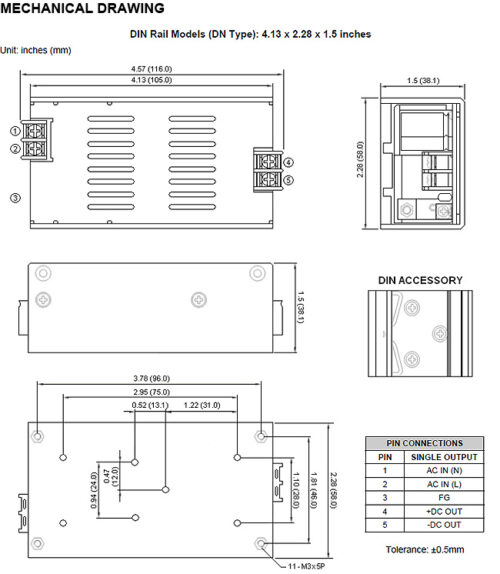

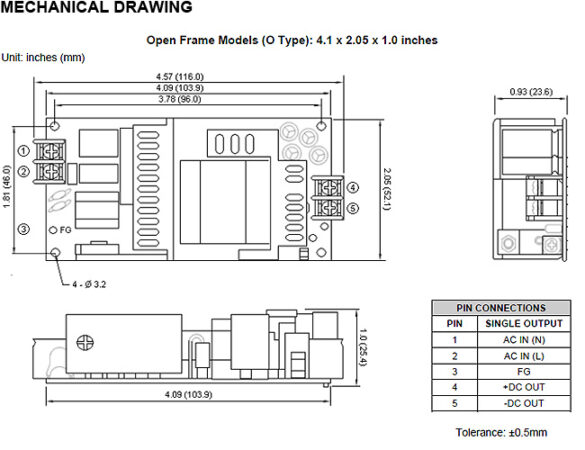

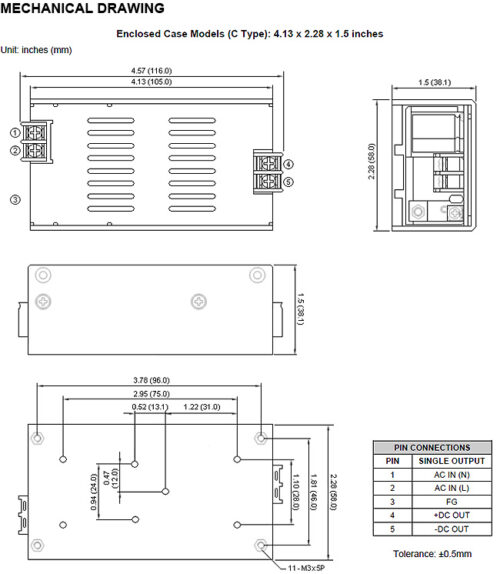

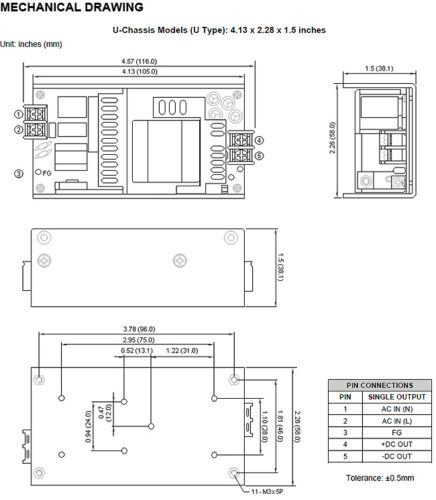

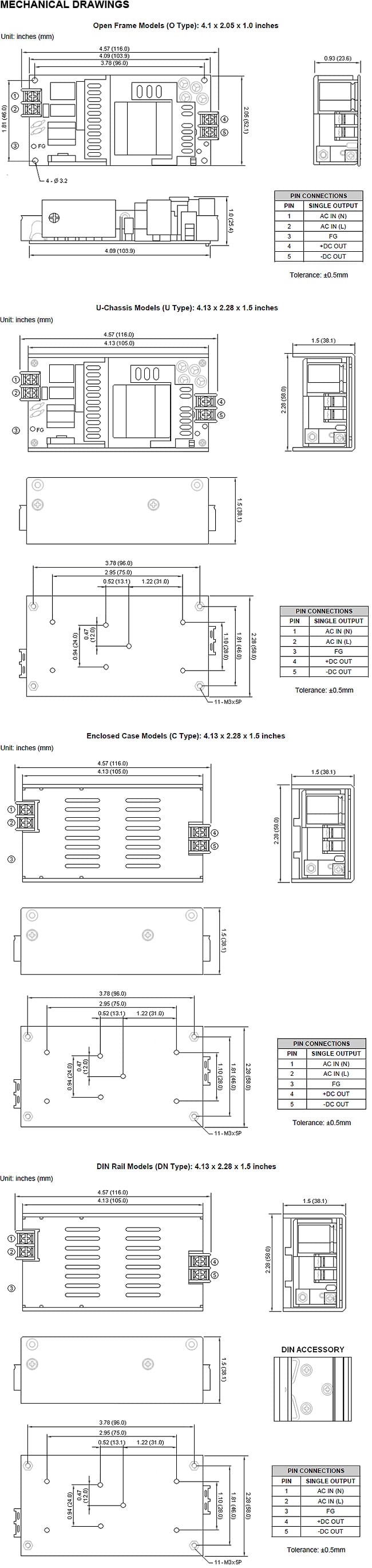

Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSAES60O-5S | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 10A | Output Power (W): 50 | No. Outputs: S | Case: Open Frame | Size: 4.1" x 2.05" x 1.0" | Get a Quote |
| PSAES60U-5S | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 10A | Output Power (W): 50 | No. Outputs: S | Case: U-Chassis | Size: 4.13" x 2.28" x 1.5" | Get a Quote |
| PSAES60C-5S | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 10A | Output Power (W): 50 | No. Outputs: S | Case: Enclosed Case | Size: 4.13" x 2.28" x 1.5" | Get a Quote |
| PSAES60DN-5S | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 10A | Output Power (W): 50 | No. Outputs: S | Case: DIN Rail | Size: 4.13" x 2.28" x 1.5" | Get a Quote |
| PSAES60O-12S | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 5A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4.1" x 2.05" x 1.0" | Get a Quote |
| PSAES60O-15S | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 4A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4.1" x 2.05" x 1.0" | Get a Quote |
| PSAES60O-24S | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 2.5 A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4.1" x 2.05" x 1.0" | Get a Quote |
| PSAES60O-48S | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 1.25 A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4.1" x 2.05" x 1.0" | Get a Quote |
| PSAES60O-9S | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 6.66 A | Output Power (W): 60 | No. Outputs: S | Case: Open Frame | Size: 4.1" x 2.05" x 1.0" | Get a Quote |
| PSAES60U-12S | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 5A | Output Power (W): 60 | No. Outputs: S | Case: U-Chassis | Size: 4.13" x 2.28" x 1.5" | Get a Quote |
| PSAES60U-15S | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 4A | Output Power (W): 60 | No. Outputs: S | Case: U-Chassis | Size: 4.13" x 2.28" x 1.5" | Get a Quote |
| PSAES60U-24S | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 2.5 A | Output Power (W): 60 | No. Outputs: S | Case: U-Chassis | Size: 4.13" x 2.28" x 1.5" | Get a Quote |
| PSAES60U-48S | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 1.25 A | Output Power (W): 60 | No. Outputs: S | Case: U-Chassis | Size: 4.13" x 2.28" x 1.5" | Get a Quote |
| PSAES60U-9S | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 6.66 A | Output Power (W): 60 | No. Outputs: S | Case: U-Chassis | Size: 4.13" x 2.28" x 1.5" | Get a Quote |
| PSAES60C-9S | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 6.66A | Output Power (W): 60 | No. Outputs: S | Case: Enclosed Case | Size: 4.13" x 2.28" x 1.5" | Get a Quote |
| PSAES60C-12S | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 5A | Output Power (W): 60 | No. Outputs: S | Case: Enclosed Case | Size: 4.13" x 2.28" x 1.5" | Get a Quote |
| PSAES60C-15S | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 4A | Output Power (W): 60 | No. Outputs: S | Case: Enclosed Case | Size: 4.13" x 2.28" x 1.5" | Get a Quote |
| PSAES60C-24S | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 2.5A | Output Power (W): 60 | No. Outputs: S | Case: Enclosed Case | Size: 4.13" x 2.28" x 1.5" | Get a Quote |
| PSAES60C-48S | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 1.25A | Output Power (W): 60 | No. Outputs: S | Case: Enclosed Case | Size: 4.13" x 2.28" x 1.5" | Get a Quote |
| PSAES60DN-9S | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 6.66A | Output Power (W): 60 | No. Outputs: S | Case: DIN Rail | Size: 4.13" x 2.28" x 1.5" | Get a Quote |
| PSAES60DN-12S | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 5A | Output Power (W): 60 | No. Outputs: S | Case: DIN Rail | Size: 4.13" x 2.28" x 1.5" | Get a Quote |
| PSAES60DN-15S | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 4A | Output Power (W): 60 | No. Outputs: S | Case: DIN Rail | Size: 4.13" x 2.28" x 1.5" | Get a Quote |
| PSAES60DN-24S | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 2.5A | Output Power (W): 60 | No. Outputs: S | Case: DIN Rail | Size: 4.13" x 2.28" x 1.5" | Get a Quote |
| PSAES60DN-48S | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 1.25A | Output Power (W): 60 | No. Outputs: S | Case: DIN Rail | Size: 4.13" x 2.28" x 1.5" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90 |
| Input Filter: | 264 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 5, 9, 12, 15, 24, 48 |
| Voltage Accuracy: | ±2% |
| Output Current: | 10A, 6.66A, 5A, 4A, 2.5A, 1.25A |
| Output Power (Watts): | 50, 60 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Zener Diode Clamp |
| General | |
| Efficiency: | 86% |
| Isolation: | Input to Output: 3000VAC or 4242VDC |
| Environmental | |
| Operating Temperature: | -40 to 70°C |
| Storage Temperature: | -50 to 85°C |
| Physical | |
| Weight: | O Type: 5.29oz (150g) U Type: 8.47oz (240g) C Type: 9.17oz (260g) DN Type: 9.35oz (265g) |
| Dimensions: | O Type: 4.1" x 2.05" x 1.0" (103.9 x 52.1 x 25.4 mm) U, C, & DN Types: 4.13" x 2.28" x 1.5" (105.0 x 58.0 x 38.1 mm) |
| Notes & safety | |
| Notes: | 1. 4 mechanical options available: open frame (Type O), U-Chassis (Type U), enclosed case (Type C), and DIN rail (Type DN). 2. Ripple & Noise measured at 20MHz of bandwidth with 0.1uF & 47uF parallel capacitor. 3. Strongly recommended to conduct this test with DC voltage. If customer wishes to test with AC voltage, disconnect all Y-Capacitors in supply. 4. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | CE, UL60950 |
