PSMAD65
The PSMAD65 series of AC/DC medical power supplies provides up to 65 Watts of output power in a compact 2 x 3 inch footprint. These supplies feature a universal 85-264VAC (120~370 VDC) input, enabling them to be used anywhere in the world. 5V, 7.5V, 9V, 12V, 15V, 24V, 28V, 36V, 48VDC, 53V outputs voltages are available for this series; all single outputs have a maximum 10% adjustment range. These supplies also feature a low leakage current of less than 75μA at 264VAC and are designed to withstand 4000VAC, input to output. The PSMAD65 series has an operating temperature range of -40°C to +85°C, and a high efficiency up to 93.5%. These supplies are also protected against short circuit, over voltage, and over load conditions. The PSMAD65 series has ANSI/AAMI ES60601-1, EN60601-1, and IEC60601-1 medical approvals, are CE Marked, and meet the conducted and radiated EMI requirements of EN55011, EN55022 and FCC Part 18. The series is Energy Star Energy Level VI and RoHs II compliant. Open frame, U-chassis, enclosed type, and DIN rail mechanical options are available. Class I and Class II protection types are also available.
• Universal Input Voltage Range of 85~264VAC
• Compact ~3 x ~2 Inch Frame
• Low Standby Power Consumption
• Built-In Class B EMI Filter
• Output Voltages Ranging from 5VDC to 53VDC
• 4000VAC Input to Output 2MOPP Insulation
• Low Leakage Current
• Protection Type Class I and Class II
• RoHS Compliant
• Level VI Compliant
• High Operating Altitude of 5000M
• IEC/EN/ANSI/AAMI/ES 60601-1 & IEC/EN/UL 60950-1 Edition Safety Approvals
• Over Voltage, Over Load, and Short Circuit Protection
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSMAD65-05S-O | Input Voltage: 85~264 | Output Voltage: 5 | Output Current: 10A | Output Power (W): 50 | No. Outputs: S | Case: Open Frame | Size: 3" x 2" x 0.94" | Get a Quote |
| PSMAD65-05S-U | Input Voltage: 85~264 | Output Voltage: 5 | Output Current: 10A | Output Power (W): 50 | No. Outputs: S | Case: U-Chassis | Size: 3.53" x 2.38" x 1.31" | Get a Quote |
| PSMAD65-05S-C | Input Voltage: 85~264 | Output Voltage: 5 | Output Current: 10A | Output Power (W): 50 | No. Outputs: S | Case: Enclosed Case | Size: 3.53" x 2.38" x 1.31" | Get a Quote |
| PSMAD65-05S-D | Input Voltage: 85~264 | Output Voltage: 5 | Output Current: 10A | Output Power (W): 50 | No. Outputs: S | Case: DIN Rail | Size: 3.67" x 2.37" x 1.31" | Get a Quote |
| PSMAD65-7.5S-O | Input Voltage: 85~264 | Output Voltage: 7.5 | Output Current: 8.67A | Output Power (W): 65 | No. Outputs: S | Case: Open Frame | Size: 3" x 2" x 0.94" | Get a Quote |
| PSMAD65-7.5S-U | Input Voltage: 85~264 | Output Voltage: 7.5 | Output Current: 8.67A | Output Power (W): 65 | No. Outputs: S | Case: U-Chassis | Size: 3.53" x 2.38" x 1.31" | Get a Quote |
| PSMAD65-7.5S-C | Input Voltage: 85~264 | Output Voltage: 7.5 | Output Current: 8.67A | Output Power (W): 65 | No. Outputs: S | Case: Enclosed Case | Size: 3.53" x 2.38" x 1.31" | Get a Quote |
| PSMAD65-7.5S-D | Input Voltage: 85~264 | Output Voltage: 7.5 | Output Current: 8.67A | Output Power (W): 65 | No. Outputs: S | Case: DIN Rail | Size: 3.67" x 2.37" x 1.31" | Get a Quote |
| PSMAD65-09S-O | Input Voltage: 85~264 | Output Voltage: 9 | Output Current: 7.23A | Output Power (W): 65 | No. Outputs: S | Case: Open Frame | Size: 3" x 2" x 0.94" | Get a Quote |
| PSMAD65-09S-U | Input Voltage: 85~264 | Output Voltage: 9 | Output Current: 7.23A | Output Power (W): 65 | No. Outputs: S | Case: U-Chassis | Size: 3.53" x 2.38" x 1.31" | Get a Quote |
| PSMAD65-09S-C | Input Voltage: 85~264 | Output Voltage: 9 | Output Current: 7.23A | Output Power (W): 65 | No. Outputs: S | Case: Enclosed Case | Size: 3.53" x 2.38" x 1.31" | Get a Quote |
| PSMAD65-09S-D | Input Voltage: 85~264 | Output Voltage: 9 | Output Current: 7.23A | Output Power (W): 65 | No. Outputs: S | Case: DIN Rail | Size: 3.67" x 2.37" x 1.31" | Get a Quote |
| PSMAD65-12S-O | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 5.42A | Output Power (W): 65 | No. Outputs: S | Case: Open Frame | Size: 3" x 2" x 0.94" | Get a Quote |
| PSMAD65-12S-U | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 5.42A | Output Power (W): 65 | No. Outputs: S | Case: U-Chassis | Size: 3.53" x 2.38" x 1.31" | Get a Quote |
| PSMAD65-12S-C | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 5.42A | Output Power (W): 65 | No. Outputs: S | Case: Enclosed Case | Size: 3.53" x 2.38" x 1.31" | Get a Quote |
| PSMAD65-12S-D | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 5.42A | Output Power (W): 65 | No. Outputs: S | Case: DIN Rail | Size: 3.67" x 2.37" x 1.31" | Get a Quote |
| PSMAD65-15S-O | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 4.34A | Output Power (W): 65 | No. Outputs: S | Case: Open Frame | Size: 3" x 2" x 0.94" | Get a Quote |
| PSMAD65-15S-U | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 4.34A | Output Power (W): 65 | No. Outputs: S | Case: U-Chassis | Size: 3.53" x 2.38" x 1.31" | Get a Quote |
| PSMAD65-15S-C | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 4.34A | Output Power (W): 65 | No. Outputs: S | Case: Enclosed Case | Size: 3.53" x 2.38" x 1.31" | Get a Quote |
| PSMAD65-15S-D | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 4.34A | Output Power (W): 65 | No. Outputs: S | Case: DIN Rail | Size: 3.67" x 2.37" x 1.31" | Get a Quote |
| PSMAD65-24S-O | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 2.71A | Output Power (W): 65 | No. Outputs: S | Case: Open Frame | Size: 3" x 2" x 0.94" | Get a Quote |
| PSMAD65-24S-U | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 2.71A | Output Power (W): 65 | No. Outputs: S | Case: U-Chassis | Size: 3.53" x 2.38" x 1.31" | Get a Quote |
| PSMAD65-24S-C | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 2.71A | Output Power (W): 65 | No. Outputs: S | Case: Enclosed Case | Size: 3.53" x 2.38" x 1.31" | Get a Quote |
| PSMAD65-24S-D | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 2.71A | Output Power (W): 65 | No. Outputs: S | Case: DIN Rail | Size: 3.67" x 2.37" x 1.31" | Get a Quote |
| PSMAD65-241S-O | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 2.71A | Output Power (W): 65 | No. Outputs: S | Case: Open Frame | Size: 3" x 2" x 0.94" | Get a Quote |
| PSMAD65-241S-U | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 2.71A | Output Power (W): 65 | No. Outputs: S | Case: U-Chassis | Size: 3.53" x 2.38" x 1.31" | Get a Quote |
| PSMAD65-241S-C | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 2.71A | Output Power (W): 65 | No. Outputs: S | Case: Enclosed Case | Size: 3.53" x 2.38" x 1.31" | Get a Quote |
| PSMAD65-241S-D | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 2.71A | Output Power (W): 65 | No. Outputs: S | Case: DIN Rail | Size: 3.67" x 2.37" x 1.31" | Get a Quote |
| PSMAD65-28S-O | Input Voltage: 85~264 | Output Voltage: 28 | Output Current: 2.33A | Output Power (W): 65 | No. Outputs: S | Case: Open Frame | Size: 3" x 2" x 0.94" | Get a Quote |
| PSMAD65-28S-U | Input Voltage: 85~264 | Output Voltage: 28 | Output Current: 2.33A | Output Power (W): 65 | No. Outputs: S | Case: U-Chassis | Size: 3.53" x 2.38" x 1.31" | Get a Quote |
| PSMAD65-28S-C | Input Voltage: 85~264 | Output Voltage: 28 | Output Current: 2.33A | Output Power (W): 65 | No. Outputs: S | Case: Enclosed Case | Size: 3.53" x 2.38" x 1.31" | Get a Quote |
| PSMAD65-28S-D | Input Voltage: 85~264 | Output Voltage: 28 | Output Current: 2.33A | Output Power (W): 65 | No. Outputs: S | Case: DIN Rail | Size: 3.67" x 2.37" x 1.31" | Get a Quote |
| PSMAD65-281S-O | Input Voltage: 85~264 | Output Voltage: 28 | Output Current: 2.33A | Output Power (W): 65 | No. Outputs: S | Case: Open Frame | Size: 3" x 2" x 0.94" | Get a Quote |
| PSMAD65-281S-U | Input Voltage: 85~264 | Output Voltage: 28 | Output Current: 2.33A | Output Power (W): 65 | No. Outputs: S | Case: U-Chassis | Size: 3.53" x 2.38" x 1.31" | Get a Quote |
| PSMAD65-281S-C | Input Voltage: 85~264 | Output Voltage: 28 | Output Current: 2.33A | Output Power (W): 65 | No. Outputs: S | Case: Enclosed Case | Size: 3.53" x 2.38" x 1.31" | Get a Quote |
| PSMAD65-281S-D | Input Voltage: 85~264 | Output Voltage: 28 | Output Current: 2.33A | Output Power (W): 65 | No. Outputs: S | Case: DIN Rail | Size: 3.67" x 2.37" x 1.31" | Get a Quote |
| PSMAD65-36S-O | Input Voltage: 85~264 | Output Voltage: 36 | Output Current: 1.81A | Output Power (W): 65 | No. Outputs: S | Case: Open Frame | Size: 3" x 2" x 0.94" | Get a Quote |
| PSMAD65-36S-U | Input Voltage: 85~264 | Output Voltage: 36 | Output Current: 1.81A | Output Power (W): 65 | No. Outputs: S | Case: U-Chassis | Size: 3.53" x 2.38" x 1.31" | Get a Quote |
| PSMAD65-36S-C | Input Voltage: 85~264 | Output Voltage: 36 | Output Current: 1.81A | Output Power (W): 65 | No. Outputs: S | Case: Enclosed Case | Size: 3.53" x 2.38" x 1.31" | Get a Quote |
| PSMAD65-36S-D | Input Voltage: 85~264 | Output Voltage: 36 | Output Current: 1.81A | Output Power (W): 65 | No. Outputs: S | Case: DIN Rail | Size: 3.67" x 2.37" x 1.31" | Get a Quote |
| PSMAD65-48S-O | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 1.36A | Output Power (W): 65 | No. Outputs: S | Case: Open Frame | Size: 3" x 2" x 0.94" | Get a Quote |
| PSMAD65-48S-U | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 1.36A | Output Power (W): 65 | No. Outputs: S | Case: U-Chassis | Size: 3.53" x 2.38" x 1.31" | Get a Quote |
| PSMAD65-48S-C | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 1.36A | Output Power (W): 65 | No. Outputs: S | Case: Enclosed Case | Size: 3.53" x 2.38" x 1.31" | Get a Quote |
| PSMAD65-48S-D | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 1.36A | Output Power (W): 65 | No. Outputs: S | Case: DIN Rail | Size: 3.67" x 2.37" x 1.31" | Get a Quote |
| PSMAD65-53S-O | Input Voltage: 85~264 | Output Voltage: 53 | Output Current: 1.24A | Output Power (W): 65 | No. Outputs: S | Case: Open Frame | Size: 3" x 2" x 0.94" | Get a Quote |
| PSMAD65-53S-U | Input Voltage: 85~264 | Output Voltage: 53 | Output Current: 1.24A | Output Power (W): 65 | No. Outputs: S | Case: U-Chassis | Size: 3.53" x 2.38" x 1.31" | Get a Quote |
| PSMAD65-53S-C | Input Voltage: 85~264 | Output Voltage: 53 | Output Current: 1.24A | Output Power (W): 65 | No. Outputs: S | Case: Enclosed Case | Size: 3.53" x 2.38" x 1.31" | Get a Quote |
| PSMAD65-53S-D | Input Voltage: 85~264 | Output Voltage: 53 | Output Current: 1.24A | Output Power (W): 65 | No. Outputs: S | Case: DIN Rail | Size: 3.67" x 2.37" x 1.31" | Get a Quote |
| PSMAD65-18S-O | Input Voltage: 85~264 | Output Voltage: 18 | Output Current: 3.62A | Output Power (W): 65 | No. Outputs: S | Case: Open Frame | Size: 3" x 2" x 0.94" | Get a Quote |
| PSMAD65-18S-U | Input Voltage: 85~264 | Output Voltage: 18 | Output Current: 3.62A | Output Power (W): 65 | No. Outputs: S | Case: U-Chassis | Size: 3.53" x 2.38" x 1.31" | Get a Quote |
| PSMAD65-18S-C | Input Voltage: 85~264 | Output Voltage: 18 | Output Current: 3.62A | Output Power (W): 65 | No. Outputs: S | Case: Enclosed Case | Size: 3.53" x 2.38" x 1.31" | Get a Quote |
| PSMAD65-18S-D | Input Voltage: 85~264 | Output Voltage: 18 | Output Current: 3.62A | Output Power (W): 65 | No. Outputs: S | Case: DIN Rail | Size: 3.67" x 2.37" x 1.31" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5, 7.5, 9, 12, 15, 18, 24, 28, 36, 48, 53 |
| Voltage Accuracy: | ±1.0% |
| Output Current: | 1.24A, 1.36A, 1.81A, 2.33A, 2.71A, 3.62A, 4.34A, 5.42A, 7.23A, 8.67A, 10A |
| Output Power (Watts): | 50, 65 |
| Output Trim/Adjustability: | 53V: ±20% All other outputs: ±10% |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | 125-140% |
| General | |
| Efficiency: | Up to 93.50% |
| Isolation: | 4000VAC |
| Environmental | |
| Operating Temperature: | -40 to 85°C with derating |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | O Type: 4.13oz U Type: 5.54oz C Type: 6.07oz D Type: 6.81oz |

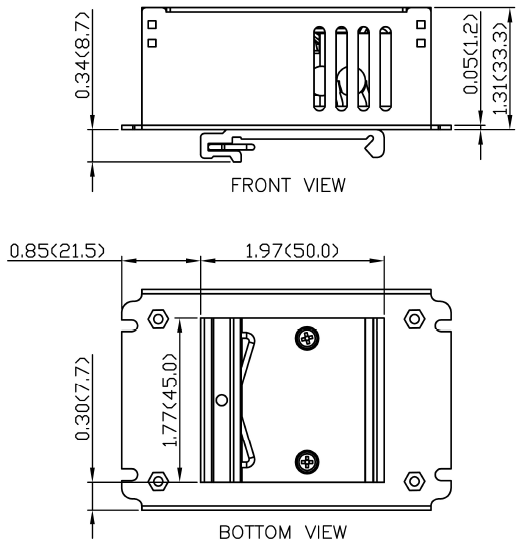

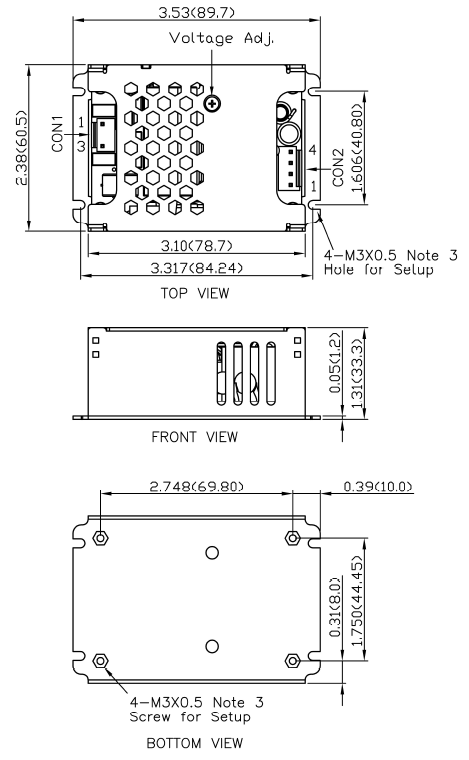

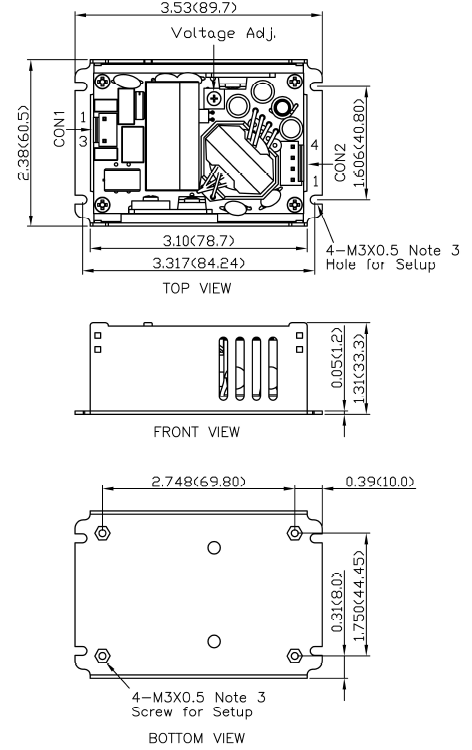

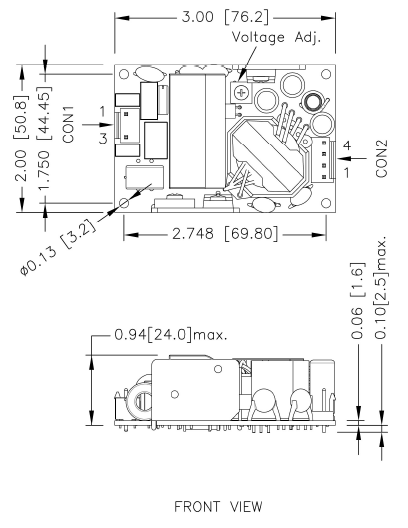

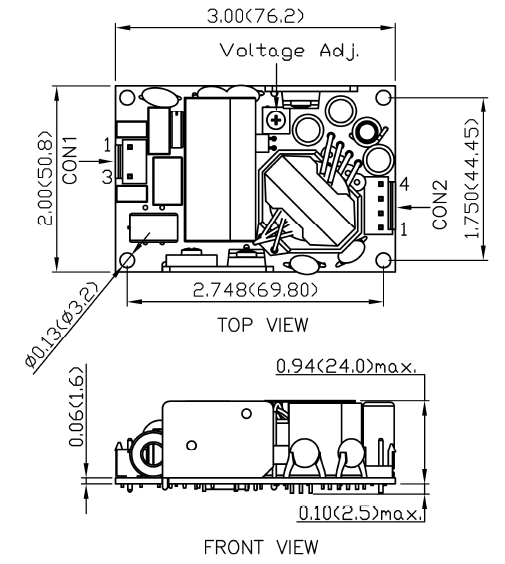

| Dimensions: | O Type: 3in x 2in x 0.94in (76.2mm x 50.8mm x 24mm) U Type & C Type: 3.53in x 2.38in x 1.31in (89.7mm x 60.5mm x 33.3mm) D Type: 3.67in x 2.37in x 1.31in (93mm x 60.4mm x 33.3mm) |
| Notes & safety | |
| Notes: | (1) The last letter in model name indicates package type: “O”= Open Type, “U”= U Chassis Type, “C”= Enclosed Type, or “D”= Din Rail Type. Add “1” after “S” to indicate Protection Type Class II. Ex: PSMAD65-24S1-X (2) Output Current @Convention cooled 60ºC Ta (3) External components may be required for class I application. (4) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | IEC/EN/ANSI/AAMI/ES 60601-1, IEC/EN/UL 60950-1 |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level VI |
