PSMAD40

The PSMAD40 series of AC/DC medical power supplies provides 40 watts of output power in a compact 2 x 3 inch footprint. These supplies feature a universal 85-264VAC (120~370 VDC) input, enabling them to be used anywhere in the world. 5V, 7.5V, 9V, 12V, 15V, 18V, 24V, 28V, 36V, 48V, and 53V single output voltages are available for this series, all of which have a maximum 10% adjustment range. These supplies also feature a low leakage current of less than 75μA at 264VAC and are designed to withstand 4000VAC, input to output. The PSMAD40 series has an operating temperature range of -40°C to +85°C, and a high efficiency up to 93%. These supplies are also protected against short circuit, over voltage, and over load conditions. The PSMAD40 series has IEC/EN/ANSI/AAMI ES60601-1 UL:E360199 and IEC/EN/UL 60950-1 CB:UL (Demko) safety approvals, is CE marked, and meets the conducted and radiated EMI requirements of EN55011, EN55032, EN60601-1-2 and FCC Part 18/15. Open frame, U-chassis, enclosed case, and DIN rail mechanical options are available. Class I and Class II protection types and 3 connector types are also available.

• Wide Input Voltage Range of 85 to 264VAC, 47 to 63Hz • Built-In Class B EMI Filter • Adjustable Output Voltage • 4000VAC Reinforced Insulation • 2xMOPP • Protection Type Class I and Class II • Low Leakage Current Under 75µA • Operating Altitude of 5000M • IEC/EN/ANSI/AAMI ES60601-1 UL:E360199 and IEC/EN/UL 60950-1 CB:UL (Demko) Safety Approvals • Over Voltage, Over Load, and Short Circuit Protection • CE Marked • RoHS and REACH Compliant

Get a Quote Request a Sample Custom Solutions

Models
Specifications

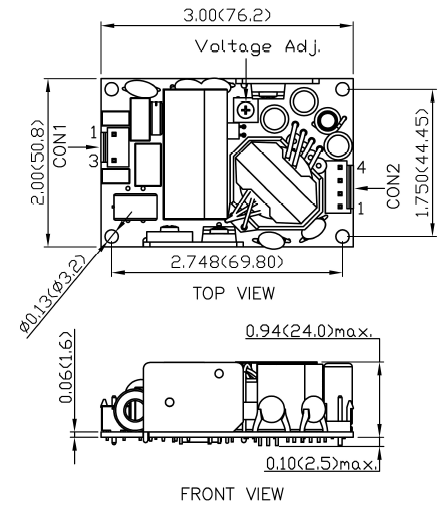

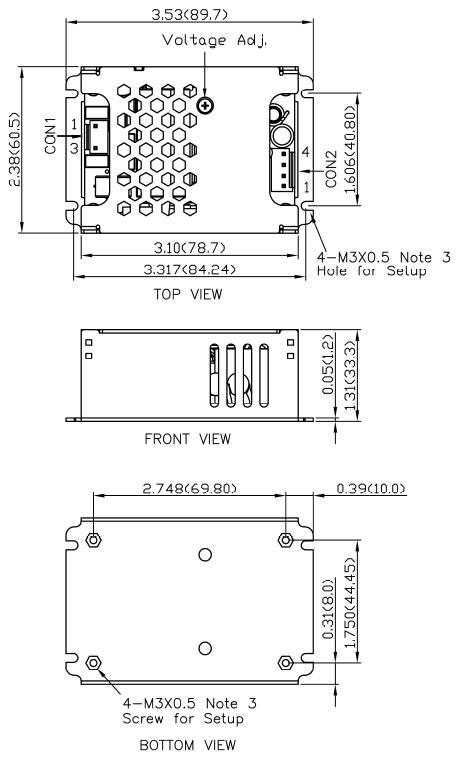

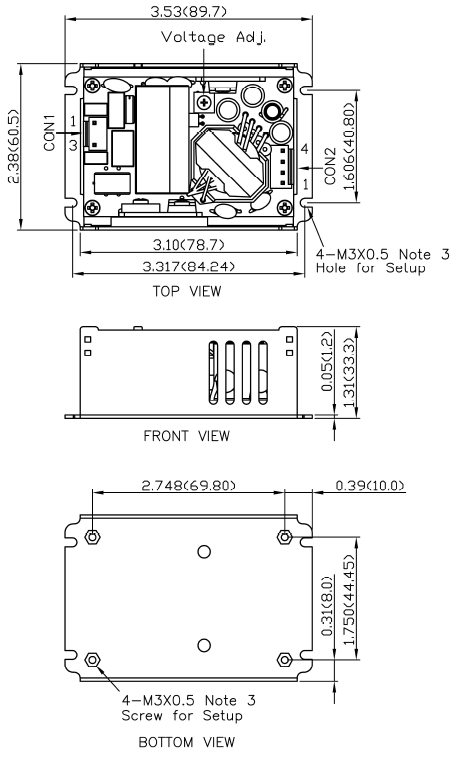

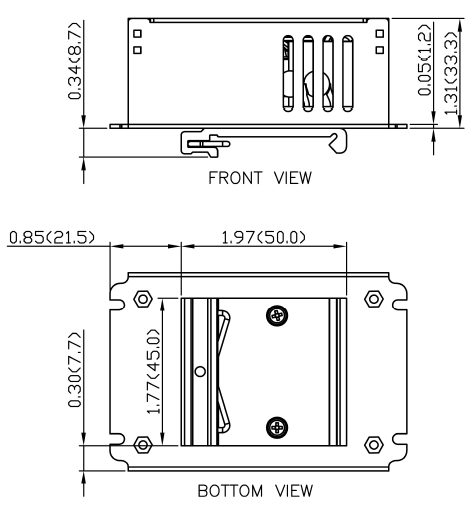

Drawings

Model Number	Input Voltage	Output Voltage	Output Current	Output Power (W)	No. Outputs	Case	Size
PSMAD40-05S-O	Input Voltage: 85~264	Output Voltage: 5	Output Current: 8A	Output Power (W): 40	No. Outputs: S	Case: Open Frame	Size: 3" x 2" x 1.04"	Get a Quote
PSMAD40-05S-U	Input Voltage: 85~264	Output Voltage: 5	Output Current: 8A	Output Power (W): 40	No. Outputs: S	Case: U-Chassis	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSMAD40-05S-C	Input Voltage: 85~264	Output Voltage: 5	Output Current: 8A	Output Power (W): 40	No. Outputs: S	Case: Enclosed Case	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSMAD40-05S-DN	Input Voltage: 85~264	Output Voltage: 5	Output Current: 8A	Output Power (W): 40	No. Outputs: S	Case: DIN Rail	Size: 3.67" x 2.37" x 1.31"	Get a Quote
PSMAD40-075S-O	Input Voltage: 85~264	Output Voltage: 7.5	Output Current: 5.34A	Output Power (W): 40	No. Outputs: S	Case: Open Frame	Size: 3" x 2" x 1.04"	Get a Quote
PSMAD40-075S-U	Input Voltage: 85~264	Output Voltage: 7.5	Output Current: 5.34A	Output Power (W): 40	No. Outputs: S	Case: U-Chassis	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSMAD40-075S-C	Input Voltage: 85~264	Output Voltage: 7.5	Output Current: 5.34A	Output Power (W): 40	No. Outputs: S	Case: Enclosed Case	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSMAD40-075S-DN	Input Voltage: 85~264	Output Voltage: 7.5	Output Current: 5.34A	Output Power (W): 40	No. Outputs: S	Case: DIN Rail	Size: 3.67" x 2.37" x 1.31"	Get a Quote
PSMAD40-09S-O	Input Voltage: 85~264	Output Voltage: 9	Output Current: 4.45A	Output Power (W): 40	No. Outputs: S	Case: Open Frame	Size: 3" x 2" x 1.04"	Get a Quote
PSMAD40-09S-U	Input Voltage: 85~264	Output Voltage: 9	Output Current: 4.45A	Output Power (W): 40	No. Outputs: S	Case: U-Chassis	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSMAD40-09S-C	Input Voltage: 85~264	Output Voltage: 9	Output Current: 4.45A	Output Power (W): 40	No. Outputs: S	Case: Enclosed Case	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSMAD40-09S-DN	Input Voltage: 85~264	Output Voltage: 9	Output Current: 4.45A	Output Power (W): 40	No. Outputs: S	Case: DIN Rail	Size: 3.67" x 2.37" x 1.31"	Get a Quote
PSMAD40-12S-O	Input Voltage: 85~264	Output Voltage: 12	Output Current: 3.34A	Output Power (W): 40	No. Outputs: S	Case: Open Frame	Size: 3" x 2" x 1.04"	Get a Quote
PSMAD40-12S-U	Input Voltage: 85~264	Output Voltage: 12	Output Current: 3.34A	Output Power (W): 40	No. Outputs: S	Case: U-Chassis	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSMAD40-12S-C	Input Voltage: 85~264	Output Voltage: 12	Output Current: 3.34A	Output Power (W): 40	No. Outputs: S	Case: Enclosed Case	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSMAD40-12S-DN	Input Voltage: 85~264	Output Voltage: 12	Output Current: 3.34A	Output Power (W): 40	No. Outputs: S	Case: DIN Rail	Size: 3.67" x 2.37" x 1.31"	Get a Quote
PSMAD40-12S1-O	Input Voltage: 85~264	Output Voltage: 12	Output Current: 3.34A	Output Power (W): 40	No. Outputs: S	Case: Open Frame	Size: 3" x 2" x 1.04"	Get a Quote
PSMAD40-12S1-U	Input Voltage: 85~264	Output Voltage: 12	Output Current: 3.34A	Output Power (W): 40	No. Outputs: S	Case: U-Chassis	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSMAD40-12S1-C	Input Voltage: 85~264	Output Voltage: 12	Output Current: 3.34A	Output Power (W): 40	No. Outputs: S	Case: Enclosed Case	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSMAD40-12S1-DN	Input Voltage: 85~264	Output Voltage: 12	Output Current: 3.34A	Output Power (W): 40	No. Outputs: S	Case: DIN Rail	Size: 3.67" x 2.37" x 1.31"	Get a Quote
PSMAD40-15S-O	Input Voltage: 85~264	Output Voltage: 15	Output Current: 2.67A	Output Power (W): 40	No. Outputs: S	Case: Open Frame	Size: 3" x 2" x 1.04"	Get a Quote
PSMAD40-15S-U	Input Voltage: 85~264	Output Voltage: 15	Output Current: 2.67A	Output Power (W): 40	No. Outputs: S	Case: U-Chassis	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSMAD40-15S-C	Input Voltage: 85~264	Output Voltage: 15	Output Current: 2.67A	Output Power (W): 40	No. Outputs: S	Case: Enclosed Case	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSMAD40-15S-DN	Input Voltage: 85~264	Output Voltage: 15	Output Current: 2.67A	Output Power (W): 40	No. Outputs: S	Case: DIN Rail	Size: 3.67" x 2.37" x 1.31"	Get a Quote
PSMAD40-15S1-O	Input Voltage: 85~264	Output Voltage: 15	Output Current: 2.67A	Output Power (W): 40	No. Outputs: S	Case: Open Frame	Size: 3" x 2" x 1.04"	Get a Quote
PSMAD40-15S1-U	Input Voltage: 85~264	Output Voltage: 15	Output Current: 2.67A	Output Power (W): 40	No. Outputs: S	Case: U-Chassis	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSMAD40-15S1-C	Input Voltage: 85~264	Output Voltage: 15	Output Current: 2.67A	Output Power (W): 40	No. Outputs: S	Case: Enclosed Case	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSMAD40-15S1-DN	Input Voltage: 85~264	Output Voltage: 15	Output Current: 2.67A	Output Power (W): 40	No. Outputs: S	Case: DIN Rail	Size: 3.67" x 2.37" x 1.31"	Get a Quote
PSMAD40-24S-O	Input Voltage: 85~264	Output Voltage: 24	Output Current: 1.67A	Output Power (W): 40	No. Outputs: S	Case: Open Frame	Size: 3" x 2" x 1.04"	Get a Quote
PSMAD40-24S-U	Input Voltage: 85~264	Output Voltage: 24	Output Current: 1.67A	Output Power (W): 40	No. Outputs: S	Case: U-Chassis	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSMAD40-24S-C	Input Voltage: 85~264	Output Voltage: 24	Output Current: 1.67A	Output Power (W): 40	No. Outputs: S	Case: Enclosed Case	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSMAD40-24S-DN	Input Voltage: 85~264	Output Voltage: 24	Output Current: 1.67A	Output Power (W): 40	No. Outputs: S	Case: DIN Rail	Size: 3.67" x 2.37" x 1.31"	Get a Quote
PSMAD40-28S-O	Input Voltage: 85~264	Output Voltage: 28	Output Current: 1.43A	Output Power (W): 40	No. Outputs: S	Case: Open Frame	Size: 3" x 2" x 1.04"	Get a Quote
PSMAD40-28S-U	Input Voltage: 85~264	Output Voltage: 28	Output Current: 1.43A	Output Power (W): 40	No. Outputs: S	Case: U-Chassis	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSMAD40-28S-C	Input Voltage: 85~264	Output Voltage: 28	Output Current: 1.43A	Output Power (W): 40	No. Outputs: S	Case: Enclosed Case	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSMAD40-28S-DN	Input Voltage: 85~264	Output Voltage: 28	Output Current: 1.43A	Output Power (W): 40	No. Outputs: S	Case: DIN Rail	Size: 3.67" x 2.37" x 1.31"	Get a Quote
PSMAD40-36S-O	Input Voltage: 85~264	Output Voltage: 36	Output Current: 1.12A	Output Power (W): 40	No. Outputs: S	Case: Open Frame	Size: 3" x 2" x 1.04"	Get a Quote
PSMAD40-36S-U	Input Voltage: 85~264	Output Voltage: 36	Output Current: 1.12A	Output Power (W): 40	No. Outputs: S	Case: U-Chassis	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSMAD40-36S-C	Input Voltage: 85~264	Output Voltage: 36	Output Current: 1.12A	Output Power (W): 40	No. Outputs: S	Case: Enclosed Case	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSMAD40-36S-DN	Input Voltage: 85~264	Output Voltage: 36	Output Current: 1.12A	Output Power (W): 40	No. Outputs: S	Case: DIN Rail	Size: 3.67" x 2.37" x 1.31"	Get a Quote
PSMAD40-48S-O	Input Voltage: 85~264	Output Voltage: 48	Output Current: 0.84A	Output Power (W): 40	No. Outputs: S	Case: Open Frame	Size: 3" x 2" x 1.04"	Get a Quote
PSMAD40-48S-U	Input Voltage: 85~264	Output Voltage: 48	Output Current: 0.84A	Output Power (W): 40	No. Outputs: S	Case: U-Chassis	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSMAD40-48S-C	Input Voltage: 85~264	Output Voltage: 48	Output Current: 0.84A	Output Power (W): 40	No. Outputs: S	Case: Enclosed Case	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSMAD40-48S-DN	Input Voltage: 85~264	Output Voltage: 48	Output Current: 0.84A	Output Power (W): 40	No. Outputs: S	Case: DIN Rail	Size: 3.67" x 2.37" x 1.31"	Get a Quote
PSMAD40-53S-O	Input Voltage: 85~264	Output Voltage: 53	Output Current: 0.77A	Output Power (W): 40	No. Outputs: S	Case: Open Frame	Size: 3" x 2" x 1.04"	Get a Quote
PSMAD40-53S-U	Input Voltage: 85~264	Output Voltage: 53	Output Current: 0.77A	Output Power (W): 40	No. Outputs: S	Case: U-Chassis	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSMAD40-53S-C	Input Voltage: 85~264	Output Voltage: 53	Output Current: 0.77A	Output Power (W): 40	No. Outputs: S	Case: Enclosed Case	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSMAD40-53S-DN	Input Voltage: 85~264	Output Voltage: 53	Output Current: 0.77A	Output Power (W): 40	No. Outputs: S	Case: DIN Rail	Size: 3.67" x 2.37" x 1.31"	Get a Quote
PSMAD40-18S-O	Input Voltage: 85~264	Output Voltage: 18	Output Current: 2.23A	Output Power (W): 40	No. Outputs: S	Case: Open Frame	Size: 3" x 2" x 1.04"	Get a Quote
PSMAD40-18S-U	Input Voltage: 85~264	Output Voltage: 18	Output Current: 2.23A	Output Power (W): 40	No. Outputs: S	Case: U-Chassis	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSMAD40-18S-C	Input Voltage: 85~264	Output Voltage: 18	Output Current: 2.23A	Output Power (W): 40	No. Outputs: S	Case: Enclosed Case	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSMAD40-18S-DN	Input Voltage: 85~264	Output Voltage: 18	Output Current: 2.23A	Output Power (W): 40	No. Outputs: S	Case: DIN Rail	Size: 3.67" x 2.37" x 1.31"	Get a Quote

Specification	Value
Input
Input Voltage (Nominal):	115/230
Input Voltage Range:	85~264
Input Frequency:	47-63Hz
Output
Output Voltage:	5, 7.5, 9, 12, 15, 18, 24, 28, 36, 48, 53
Voltage Accuracy:	±1.0%
Output Current:	8A, 5.34A, 4.45A, 3.34A, 2.67A, 2.23A, 1.67A, 1.43A, 1.12A, 0.84A, 0.77A
Output Power (Watts):	40
Output Trim/Adjustability:	53V Single Output Models: -20 to 10% Other Single Output Models: ±10%
Short Circuit Protection:	Continuous, Automatic Recovery
Over Voltage Protection:	125-140%
General
Efficiency:	Up to 93%
Isolation:	4000VAC
Environmental
Operating Temperature:	-40 to 85°C
Storage Temperature:	-40 to 85°C
Physical
Weight:	O Type: 4.02oz C Type: 5.96oz U Type: 5.43oz DN Type: 6.70oz
Dimensions:	O Type: 3" x 2" x 1.04" (76.2mm x 50.8mm x 26.5mm) U Type & C Type: 3.53" x 2.38" x 1.31" (89.7mm x 60.5mm x 33.3mm) DN Type: 3.67" x 2.37" x 1.31" (3.67mm x 2.37mm x 33.3mm)
Notes & safety
Notes:	(1) The “x” in the model number indicates the optional package type. “x” can either be “O” for Open Frame Type, “C” for Enclosed Type, “U” for U-Chassis Type, or “DN” for Din Rail Type. (2) Please note that PSMAD40-12S-x and PSMAD40-15S-x have higher efficiency than PSMAD40-12S1-x and PSMAD40-12S1-x. This allows for higher ambient temperature operation. (3) This product is Listed to applicable standards and requirements by UL. (4) External components may be required for class I application. Due to advances in technology, specifications are subject to change without notice.
Safety Approvals:	IEC/EN/ANSI/AAMI ES 60601-1 UL: E360199, IEC/EN/UL 60950-1 CB:UL(Demko)
RoHS Compliance:	Yes
