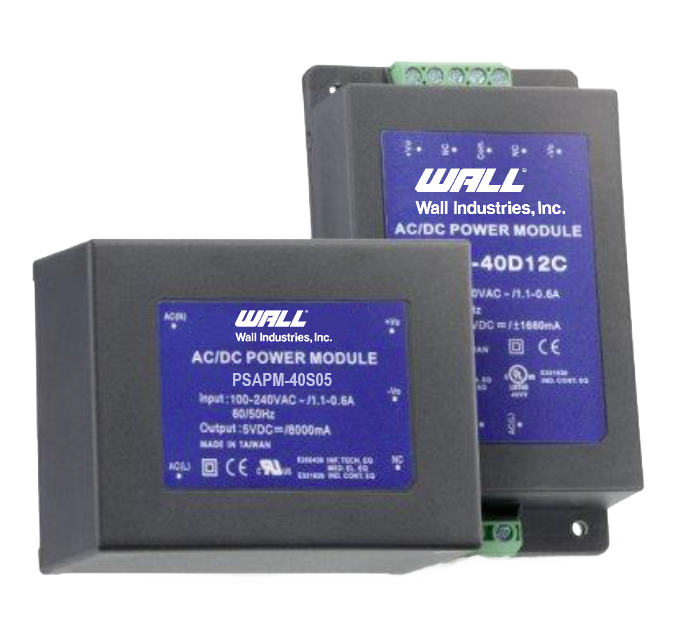

PSAPM-40
The PSAPM-40 series of AC/DC industrial and medical power modules offers 40 watts of output power in a fully encapsulated plastic PCB, chassis, or DIN Rail mounted case. This series consists of single and dual output models with universal input voltage range of 85-264VAC and I/O isolation of 4000VAC with reinforced isolation. Each model in this series is RoHS & REACH compliant, has over load, over current, and short circuit protection, and has industrial and medical safety approvals. Please call factory for order details.
• Universal Input 85-264VAC
• Fully Encapsulated Plastic Case for PCB, Chassis, and DIN Rail Mounting
Protection Class II as per IEC/EN60536
• Over Load, Over Current, and Short Circuit Protection
• RoHS & REACH Compliant
• I/O Isolation 4000VAC with Reinforced Isolation
• Industrial and Medical Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSAPM-40S05 | Input Voltage: 85~264 | Output Voltage: 5 | Output Current: 800mA | Output Power (W): 40 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 1.18" | Get a Quote |
| PSAPM-40S12 | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 3330mA | Output Power (W): 40 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 1.18" | Get a Quote |
| PSAPM-40S15 | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 2660mA | Output Power (W): 40 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 1.18" | Get a Quote |
| PSAPM-40S24 | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 1660mA | Output Power (W): 40 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 1.18" | Get a Quote |
| PSAPM-40D12 | Input Voltage: 85~264 | Output Voltage: 12, -12 | Output Current: ±1660mA | Output Power (W): 40 | No. Outputs: D | Case: PCB Mount | Size: 3.5" x 2.5" x 1.18" | Get a Quote |
| PSAPM-40D15 | Input Voltage: 85~264 | Output Voltage: 15, -15 | Output Current: ±1300mA | Output Power (W): 40 | No. Outputs: D | Case: PCB Mount | Size: 3.5" x 2.5" x 1.18" | Get a Quote |
| PSAPM-40D12C | Input Voltage: 85~264 | Output Voltage: 12, -12 | Output Current: ±1660mA | Output Power (W): 40 | No. Outputs: D | Case: Chassis Mount | Size: 4.41" x 2.51" x 1.34" | Get a Quote |
| PSAPM-40D15C | Input Voltage: 85~264 | Output Voltage: 15, -15 | Output Current: ±1300mA | Output Power (W): 40 | No. Outputs: D | Case: Chassis Mount | Size: 4.41" x 2.51" x 1.34" | Get a Quote |
| PSAPM-40D12DN | Input Voltage: 85~264 | Output Voltage: 12, -12 | Output Current: ±1660mA | Output Power (W): 40 | No. Outputs: D | Case: DIN Rail | Size: 4.41" x 2.51" x 1.77" | Get a Quote |
| PSAPM-40D15DN | Input Voltage: 85~264 | Output Voltage: 15, -15 | Output Current: ±1300mA | Output Power (W): 40 | No. Outputs: D | Case: DIN Rail | Size: 4.41" x 2.51" x 1.77" | Get a Quote |
| PSAPM-40S05C | Input Voltage: 85~264 | Output Voltage: 5 | Output Current: 800mA | Output Power (W): 40 | No. Outputs: S | Case: Chassis Mount | Size: 4.41" x 2.51" x 1.34" | Get a Quote |
| PSAPM-40S12C | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 3330mA | Output Power (W): 40 | No. Outputs: S | Case: Chassis Mount | Size: 4.41" x 2.51" x 1.34" | Get a Quote |
| PSAPM-40S15C | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 2660mA | Output Power (W): 40 | No. Outputs: S | Case: Chassis Mount | Size: 4.41" x 2.51" x 1.34" | Get a Quote |
| PSAPM-40S24C | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 1660mA | Output Power (W): 40 | No. Outputs: S | Case: Chassis Mount | Size: 4.41" x 2.51" x 1.34" | Get a Quote |
| PSAPM-40S05DN | Input Voltage: 85~264 | Output Voltage: 5 | Output Current: 800mA | Output Power (W): 40 | No. Outputs: S | Case: DIN Rail | Size: 4.41" x 2.51" x 1.77" | Get a Quote |
| PSAPM-40S12DN | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 3330mA | Output Power (W): 40 | No. Outputs: S | Case: DIN Rail | Size: 4.41" x 2.51" x 1.77" | Get a Quote |
| PSAPM-40S15DN | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 2660mA | Output Power (W): 40 | No. Outputs: S | Case: DIN Rail | Size: 4.41" x 2.51" x 1.77" | Get a Quote |
| PSAPM-40S24DN | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 1660mA | Output Power (W): 40 | No. Outputs: S | Case: DIN Rail | Size: 4.41" x 2.51" x 1.77" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~264 |
| Input Frequency: | 47-440Hz |
| Output | |
| Output Voltage: | -15, -12, 5, 12, 15, 24 |
| Voltage Accuracy: | 2.0 |
| Output Current: | -1660mA, -1300mA, 1300mA, 1660mA, 2660mA, 3330mA, 800mA |
| Output Power (Watts): | 40 |
| Short Circuit Protection: | Hiccup Mode |
| Over Voltage Protection: | Zener Diode Clamp |
| General | |
| Efficiency: | Up to 85% |
| Isolation: | 4000VACrms |
| Environmental | |
| Operating Temperature: | -40 to +80ºC |
| Storage Temperature: | -40 to +95ºC |
| Physical | |
| Weight: | PCB Mount: 10.93oz (310g) Chassis Mount: 11.29oz (320g) DIN Rail Mout: 13.19oz (374g) |
| Dimensions: | PCB Mount: 3.50in x 2.50in x 1.18in Chassis Mount: 4.41in x 2.51in x 1.34in DIN Rail Mount: 4.41in x 2.51in x 1.77in |
| Case Material: | Plastic Resin (Flammability to UL 94V-0 rated) |
| Notes & safety | |
| Notes: | 1. This product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications that necessitate specific safety regulatory standards other than the ones listed in this datasheet. 2. Ripple & Noise measured with a 0.1µF/50V MLCC and a 1µF/50V aluminum electrolytic. 3. Long term over load conditions may cause damage. 4. Natural convection is about 20LFM but is not equal to still air (0 LFM). 5. Safety approvals cover frequency 47-63Hz. 6. Other input and output voltages may be available, please contact factory. 7. It is recommended to protect the converter by a slow blow fuse in the input supply line. 8. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL 60950-1, CSA C22.2 No. 60950-1, ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, IEC/EN 60950-1, IEC/EN 60601-1 3rd Edition 2xMOPP, UL508, CSA C22.2 No. 107.1-01, UL/cUL 60950-1 recognition (UL Certificate), IEC/EN 60950-1 (CB-Report), UL/cUL 508 listed certificate, ANSI/AAMI ES60601-1 2xMOPP recognition (UL Certificate), IEC/EN 60601-1 3rd Edition (CB-Report) |
| RoHS Compliance: | Yes |
