PSMAY60

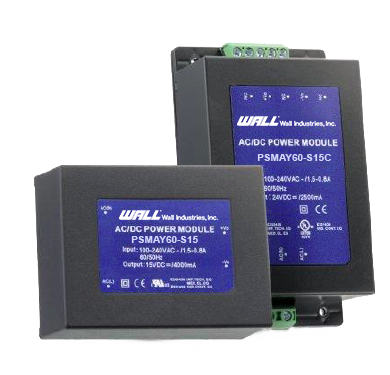

The PSMAY60 series of medical and industrial AC/DC power modules offers 60 watts of output power in a compact PCB, Chassis Mount, or DIN Rail mount package. This series consists of single output models with a universal input range of 85~264VAC in a fully encapsulated plastic case. Each model in this series has over voltage, over load, and short circuit protection, is RoHS & REACH compliant, and has medical and industrial safety approvals.

• Universal Input of 85~264VAC • Fully Encapsulated Plastic Case • PCB, Chassis, and DIN-Rail Mounting Packages Available • Protection Class II per IEC/EN 60536 • Over Voltage, Over Load, and Short Circuit Protection • RoHS & REACH Compliant • CE Marked • Medical and Industrial Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSMAY60-S051 Input Voltage: 85~264 Output Voltage: 5.1 Output Current: 10000mA Output Power (W): 60 No. Outputs: S Case: PCB Mount Get a Quote
PSMAY60-S12 Input Voltage: 85~264 Output Voltage: 12 Output Current: 5000mA Output Power (W): 60 No. Outputs: S Case: PCB Mount Get a Quote
PSMAY60-S15 Input Voltage: 85~264 Output Voltage: 15 Output Current: 4000mA Output Power (W): 60 No. Outputs: S Case: PCB Mount Get a Quote
PSMAY60-S24 Input Voltage: 85~264 Output Voltage: 24 Output Current: 2500mA Output Power (W): 60 No. Outputs: S Case: PCB Mount Get a Quote
PSMAY60-S48 Input Voltage: 85~264 Output Voltage: 48 Output Current: 1250mA Output Power (W): 60 No. Outputs: S Case: PCB Mount Get a Quote
PSMAY60-S051C Input Voltage: 85~264 Output Voltage: 5.1 Output Current: 10000mA Output Power (W): 60 No. Outputs: S Case: Chassis Mount Get a Quote
PSMAY60-S12C Input Voltage: 85~264 Output Voltage: 12 Output Current: 5000mA Output Power (W): 60 No. Outputs: S Case: Chassis Mount Get a Quote
PSMAY60-S15C Input Voltage: 85~264 Output Voltage: 15 Output Current: 4000mA Output Power (W): 60 No. Outputs: S Case: Chassis Mount Get a Quote
PSMAY60-S24C Input Voltage: 85~264 Output Voltage: 24 Output Current: 2500mA Output Power (W): 60 No. Outputs: S Case: Chassis Mount Get a Quote
PSMAY60-S48C Input Voltage: 85~264 Output Voltage: 48 Output Current: 1250mA Output Power (W): 60 No. Outputs: S Case: Chassis Mount Get a Quote
PSMAY60-S051D Input Voltage: 85~264 Output Voltage: 5.1 Output Current: 10000mA Output Power (W): 60 No. Outputs: S Case: DIN Rail Get a Quote
PSMAY60-S12D Input Voltage: 85~264 Output Voltage: 12 Output Current: 5000mA Output Power (W): 60 No. Outputs: S Case: DIN Rail Get a Quote
PSMAY60-S15D Input Voltage: 85~264 Output Voltage: 15 Output Current: 4000mA Output Power (W): 60 No. Outputs: S Case: DIN Rail Get a Quote
PSMAY60-S24D Input Voltage: 85~264 Output Voltage: 24 Output Current: 2500mA Output Power (W): 60 No. Outputs: S Case: DIN Rail Get a Quote
PSMAY60-S48D Input Voltage: 85~264 Output Voltage: 48 Output Current: 1250mA Output Power (W): 60 No. Outputs: S Case: DIN Rail Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 85~264
Input Frequency: 47 to 440Hz
Output
Output Voltage: 5.1, 12, 15, 24, 48
Voltage Accuracy: ±1.0
Output Current: 1250mA, 2500mA, 4000mA, 5000mA, 10000mA
Output Power (Watts): 60
Short Circuit Protection: Hiccup Mode, Automatic Recovery
Over Voltage Protection: 120% of Vo
General
Efficiency: Up to 88%
Isolation: 4000VACrms
Environmental
Operating Temperature: -40 to +80ºC
Storage Temperature: -40 to 95ºC
Physical
Weight: PCB Mount: 12.70oz (360g)
Chassis Mount: 13.40oz (380g)
DIN Rail Mount: 15.27oz (433g)
Dimensions: PCB Mount: 3.50in x 2.66in x 1.35in
Chassis Mount & DIN Rail Mount: 4.41in x 2.67in x 1.50in
Case Material: Plastic Resin
Notes & safety
Notes: 1. This product is not designed for use in critical life support systems, equipment used in hazardous environment, nuclear control systems or other such applications which necessitate specific safety and regulatory standards other than the ones listed in this datasheet.
2. Chassis Mount and Din Rail mounts are available for this series. To indicate chassis mount option, add “C” to end of model number. To indicate Din Rail mount option, add “D” to end of model number.
3. Ripple & Noise of PCB mounting type measured with a 0.1µF/50V MLCC and a 1µF/50V aluminum electrolytic.
4. Long term overload condition may cause damage
5. Natural convection is about 20LFM but is not equal to still air (0 LFM).
6. Safety approvals cover frequency 47-63Hz.
7. It is recommended to protect the converter by a slow blow fuse in the input supply line.
8. Other input and output voltage may be available, please call factory.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/cUL 6095-1, CSA C22.2 No. 60950-1, ANSI/AAMI ES606011, CAN/CSA-C22.2 No. 60601-1, IEC/EN 60950-1, IEC/EN 60950-1 3rd Edition 2xMOPP, UL508, CSA C22.2 No. 107.1-01
RoHS Compliance: Yes
