PSTAD65

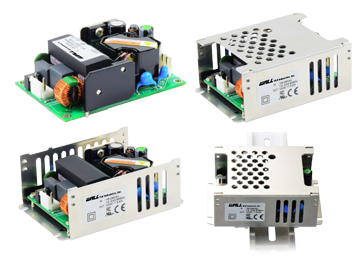

The PSTAD65 series of AC/DC power supplies offers up to 65 watts of output power in either an open frame, u-chassis, enclosed, or DIN Rail case. This series consists of single output models with an input voltage range of 85~264VAC and high efficiency. Several options are available for this series including package type, protection type, and connector option. Each model in this series has over voltage, over load, and short circuit protection, low leakage current, and low standby power. This series has IEC/EN/UL60950-1 safety approvals and is RoHS & REACH compliant.

• Input Voltage Range 85~264VAC (120~370VDC) • Adjustable Output Voltage • Low Leakage Current • Low Standby Power • RoHS & REACH Compliant • High Efficiency • Over Voltage, Over Load, and Short Circuit Protection • Protection Class I or Class II • Open Frame, U-Chassis, Enclosed, or DIN Rail Case Options • IEC60950-1, EN60950-1, UL60950-1 Safety Approvals

Get a Quote Request a Sample Custom Solutions

Models
Specifications

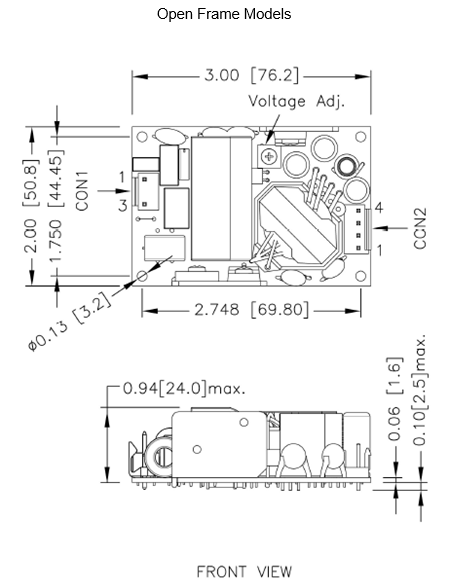

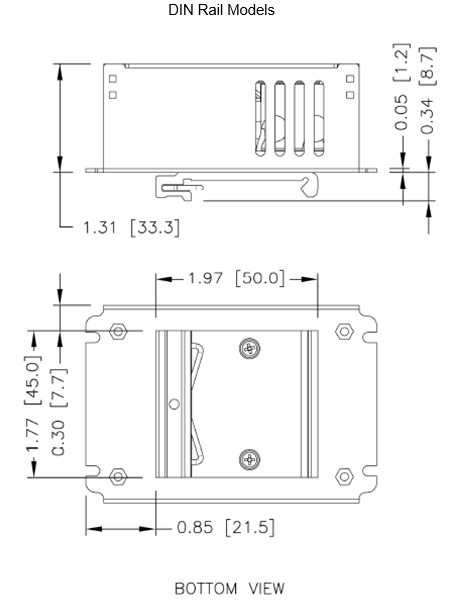

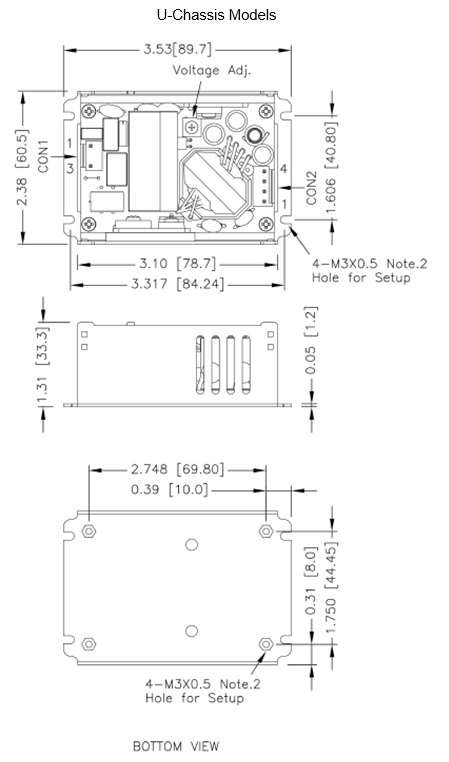

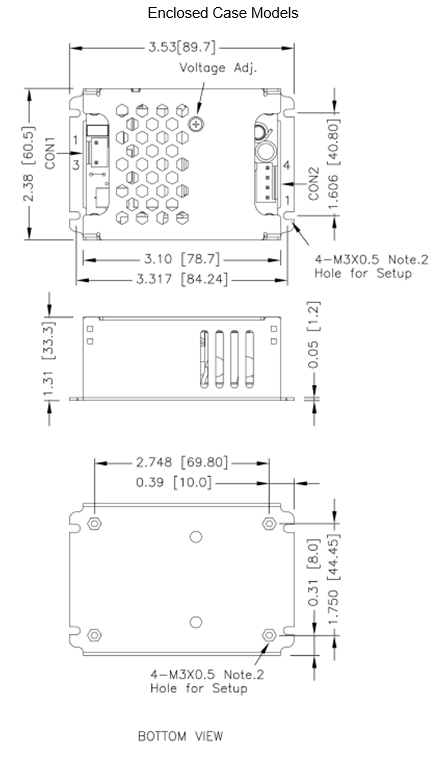

Drawings

Model Number	Input Voltage	Output Voltage	Output Current	Output Power (W)	No. Outputs	Case	Size
PSTAD65-S05O	Input Voltage: 85~264	Output Voltage: 5	Output Current: 10A	Output Power (W): 50	No. Outputs: S	Case: Open Frame	Size: 3" x 2" x 0.94"	Get a Quote
PSTAD65-S05U	Input Voltage: 85~264	Output Voltage: 5	Output Current: 10A	Output Power (W): 50	No. Outputs: S	Case: U-Chassis	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSTAD65-S05C	Input Voltage: 85~264	Output Voltage: 5	Output Current: 10A	Output Power (W): 50	No. Outputs: S	Case: Enclosed Case	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSTAD65-S05DN	Input Voltage: 85~264	Output Voltage: 5	Output Current: 10A	Output Power (W): 50	No. Outputs: S	Case: DIN Rail	Size: 3.53" x 2.37" x 1.31"	Get a Quote
PSTAD65-S75O	Input Voltage: 85~264	Output Voltage: 7.5	Output Current: 8.67A	Output Power (W): 65	No. Outputs: S	Case: Open Frame	Size: 3" x 2" x 0.94"	Get a Quote
PSTAD-S75U	Input Voltage: 85~264	Output Voltage: 7.5	Output Current: 8.67A	Output Power (W): 65	No. Outputs: S	Case: U-Chassis	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSTAD65-S75C	Input Voltage: 85~264	Output Voltage: 7.5	Output Current: 8.67A	Output Power (W): 65	No. Outputs: S	Case: Enclosed Case	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSTAD65-S75DN	Input Voltage: 85~264	Output Voltage: 7.5	Output Current: 8.67A	Output Power (W): 65	No. Outputs: S	Case: DIN Rail	Size: 3.53" x 2.37" x 1.31"	Get a Quote
PSTAD65-S09O	Input Voltage: 85~264	Output Voltage: 9	Output Current: 7.23A	Output Power (W): 65	No. Outputs: S	Case: Open Frame	Size: 3" x 2" x 0.94"	Get a Quote
PSTAD65-S09U	Input Voltage: 85~264	Output Voltage: 9	Output Current: 7.23A	Output Power (W): 65	No. Outputs: S	Case: U-Chassis	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSTAD65-S09C	Input Voltage: 85~264	Output Voltage: 9	Output Current: 7.23A	Output Power (W): 65	No. Outputs: S	Case: Enclosed Case	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSTAD65-S09DN	Input Voltage: 85~264	Output Voltage: 9	Output Current: 7.23A	Output Power (W): 65	No. Outputs: S	Case: DIN Rail	Size: 3.53" x 2.37" x 1.31"	Get a Quote
PSTAD65-S12O	Input Voltage: 85~264	Output Voltage: 12	Output Current: 5.42A	Output Power (W): 65	No. Outputs: S	Case: Open Frame	Size: 3" x 2" x 0.94"	Get a Quote
PSTAD65-S12U	Input Voltage: 85~264	Output Voltage: 12	Output Current: 5.42A	Output Power (W): 65	No. Outputs: S	Case: U-Chassis	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSTAD65-S12C	Input Voltage: 85~264	Output Voltage: 12	Output Current: 5.42A	Output Power (W): 65	No. Outputs: S	Case: Enclosed Case	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSTAD65-S12DN	Input Voltage: 85~264	Output Voltage: 12	Output Current: 5.42A	Output Power (W): 65	No. Outputs: S	Case: DIN Rail	Size: 3.53" x 2.37" x 1.31"	Get a Quote
PSTAD65-S15O	Input Voltage: 85~264	Output Voltage: 15	Output Current: 4.34A	Output Power (W): 65	No. Outputs: S	Case: Open Frame	Size: 3" x 2" x 0.94"	Get a Quote
PSTAD65-S15U	Input Voltage: 85~264	Output Voltage: 15	Output Current: 4.34A	Output Power (W): 65	No. Outputs: S	Case: U-Chassis	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSTAD65-S15C	Input Voltage: 85~264	Output Voltage: 15	Output Current: 4.34A	Output Power (W): 65	No. Outputs: S	Case: Enclosed Case	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSTAD65-S15DN	Input Voltage: 85~264	Output Voltage: 15	Output Current: 4.34A	Output Power (W): 65	No. Outputs: S	Case: DIN Rail	Size: 3.53" x 2.37" x 1.31"	Get a Quote
PSTAD65-S18O	Input Voltage: 85~264	Output Voltage: 18	Output Current: 3.62A	Output Power (W): 65	No. Outputs: S	Case: Open Frame	Size: 3" x 2" x 0.94"	Get a Quote
PSTAD65-S18U	Input Voltage: 85~264	Output Voltage: 18	Output Current: 3.62A	Output Power (W): 65	No. Outputs: S	Case: U-Chassis	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSTAD65-S18C	Input Voltage: 85~264	Output Voltage: 18	Output Current: 3.62A	Output Power (W): 65	No. Outputs: S	Case: Enclosed Case	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSTAD65-S18DN	Input Voltage: 85~264	Output Voltage: 18	Output Current: 3.62A	Output Power (W): 65	No. Outputs: S	Case: DIN Rail	Size: 3.53" x 2.37" x 1.31"	Get a Quote
PSTAD65-S24O	Input Voltage: 85~264	Output Voltage: 24	Output Current: 2.71A	Output Power (W): 65	No. Outputs: S	Case: Open Frame	Size: 3" x 2" x 0.94"	Get a Quote
PSTAD65-S24U	Input Voltage: 85~264	Output Voltage: 24	Output Current: 2.71A	Output Power (W): 65	No. Outputs: S	Case: U-Chassis	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSTAD65-S24C	Input Voltage: 85~264	Output Voltage: 24	Output Current: 2.71A	Output Power (W): 65	No. Outputs: S	Case: Enclosed Case	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSTAD65-S24DN	Input Voltage: 85~264	Output Voltage: 24	Output Current: 2.71A	Output Power (W): 65	No. Outputs: S	Case: DIN Rail	Size: 3.53" x 2.37" x 1.31"	Get a Quote
PSTAD65-S241O	Input Voltage: 85~264	Output Voltage: 24	Output Current: 2.71A	Output Power (W): 65	No. Outputs: S	Case: Open Frame	Size: 3" x 2" x 0.94"	Get a Quote
PSTAD65-S241U	Input Voltage: 85~264	Output Voltage: 24	Output Current: 2.71A	Output Power (W): 65	No. Outputs: S	Case: U-Chassis	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSTAD65-S241C	Input Voltage: 85~264	Output Voltage: 24	Output Current: 2.71A	Output Power (W): 65	No. Outputs: S	Case: Enclosed Case	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSTAD65-S241DN	Input Voltage: 85~264	Output Voltage: 24	Output Current: 2.71A	Output Power (W): 65	No. Outputs: S	Case: DIN Rail	Size: 3.53" x 2.37" x 1.31"	Get a Quote
PSTAD65-S28O	Input Voltage: 85~264	Output Voltage: 28	Output Current: 2.33A	Output Power (W): 65	No. Outputs: S	Case: Open Frame	Size: 3" x 2" x 0.94"	Get a Quote
PSTAD65-S28U	Input Voltage: 85~264	Output Voltage: 28	Output Current: 2.33A	Output Power (W): 65	No. Outputs: S	Case: U-Chassis	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSTAD65-S28C	Input Voltage: 85~264	Output Voltage: 28	Output Current: 2.33A	Output Power (W): 65	No. Outputs: S	Case: Enclosed Case	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSTAD65-S28DN	Input Voltage: 85~264	Output Voltage: 28	Output Current: 2.33A	Output Power (W): 65	No. Outputs: S	Case: DIN Rail	Size: 3.53" x 2.37" x 1.31"	Get a Quote
PSTAD65-S281O	Input Voltage: 85~264	Output Voltage: 28	Output Current: 2.33A	Output Power (W): 65	No. Outputs: S	Case: Open Frame	Size: 3" x 2" x 0.94"	Get a Quote
PSTAD65-S281U	Input Voltage: 85~264	Output Voltage: 28	Output Current: 2.33A	Output Power (W): 65	No. Outputs: S	Case: U-Chassis	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSTAD65-S281C	Input Voltage: 85~264	Output Voltage: 28	Output Current: 2.33A	Output Power (W): 65	No. Outputs: S	Case: Enclosed Case	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSTAD65-281DN	Input Voltage: 85~264	Output Voltage: 28	Output Current: 2.33A	Output Power (W): 65	No. Outputs: S	Case: DIN Rail	Size: 3.53" x 2.37" x 1.31"	Get a Quote
PSTAD65-S36O	Input Voltage: 85~264	Output Voltage: 36	Output Current: 1.81A	Output Power (W): 65	No. Outputs: S	Case: Open Frame	Size: 3" x 2" x 0.94"	Get a Quote
PSTAD65-S36U	Input Voltage: 85~264	Output Voltage: 36	Output Current: 1.81A	Output Power (W): 65	No. Outputs: S	Case: U-Chassis	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSTAD65-S36C	Input Voltage: 85~264	Output Voltage: 36	Output Current: 1.81A	Output Power (W): 65	No. Outputs: S	Case: Enclosed Case	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSTAD65-S36DN	Input Voltage: 85~264	Output Voltage: 36	Output Current: 1.81A	Output Power (W): 65	No. Outputs: S	Case: DIN Rail	Size: 3.53" x 2.37" x 1.31"	Get a Quote
PSTAD65-S48O	Input Voltage: 85~264	Output Voltage: 48	Output Current: 1.36A	Output Power (W): 65	No. Outputs: S	Case: Open Frame	Size: 3" x 2" x 0.94"	Get a Quote
PSTAD65-S48U	Input Voltage: 85~264	Output Voltage: 48	Output Current: 1.36A	Output Power (W): 65	No. Outputs: S	Case: U-Chassis	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSTAD65-S48C	Input Voltage: 85~264	Output Voltage: 48	Output Current: 1.36A	Output Power (W): 65	No. Outputs: S	Case: Enclosed Case	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSTAD65-S48DN	Input Voltage: 85~264	Output Voltage: 48	Output Current: 1.36A	Output Power (W): 65	No. Outputs: S	Case: DIN Rail	Size: 3.53" x 2.37" x 1.31"	Get a Quote
PSTAD65-S53O	Input Voltage: 85~264	Output Voltage: 53	Output Current: 1.24A	Output Power (W): 65	No. Outputs: S	Case: Open Frame	Size: 3" x 2" x 0.94"	Get a Quote
PSTAD65-S53U	Input Voltage: 85~264	Output Voltage: 53	Output Current: 1.24A	Output Power (W): 65	No. Outputs: S	Case: U-Chassis	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSTAD65-S53C	Input Voltage: 85~264	Output Voltage: 53	Output Current: 1.24A	Output Power (W): 65	No. Outputs: S	Case: Enclosed Case	Size: 3.53" x 2.38" x 1.31"	Get a Quote
PSTAD65-S53DN	Input Voltage: 85~264	Output Voltage: 53	Output Current: 1.24A	Output Power (W): 65	No. Outputs: S	Case: DIN Rail	Size: 3.53" x 2.37" x 1.31"	Get a Quote

Specification	Value
Input
Input Voltage (Nominal):	100~240
Input Voltage Range:	85~264
Input Frequency:	47~63Hz
Output
Output Voltage:	S
Voltage Accuracy:	±1.0%
Output Current:	1.24A, 1.36A, 1.81A, 2.33A, 2.71A, 3.62A, 4.34A, 5.42A, 7.23A, 8.67A, 10A
Output Power (Watts):	50, 65
Output Trim/Adjustability:	53Vout: -20, +10% Others: ±10%
Short Circuit Protection:	Continuous, Automatic Recovery
Over Voltage Protection:	125-140%
General
Efficiency:	Up to 93.5%
Isolation:	Input to Output: 3000VAC Input (Output) to F.G.: 2500VAC
Environmental
Operating Temperature:	-40 to +85ºC
Physical
Weight:	Open Frame: 4.13oz (117g) U-Chassis: 5.54oz (157g) Enclosed: 6.07oz (172g) DIN Rail: 6.81oz (193g)
Dimensions:	Open Frame: 3in x 2in x 0.94in (76.2mm x 50.8mm x 24mm) U-Chassis & Enclosed: 3.53in x 2.38in x 1.31in (89.7mm x 60.5mm x 33.3mm) DIN Rail: 3.53in x 2.37in x 1.31in (89.7mm x 60.4mm x 33.3mm)
Notes & safety
Notes:	1. “X” at end of model number represents package type. “X” can either be “O” for Open Frame, “U” for U-Chassis, “C” for Enclosed, or “DN” for DIN Rail. 2. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice.
Safety Approvals:	IEC60950-1, EN60950-1, UL60950-1
RoHS Compliance:	Yes
