PSAKF

The PSAKF series of AC/DC power supplies offers 15 Watts of output power in an encapsulated design. This series has single, dual, and triple outputs with a universal input range of 85 ~265VAC. Other features include continuous short circuit protection, over voltage protection, and output current limiting. These units are also EMC EN61000-4(-2,-3,-4) and EMI EN55022 level B approved. The compliance to these EMI specifications minimizes system design time, cost, and eliminates the need for external filter components. The PSAKF series has IEC/EN/UL 60950-1 safety approvals which qualifies this product for worldwide markets. This series has a wide variety of applications including both commercial and industrial with a MTBF of 280,000 hours.

● I/O Isolation 3000VAC ● MTBF > 280,000 Hours ● High Efficiency up to 79% ● Encapsulated PCB Mount ● EMC Complies with EN61000 ● IEC61140 Safety Class II Approved ● Single, Dual, and Triple Output Models ● 85~265VAC, 47~440Hz Universal Input Range ● Chassis Mount and DIN Rail Versions Available ● IEC / EN / UL 60950-1 Safety Standards Approved ● Operating Temperature 71°C (Refer to Derating Curve) ● EMI Complies with EN55022, Class B and FCC part 15, level B
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSAKF-15T515CM Input Voltage: 85~264 Output Voltage: 5, 15, -15 Output Current: 2A, ±150mA Output Power (W): 14 No. Outputs: T Case: Chassis Mount Get a Quote
PSAKF-15T515 Input Voltage: 85~264 Output Voltage: 5, 15, -15 Output Current: 2A, ±150mA Output Power (W): 14.5 No. Outputs: T Case: PCB Mount Get a Quote
PSAKF-15T515DN Input Voltage: 85~264 Output Voltage: 5, 15, -15 Output Current: 2A, ±150mA Output Power (W): 14.5 No. Outputs: T Case: DIN Rail Get a Quote
PSAKF-15T512 Input Voltage: 85~264 Output Voltage: 5, 12, -12 Output Current: 2A, ±200mA Output Power (W): 14.8 No. Outputs: T Case: PCB Mount Get a Quote
PSAKF-15T512DN Input Voltage: 85~264 Output Voltage: 5, 12, -12 Output Current: 2A, ±200mA Output Power (W): 14.8 No. Outputs: T Case: DIN Rail Get a Quote
PSAKF-15T512CM Input Voltage: 85~264 Output Voltage: 5, 12, -12 Output Current: 2A, ±200mA Output Power (W): 14.8 No. Outputs: T Case: Chassis Mount Get a Quote
PSAKF-15S48 Input Voltage: 85~264 Output Voltage: 48 Output Current: 310mA Output Power (W): 14.88 No. Outputs: S Case: PCB Mount Get a Quote
PSAKF-15S48DN Input Voltage: 85~264 Output Voltage: 48 Output Current: 310mA Output Power (W): 14.88 No. Outputs: S Case: DIN Rail Get a Quote
PSAKF-15S48CM Input Voltage: 85~264 Output Voltage: 48 Output Current: 310mA Output Power (W): 14.88 No. Outputs: S Case: Chassis Mount Get a Quote
PSAKF-15D12 Input Voltage: 85~264 Output Voltage: 12, -12 Output Current: 625mA, 625mA Output Power (W): 15 No. Outputs: D Case: PCB Mount Get a Quote
PSAKF-15D15 Input Voltage: 85~264 Output Voltage: 15, -15 Output Current: 500mA, 500mA Output Power (W): 15 No. Outputs: D Case: PCB Mount Get a Quote
PSAKF-15D512 Input Voltage: 85~264 Output Voltage: 5, 12 Output Current: 1.5A, 625mA Output Power (W): 15 No. Outputs: D Case: PCB Mount Get a Quote
PSAKF-15S05 Input Voltage: 85~264 Output Voltage: 5 Output Current: 3A Output Power (W): 15 No. Outputs: S Case: PCB Mount Get a Quote
PSAKF-15S12 Input Voltage: 85~264 Output Voltage: 12 Output Current: 1.25A Output Power (W): 15 No. Outputs: S Case: PCB Mount Get a Quote
PSAKF-15S15 Input Voltage: 85~264 Output Voltage: 15 Output Current: 1A Output Power (W): 15 No. Outputs: S Case: PCB Mount Get a Quote
PSAKF-15S24 Input Voltage: 85~264 Output Voltage: 24 Output Current: 625mA Output Power (W): 15 No. Outputs: S Case: PCB Mount Get a Quote
PSAKF-15D12DN Input Voltage: 85~264 Output Voltage: 12, -12 Output Current: 625mA, 625mA Output Power (W): 15 No. Outputs: D Case: DIN Rail Get a Quote
PSAKF-15D15DN Input Voltage: 85~264 Output Voltage: 15, -15 Output Current: 500mA, 500mA Output Power (W): 15 No. Outputs: D Case: DIN Rail Get a Quote
PSAKF-15D512DN Input Voltage: 85~264 Output Voltage: 5, 12 Output Current: 1.5A, 0.625A Output Power (W): 15 No. Outputs: D Case: DIN Rail Get a Quote
PSAKF-15S05DN Input Voltage: 85~264 Output Voltage: 5 Output Current: 3A Output Power (W): 15 No. Outputs: S Case: DIN Rail Get a Quote
PSAKF-15S12DN Input Voltage: 85~264 Output Voltage: 12 Output Current: 1.25A Output Power (W): 15 No. Outputs: S Case: DIN Rail Get a Quote
PSAKF-15S15DN Input Voltage: 85~264 Output Voltage: 15 Output Current: 1A Output Power (W): 15 No. Outputs: S Case: DIN Rail Get a Quote
PSAKF-15S24DN Input Voltage: 85~264 Output Voltage: 24 Output Current: 625mA Output Power (W): 15 No. Outputs: S Case: DIN Rail Get a Quote
PSAKF-15S05CM Input Voltage: 85~264 Output Voltage: 5 Output Current: 3A Output Power (W): 15 No. Outputs: S Case: Chassis Mount Get a Quote
PSAKF-15D512CM Input Voltage: 85~264 Output Voltage: 5, 12 Output Current: 1.5A, 625mA Output Power (W): 15 No. Outputs: D Case: Chassis Mount Get a Quote
PSAKF-15S12CM Input Voltage: 85~264 Output Voltage: 12 Output Current: 1.25A Output Power (W): 15 No. Outputs: S Case: Chassis Mount Get a Quote
PSAKF-15D12CM Input Voltage: 85~264 Output Voltage: 12, -12 Output Current: 625mA, 625mA Output Power (W): 15 No. Outputs: D Case: Chassis Mount Get a Quote
PSAKF-15S15CM Input Voltage: 85~264 Output Voltage: 15 Output Current: 1A Output Power (W): 15 No. Outputs: S Case: Chassis Mount Get a Quote
PSAKF-15D15CM Input Voltage: 85~264 Output Voltage: 15, -15 Output Current: 500mA, 500mA Output Power (W): 15 No. Outputs: D Case: Chassis Mount Get a Quote
PSAKF-15S24CM Input Voltage: 85~264 Output Voltage: 24 Output Current: 625mA Output Power (W): 15 No. Outputs: S Case: Chassis Mount Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 85~264
Input Frequency: 47-63 Hz
Output
Output Voltage: 5, 12, -12, 15, -15, 24, 48
Voltage Accuracy: ±2.0% max.
Output Current: 1A, 1.25A, 2.3A, 2.4A, 2.125A, 3A, 310mA, 625mA
Output Power (Watts): 14.5, 14.8, 14.88, 15
Short Circuit Protection: hiccup mode, indefinite (auto-recovery)
Over Voltage Protection: 120% of Vo (zener diode clamp)
General
Efficiency: Up to 79%
Isolation: 3000VAC
Environmental
Operating Temperature: -25 to 71°C
Storage Temperature: -40 to 85°C

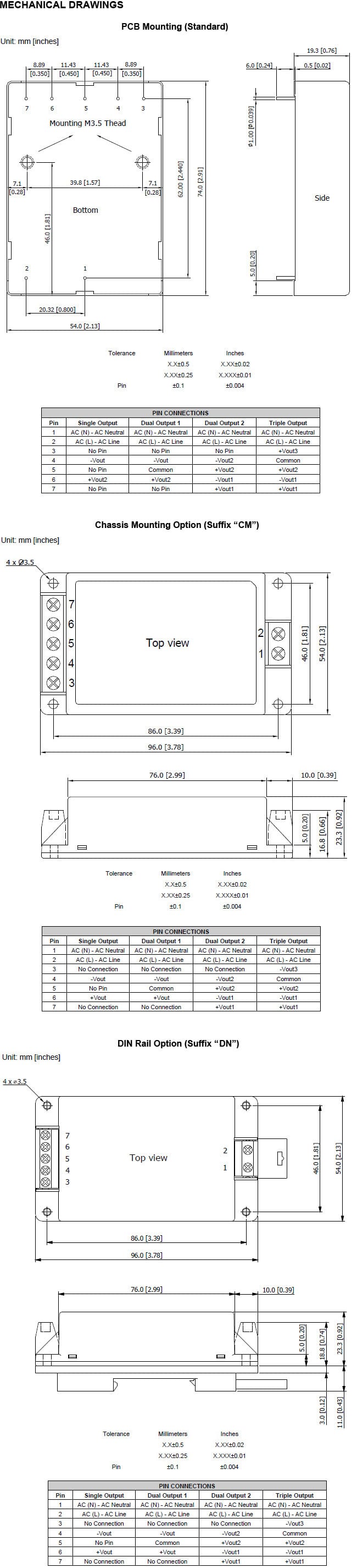

Physical
Weight: PCB Mount: 4.02oz (114g)
Chassis Mount: 5.71oz (162g)
DIN Rail: 7.62oz (216g)
Dimensions: PCB Mount: 2.91" x 2.13" x 0.76" (74 x 54 x 19.3 mm)
Chassis Mount: 3.81" x 2.13" x 0.92" (96.7 x 54.0 x 23.3 mm)
DIN Rail: 3.81" x 2.13" x 1.35" (96.7 x 54.0 x 34.3 mm)
Case Material: plastic resin with fiberglass
Notes & safety
Notes: 1. Ripple & Noise measurement bandwidth is 0~20 MHz.
2. These power modules require a minimum output loading to maintain specified regulation.
3. Operation under no-load conditions will not damage these devices; however they may not meet all listed specifications.
4. Other input and output voltage may be available, please contact factory.
5. To order the chassis mount version please add the suffix “CM” to the model number (Ex: PSAKF-30S05CM).
6. To order the DIN Rail version please add the suffix “DN” to the model number (Ex: PSAKF-30S05DN).
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: IEC/ EN / UL 60950-1
RoHS Compliance: Yes
