RBR500
The RBR500 series of DC/DC converters offers 500mA output current in an ultra-compact 0.6” x 0.45” x 0.325” SMD package. This series consists of non-isolated and regulated single outputs with wide input voltage. Each model in this series features high efficiency, short circuit protection, and RoHS compliance. This series also has EN62368 standard approval.
• Wide Input Voltage • High Efficiency • SMD Package • Output Short Circuit Protection • RoHS Compliant • Meets EN62368 Standard
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| RBR500-12S1.5 | Input Voltage: 12 | Output Voltage: 1.5 | Output Current: 500mA | Output Power (W): - | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.45" x 0.325" | Get a Quote |
| RBR500-12S1.8 | Input Voltage: 12 | Output Voltage: 1.8 | Output Current: 500mA | Output Power (W): - | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.45" x 0.325" | Get a Quote |
| RBR500-12S2.5 | Input Voltage: 12 | Output Voltage: 2.5 | Output Current: 500mA | Output Power (W): - | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.45" x 0.325" | Get a Quote |
| RBR500-24S3.3 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): - | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.45" x 0.325" | Get a Quote |
| RBR500-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 500mA | Output Power (W): - | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.45" x 0.325" | Get a Quote |
| RBR500-24S6.5 | Input Voltage: 24 | Output Voltage: 6.5 | Output Current: 500mA | Output Power (W): - | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.45" x 0.325" | Get a Quote |
| RBR500-24S09 | Input Voltage: 24 | Output Voltage: 9 | Output Current: 500mA | Output Power (W): - | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.45" x 0.325" | Get a Quote |
| RBR500-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 500mA | Output Power (W): - | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.45" x 0.325" | Get a Quote |
| RBR500-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 500mA | Output Power (W): - | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.45" x 0.325" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24 |
| Input Voltage Range: | 4.75~28, 4.75~21, 4.75~36, 6.5~36, 8~36, 12~36, 15~36, 19~36 |
| Input Filter: | Capacitor Filter |
| Remote ON/OFF: | Yes |
| Output | |
| Output Voltage: | 1.5, 1.8, 2.5, 3.3, 5, 6.5, 9, 12, 15 |
| Voltage Accuracy: | 1.5V, 1.8V, 2.5V, & 3.3V Output Models: ±4% Max. Others: ±3% Max. |
| Output Current: | 500mA |
| Output Power (Watts): | - |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Continuous, Self-Recovery |
| General | |
| Efficiency: | Up to 95% |
| Environmental | |
| Operating Temperature: | -40 to +85ºC |
| Storage Temperature: | -55 to +125ºC |
| Physical | |
| Weight: | 0.053oz (1.5g) |

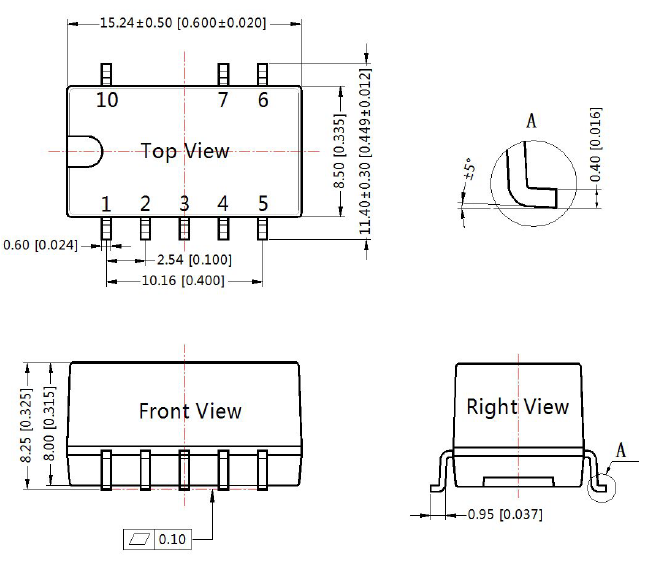

| Dimensions: | 0.6in x 0.45in x 0.325in (15.24mm x 11.40mm x 8.25mm) |
| Case Material: | Black Flame-Retardant & Heat-Resistant Plastic (UL94 V-0) |
| Notes & safety | |
| Notes: | 1. Ripple and noise tested with “parallel cable” method. With load at or below 20%, the maximum ripple and noise of 1.5V, 1.8V, 2.5V, & 3.3V output models will be 100mVp-p. With load lower than 10%, 5V, 6.5V, 9V, 12V, & 15V output models will be 150mVp-p. 2. The voltage of Remote ON/OFF pin is relative to pin GND. 3. Performance indexes of product models listed in this manual are as above, but some indexes of non-standard model products will exceed the above-mentioned requirements. Please contact factory for more information. 4. Our products shall be classified according to ISO 14001 and related environmental laws and regulations and should be handled by qualified units. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | EN62368 |
| RoHS Compliance: | Yes |
