DCMAR05
The DCMAR05 series of DC/DC switching regulators offers 0.5A output current in a compact 0.45” x 0.30” x 0.40” standard SIP-3 package. This series consists of fully regulated single output models with high efficiency and low ripple & noise. Each model in this series has short circuit and over temperature protection, no minimum load requirement, and is RoHS & REACH compliant. Please contact factory for order details.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCMAR05-015 | Input Voltage: 4.75~32 | Output Voltage: 1.5 | Output Current: 500mA | Output Power (W): - | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.3" x 0.4" | Get a Quote |
| DCMAR05-018 | Input Voltage: 4.75~32 | Output Voltage: 1.8 | Output Current: 500mA | Output Power (W): - | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.3" x 0.4" | Get a Quote |
| DCMAR-025 | Input Voltage: 4.75~32 | Output Voltage: 2.5 | Output Current: 500mA | Output Power (W): - | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.3" x 0.4" | Get a Quote |
| DCMAR05-033 | Input Voltage: 4.75~32 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): - | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.3" x 0.4" | Get a Quote |
| DCMAR05-05 | Input Voltage: 6.5~32 | Output Voltage: 5 | Output Current: 500mA | Output Power (W): - | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.3" x 0.4" | Get a Quote |
| DCMAR05-065 | Input Voltage: 8~32 | Output Voltage: 6.5 | Output Current: 500mA | Output Power (W): - | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.3" x 0.4" | Get a Quote |
| DCMAR05-09 | Input Voltage: 11~32 | Output Voltage: 9 | Output Current: 500mA | Output Power (W): - | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.3" x 0.4" | Get a Quote |
| DCMAR05-12 | Input Voltage: 15~32 | Output Voltage: 12 | Output Current: 500mA | Output Power (W): - | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.3" x 0.4" | Get a Quote |
| DCMAR05-15 | Input Voltage: 18~32 | Output Voltage: 15 | Output Current: 500mA | Output Power (W): - | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.3" x 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 4.75~32, 6.5~32, 8~32, 11~32, 15~32, 18~32 |
| Input Voltage Range: | 4.75~32, 6.5~32, 8~32, 11~32, 15~32, 18~32 |
| Input Filter: | Internal Capacitor |
| Output | |
| Output Voltage: | 1.5, 1.8, 2.5, 3.3, 5, 6.5, 9, 12, 15 |
| Voltage Accuracy: | ±3.0% |
| Output Current: | 500mA |
| Output Power (Watts): | - |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| General | |
| Efficiency: | Up to 97% |
| Environmental | |
| Operating Temperature: | -40 to +90ºC |
| Storage Temperature: | -55 to +125ºC |
| Physical | |
| Weight: | 0.069oz (1.95g) |

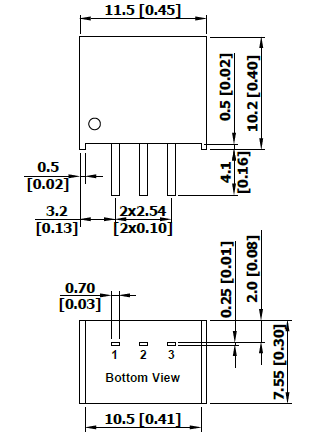

| Dimensions: | 0.45in x 0.30in x 0.40in (11.5mm x 7.55mm x 10.2mm) |
| Case Material: | Non-Conductive Black Plastic |
| Notes & safety | |
| Notes: | 1. With an input capacitor 22µF/50V for input voltage >28VDC, input voltage allows 32VDC, max. 2. Other input and output voltages may be available, please contact factory. 3. It is recommended to protect the converter by a slow blow fuse in the input supply line. 4. Natural Convection is about 20LFM but is not equal to still air (0LFM). 5. This series can meet EN61000-4-4 by adding a capacitor across the input pins. Suggested capacitor: CHEMI-CON KY 330µF/100V. *Due to advances in technology, specifications subject to change without notice. |
| RoHS Compliance: | Yes |
