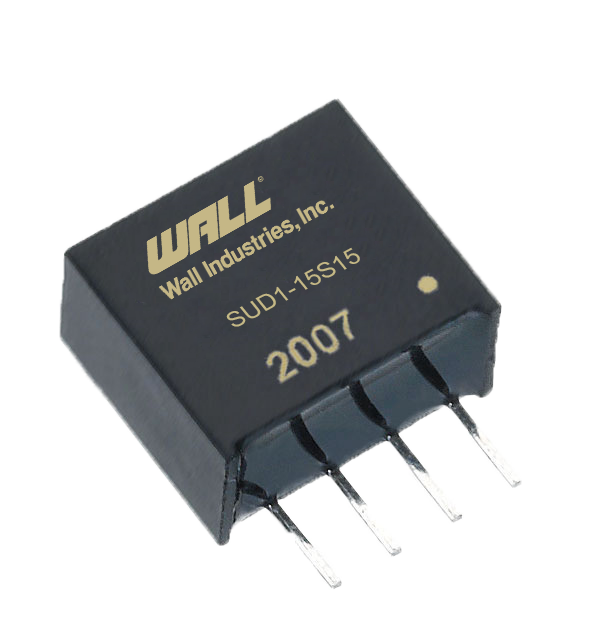

SUD1
The SUD1 series of unregulated DC/DC converters offers up to 1 watt of output power 0.45” x 0.24” x 0.39” compact package. This series consists of single output models with a wide input voltage range. The SUD2 series is RoHS and REACH compliant, is protected against short circuit conditions, and has IEC/EN/UL62368-1 safety approvals.
• Wide Input Range
• RoHS & REACH Compliant
• 3000VDC Isolation Voltage
• 1600VDC Isolation Voltage
• Unregulated
• Short Circuit Protection
• Compact Size
• IEC/EN/UL62368-1 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| SUD1-33S33 | Input Voltage: 3.3 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-33S05 | Input Voltage: 3.3 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-33S09 | Input Voltage: 3.3 | Output Voltage: 9 | Output Current: 110mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-33S12 | Input Voltage: 3.3 | Output Voltage: 12 | Output Current: 83mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-33S15 | Input Voltage: 3.3 | Output Voltage: 15 | Output Current: 66mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-33S24 | Input Voltage: 3.3 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-05S33 | Input Voltage: 5 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-05S05 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-05S09 | Input Voltage: 5 | Output Voltage: 9 | Output Current: 110mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-05S12 | Input Voltage: 5 | Output Voltage: 12 | Output Current: 83mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-05S15 | Input Voltage: 5 | Output Voltage: 15 | Output Current: 66mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-05S24 | Input Voltage: 5 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-12S33 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-12S09 | Input Voltage: 12 | Output Voltage: 9 | Output Current: 110mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-12S12 | Input Voltage: 15 | Output Voltage: 12 | Output Current: 83mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-12S15 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 66mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-12S24 | Input Voltage: 12 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-15S33 | Input Voltage: 15 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-15S05 | Input Voltage: 15 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-15S09 | Input Voltage: 15 | Output Voltage: 9 | Output Current: 110mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-15S12 | Input Voltage: 15 | Output Voltage: 12 | Output Current: 83mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-15S15 | Input Voltage: 15 | Output Voltage: 15 | Output Current: 66mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-15S24 | Input Voltage: 15 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-24S33 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-24S09 | Input Voltage: 24 | Output Voltage: 9 | Output Current: 110mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 83mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 66mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| SUD1-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 3.3, 5, 12, 15, 24 |
| Input Voltage Range: | 2.9~3.6, 4.5~5.5, 10.8~13.2,13.4~16.4, 21.6~26.4 |
| Input Filter: | C Type |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, 24 |
| Voltage Accuracy: | See Data Sheet |
| Output Current: | 303mA, 200mA, 110mA, 83mA, 66mA, 42mA |
| Output Power (Watts): | 1 |
| Short Circuit Protection: | Continuous Short Circuit Protection |
| General | |
| Efficiency: | Up to 81% |
| Isolation: | Up to 3000VAC |
| Environmental | |
| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 0.046oz (1.3g) |

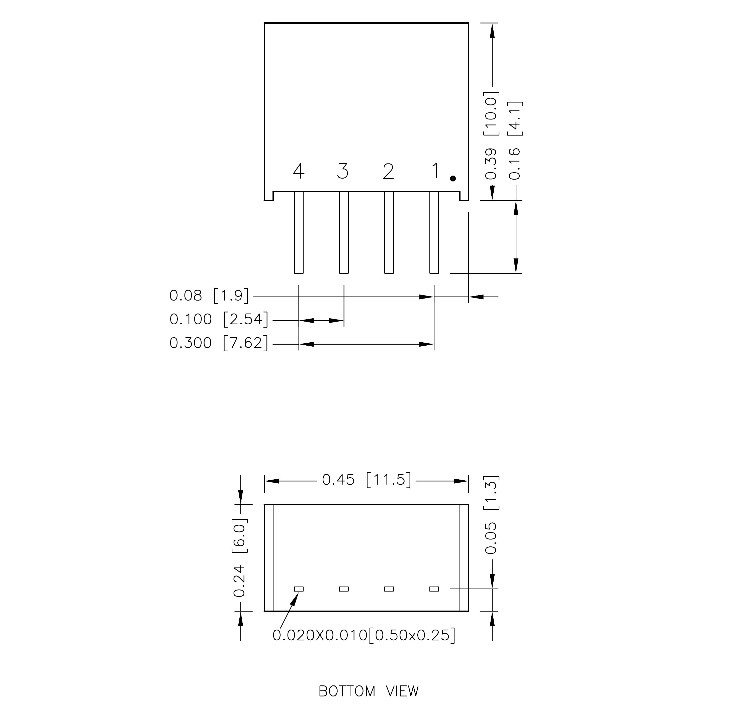

| Dimensions: | 0.45in x 0.24in x 0.39in (11.5mm x 6mm x 10mm) |
| Case Material: | Non-Conductive Black Plastic |
| Notes & safety | |
| Notes: | 1. The extra protection of the pads between input and output should be needed in order to ensure that the isolation function won’t be affected after the module is mounted on the PCB. For detailed information, refer to Recommended Pad Layout. 2. The output requires a minimum loading on the output to maintain specified regulation. Operation under no-load condition will not damage these devices; however they may not meet all listed specifications. 3. This product is Listed to applicable standard and requirements by UL. CAUTION: This power module is not internally fused. An input line fuse must always be used. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC/EN/UL62368-1 |
| RoHS Compliance: | Yes |
