The RBCAN01 series of CAN isolation transceiver module is a single channel, high speed, industrial bus that converts TTL/CMOS level to CAN bus differential level and achieves signal isolation. This series consists of very compact models with a standard DIP8 package and a bus that can support at least 110 nodes. It features two-port isolation of 2.5kVDC, baud rate up to 1Mbps, and bus timeout protection. This series is RoHS compliant, meets ISO 11898-2 standard, and also has EN60950 safety approvals.

• Single Channel • High Speed • Compact Size • CAN Isolation Transceiver Module • Two-Port Isolation: 2.5kVDC • High Baud Rate Up to 1Mbps • RoHS Compliant • Bus Timeout Protection • Bus Can Support at Least 110 Nodes • Standard DIP8 Package • Meets ISO 11898-2 Standard • EN60950 Safety Approval • 3 Year Warranty
Power (W)
Case Size
RBCAN01-360 Input Voltage: 3.3 Output Voltage: 58, +58 Output Current: 60mA Output Power (W): - No. Outputs: D Case: Through Hole Size: 0.5" x 0.4" x 0.3" Get a Quote
RBCAN01-550 Input Voltage: 5 Output Voltage: 58, -58 Output Current: 50mA Output Power (W): - No. Outputs: D Case: Through Hole Size: 0.5" x 0.4" x 0.3" Get a Quote
Specification Value
Input Voltage (Nominal): 3.3, 5
Input Voltage Range: 3.15~3.45, 4.75~5.25
Output Voltage: ±58
Output Current: 50mA, 60mA
Output Power (Watts): -
Isolation: 2.5kVDC
Operating Temperature: -40 to +105ºC
Storage Temperature: -50 to +125ºC
Weight: 0.07oz (2g) Typ.

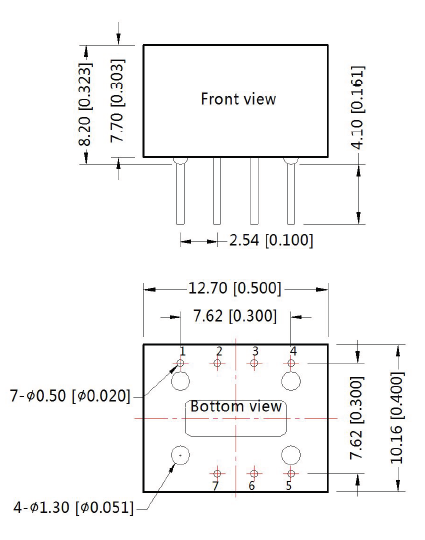

Dimensions: 0.50in x 0.40in x 0.30in (12.70mm x 10.16mm x 7.70mm)
Case Material: Black Flame-Retardant & Heat-Resistant Plastic (UL94 V-0)
Notes & safety
Notes: 1. The presence of dust, fierce vibration, impulsion, and corrosive gas may cause damage to product.
2. The performance indexes of the product models are as listed in the data sheet above, but some indexes of non-standard model products will exceed the above mentioned requirements. Contact factory for specific information.
3. Customization available.
Application Precautions:
-Please read instructions carefully before use; call factory if you have questions.
-Do not use product in hazardous area
-This product is powered by DC power supply. AC power supply is prohibited.
-Do not dismount and assemble the product without permission to avoid failure or malfunction of equipment.
-Ex factory inspection and quality control have been strictly conducted for this product. If any abnormal operation or possibility of failure occurs in internal module, please contact factory for support.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: EN60950
RoHS Compliance: Yes
