RBA6

The RBA6 series of DC/DC converters offers 6 watts of output power in a through hole, chassis mount, or DIN Rail mount package. This series consists of isolated and regulated dual and single output models with a wide 2:1 input voltage range. Features of this series include high efficiency, isolation voltage of 1500VDC, and protection against input under voltage and output over voltage, over current, and short circuit conditions. This series has IEC60950, UL60950, and EN60950 approvals and is RoHS compliant.

• Wide 2:1 Input Voltage Range • High Efficiency • Isolated & Regulated Dual and Single Output Models • Isolation Voltage of 1500VDC • International Standard Pin-Out • RoHS Compliant • 3 Years Warranty • Input Under Voltage Protection • Output Over Voltage, Over Current, and Short Circuit Protection • Reverse Voltage Protection Available for Chassis & DIN Rail Mounting • Meets CISPR32/EN55032 Class A without External Components • IEC60950, UL60950, and EN60950 Approval
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
RBA6-12S05 Input Voltage: 12 Output Voltage: 5 Output Current: 1200mA Output Power (W): 6 No. Outputs: S Case: Through Hole Get a Quote
RBA6-12S05C Input Voltage: 12 Output Voltage: 5 Output Current: 1200mA Output Power (W): 6 No. Outputs: S Case: Chassis Mount Get a Quote
RBA6-12S05DN Input Voltage: 12 Output Voltage: 5 Output Current: 1200mA Output Power (W): 6 No. Outputs: S Case: DIN Rail Get a Quote
RBA6-12S12 Input Voltage: 12 Output Voltage: 12 Output Current: 500mA Output Power (W): 6 No. Outputs: S Case: Through Hole Get a Quote
RBA6-12S12C Input Voltage: 12 Output Voltage: 12 Output Current: 500mA Output Power (W): 6 No. Outputs: S Case: Chassis Mount Get a Quote
RBA6-12S12DN Input Voltage: 12 Output Voltage: 12 Output Current: 500mA Output Power (W): 6 No. Outputs: S Case: DIN Rail Get a Quote
RBA6-24S03 Input Voltage: 24 Output Voltage: 3.3 Output Current: 1500mA Output Power (W): 6 No. Outputs: S Case: Through Hole Get a Quote
RBA6-24S03C Input Voltage: 24 Output Voltage: 3.3 Output Current: 1500mA Output Power (W): 6 No. Outputs: S Case: Chassis Mount Get a Quote
RBA6-24S03DN Input Voltage: 24 Output Voltage: 3.3 Output Current: 1500mA Output Power (W): 6 No. Outputs: S Case: DIN Rail Get a Quote
RBA6-24S05 Input Voltage: 24 Output Voltage: 5 Output Current: 1200mA Output Power (W): 6 No. Outputs: S Case: Through Hole Get a Quote
RBA6-24S05C Input Voltage: 24 Output Voltage: 5 Output Current: 1200mA Output Power (W): 6 No. Outputs: S Case: Chassis Mount Get a Quote
RBA6-24S05DN Input Voltage: 24 Output Voltage: 5 Output Current: 1200mA Output Power (W): 6 No. Outputs: S Case: DIN Rail Get a Quote
RBA6-24S09 Input Voltage: 24 Output Voltage: 9 Output Current: 667mA Output Power (W): 6 No. Outputs: S Case: Through Hole Get a Quote
RBA6-24S09C Input Voltage: 24 Output Voltage: 9 Output Current: 667mA Output Power (W): 6 No. Outputs: S Case: Chassis Mount Get a Quote
RBA6-24S09DN Input Voltage: 24 Output Voltage: 9 Output Current: 667mA Output Power (W): 6 No. Outputs: S Case: DIN Rail Get a Quote
RBA6-24S12 Input Voltage: 24 Output Voltage: 12 Output Current: 500mA Output Power (W): 6 No. Outputs: S Case: Through Hole Get a Quote
RBA6-24S12C Input Voltage: 24 Output Voltage: 12 Output Current: 500mA Output Power (W): 6 No. Outputs: S Case: Chassis Mount Get a Quote
RBA6-24S12DN Input Voltage: 24 Output Voltage: 12 Output Current: 500mA Output Power (W): 6 No. Outputs: S Case: DIN Rail Get a Quote
RBA6-24S15 Input Voltage: 24 Output Voltage: 15 Output Current: 400mA Output Power (W): 6 No. Outputs: S Case: Through Hole Get a Quote
RBA6-24S15C Input Voltage: 24 Output Voltage: 15 Output Current: 400mA Output Power (W): 6 No. Outputs: S Case: Chassis Mount Get a Quote
RBA6-24S15DN Input Voltage: 24 Output Voltage: 15 Output Current: 400mA Output Power (W): 6 No. Outputs: S Case: DIN Rail Get a Quote
RBA6-24S24 Input Voltage: 24 Output Voltage: 24 Output Current: 250mA Output Power (W): 6 No. Outputs: S Case: Through Hole Get a Quote
RBA6-24S24C Input Voltage: 24 Output Voltage: 24 Output Current: 250mA Output Power (W): 6 No. Outputs: S Case: Chassis Mount Get a Quote
RBA6-24S24DN Input Voltage: 24 Output Voltage: 24 Output Current: 250mA Output Power (W): 6 No. Outputs: S Case: DIN Rail Get a Quote
RBA6-48S03 Input Voltage: 48 Output Voltage: 3.3 Output Current: 1500mA Output Power (W): 6 No. Outputs: S Case: Through Hole Get a Quote
RBA6-48S03C Input Voltage: 48 Output Voltage: 3.3 Output Current: 1500mA Output Power (W): 6 No. Outputs: S Case: Chassis Mount Get a Quote
RBA6-48S03DN Input Voltage: 48 Output Voltage: 3.3 Output Current: 1500mA Output Power (W): 6 No. Outputs: S Case: DIN Rail Get a Quote
RBA6-48S05 Input Voltage: 48 Output Voltage: 5 Output Current: 1200mA Output Power (W): 6 No. Outputs: S Case: Through Hole Get a Quote
RBA6-48S05C Input Voltage: 48 Output Voltage: 5 Output Current: 1200mA Output Power (W): 6 No. Outputs: S Case: Chassis Mount Get a Quote
RBA6-48S05DN Input Voltage: 48 Output Voltage: 5 Output Current: 1200mA Output Power (W): 6 No. Outputs: S Case: DIN Rail Get a Quote
RBA6-48S12 Input Voltage: 48 Output Voltage: 12 Output Current: 500mA Output Power (W): 6 No. Outputs: S Case: Through Hole Get a Quote
RBA6-48S12C Input Voltage: 48 Output Voltage: 12 Output Current: 500mA Output Power (W): 6 No. Outputs: S Case: Chassis Mount Get a Quote
RBA6-48S12DN Input Voltage: 48 Output Voltage: 12 Output Current: 500mA Output Power (W): 6 No. Outputs: S Case: DIN Rail Get a Quote
RBA6-48S15 Input Voltage: 48 Output Voltage: 15 Output Current: 400mA Output Power (W): 6 No. Outputs: S Case: Through Hole Get a Quote
RBA6-48S15C Input Voltage: 48 Output Voltage: 15 Output Current: 400mA Output Power (W): 6 No. Outputs: S Case: Chassis Mount Get a Quote
RBA6-48S15DN Input Voltage: 48 Output Voltage: 15 Output Current: 400mA Output Power (W): 6 No. Outputs: S Case: DIN Rail Get a Quote
RBA6-48S24 Input Voltage: 24 Output Voltage: 24 Output Current: 250mA Output Power (W): 6 No. Outputs: S Case: Through Hole Get a Quote
RBA6-48S24C Input Voltage: 48 Output Voltage: 24 Output Current: 250mA Output Power (W): 6 No. Outputs: S Case: Chassis Mount Get a Quote
RBA6-48S24DN Input Voltage: 48 Output Voltage: 24 Output Current: 250mA Output Power (W): 6 No. Outputs: S Case: DIN Rail Get a Quote
RBA6-12D05 Input Voltage: 12 Output Voltage: 5, -5 Output Current: ±600mA Output Power (W): 6 No. Outputs: D Case: Through Hole Get a Quote
RBA6-12D05C Input Voltage: 12 Output Voltage: 5, -5 Output Current: ±600mA Output Power (W): 6 No. Outputs: D Case: Chassis Mount Get a Quote
RBA6-12D05DN Input Voltage: 12 Output Voltage: 5, -5 Output Current: ±600mA Output Power (W): 6 No. Outputs: D Case: DIN Rail Get a Quote
RBA6-12D12 Input Voltage: 12 Output Voltage: 12, -12 Output Current: ±250mA Output Power (W): 6 No. Outputs: D Case: Through Hole Get a Quote
RBA6-12D12C Input Voltage: 12 Output Voltage: 12, -12 Output Current: ±250mA Output Power (W): 6 No. Outputs: D Case: Chassis Mount Get a Quote
RBA6-12D12DN Input Voltage: 12 Output Voltage: 12, -12 Output Current: ±250mA Output Power (W): 6 No. Outputs: D Case: DIN Rail Get a Quote
RBA6-24D05 Input Voltage: 24 Output Voltage: 5, -5 Output Current: ±600mA Output Power (W): 6 No. Outputs: D Case: Through Hole Get a Quote
RBA6-24D05C Input Voltage: 24 Output Voltage: 5, -5 Output Current: ±600mA Output Power (W): 6 No. Outputs: D Case: Chassis Mount Get a Quote
RBA6-24D05DN Input Voltage: 24 Output Voltage: 5, -5 Output Current: ±600mA Output Power (W): 6 No. Outputs: D Case: DIN Rail Get a Quote
RBA6-24D12 Input Voltage: 24 Output Voltage: 12, -12 Output Current: ±250mA Output Power (W): 6 No. Outputs: D Case: Through Hole Get a Quote
RBA6-24D12C Input Voltage: 24 Output Voltage: 12, -12 Output Current: ±250mA Output Power (W): 6 No. Outputs: D Case: Chassis Mount Get a Quote
RBA6-24D12DN Input Voltage: 24 Output Voltage: 12, -12 Output Current: ±250mA Output Power (W): 6 No. Outputs: D Case: DIN Rail Get a Quote
RBA6-24D15 Input Voltage: 24 Output Voltage: 15, -15 Output Current: ±200mA Output Power (W): 6 No. Outputs: D Case: Through Hole Get a Quote
RBA6-24D15C Input Voltage: 24 Output Voltage: 15, -15 Output Current: ±200mA Output Power (W): 6 No. Outputs: D Case: Chassis Mount Get a Quote
RBA6-24D15DN Input Voltage: 24 Output Voltage: 15, -15 Output Current: ±200mA Output Power (W): 6 No. Outputs: D Case: DIN Rail Get a Quote
Specification Value
Input
Input Voltage (Nominal): 12, 24, 48
Input Voltage Range: 9~18, 18~36, 36~75
Input Filter: Pi Filter
Output
Output Voltage: 3.3, 5, 9, 12, 15, 24, ±5, ±12, ±15
Voltage Accuracy: 5%-100% Load: ±3% Max.
0%-5% Load, ±5VDC Output: ±5% Max.
0%-5% Load, Other Outputs: ±3% Max.
Output Current: 250mA, 400mA, 500mA, 667mA, 1200mA, 1500mA, ±200mA, ±250mA, ±600mA
Output Power (Watts): 6
General
Efficiency: Up to 88%
Environmental
Operating Temperature: -40 to +85ºC
Storage Temperature: -55 to +125ºC
Physical
Weight: Through Hole Package: 0.49oz (14g)
Chassis Mount: 1.27oz (36g)
DIN Rail Mount: 1.98oz (56g)

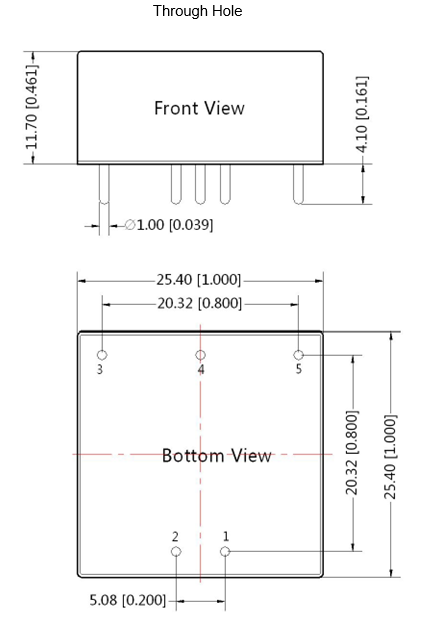

Dimensions: Through Hole Package: 1in x 1in x 0.46in (25.4mm x 25.4mm x 11.7mm)

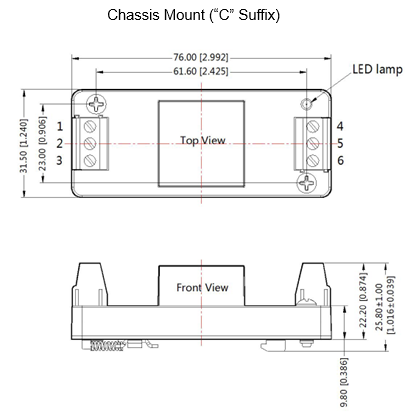

Chassis Mount: 2.99in x 1.24in x 0.84in (76mm x 31.5mm x 21.2mm)

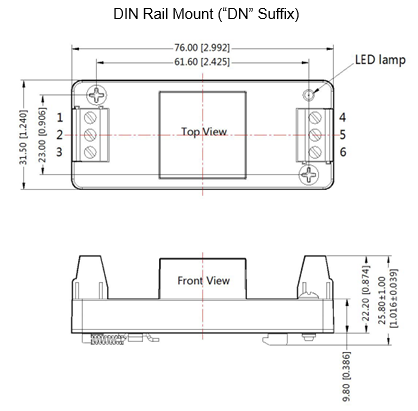

DIN Rail Mount: 2.99in x 1.24in x 1.02in (76mm x 31.5mm x 25.8mm)
Case Material: Aluminum Alloy
Notes & safety
Notes: 1. Chassis mount and DIN rail mount options are available for this series. To indicate Chassis Mount, add “C” suffix to model number Ex. RBA6-12S05C. To indicate DIN rail mount options, add “DN” suffix to model number Ex. RBA6-12S05DN.
2. Efficiency is measured in nominal input voltage and rated output load. Due to input reverse polarity, chassis and DIN rail mount models minimum efficiency greater than Min-2 is qualified.
3. Capacitive load of positive and negative outputs are identical
4. Due to input reverse polarity protection function, minimum value and input voltage range and starting voltage is higher than 1VDC DIP package.
5. 0%-5% load ripple & Noise is no more than 5% Vo. Ripple and noise are measured by “parallel cable” method.
6. This series of products uses reduced frequency technology. The switching frequency is test value of full load, when load is reduced to below 50%, switching frequency decreases with decreasing load.
7. Recommended unbalanced degree of the dual output module load is ≤±5%. If the degree exceeds ±5%, then the product performance cannot be guaranteed to comply with all parameters in the datasheet. Please contact factory for more information.
8. Customization is available, please contact factory.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: IEC60950, UL60950, EN60950
RoHS Compliance: Yes
