LAN H
When high isolation is required and board space is at a premium, the LAN H series offers a superior solution at an economical price. The LAN H series is non-regulated, and is housed in an industry-standard four pin SIP package for single outputs, or five pin DIP for dual output models.
• 100% Burned-in
• RoHS Compliant
• 1000VDC I/O Isolation
• Miniature Package Size
• Single and Dual Outputs
• 4 PIN SIP and 8 PIN DIP Package
• Unregulated Output Types
• Up to 1 Watt Output Power
• Custom Solutions Available
• UL 94V-0 Package Material
• Input 5, 12, 15, 24, and 48VDC
• 3000VDC I/O Isolation Option (“H” suffix)
• Recognized by UL60950-1
• Short Circuit Protection
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| LANH1203ND | Input Voltage: 12 | Output Voltage: 3.3, -3.3 | Output Current: ±154mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.5" x 0.37" | Get a Quote |
| LANH1205N | Input Voltage: 12 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| LANH1205ND | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.5" x 0.37" | Get a Quote |
| LANH1209N | Input Voltage: 12 | Output Voltage: 9 | Output Current: 110mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| LANH1209ND | Input Voltage: 12 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.5" x 0.37" | Get a Quote |
| LANH1212N | Input Voltage: 12 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| LANH1212ND | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.5" x 0.37" | Get a Quote |
| LANH1215N | Input Voltage: 12 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| LANH1224ND | Input Voltage: 12 | Output Voltage: 24, -24 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.5" x 0.37" | Get a Quote |
| LANH1503ND | Input Voltage: 15 | Output Voltage: 3.3, -3.3 | Output Current: ±154mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.5" x 0.37" | Get a Quote |
| LANH1505N | Input Voltage: 15 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| LANH1505ND | Input Voltage: 15 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.5" x 0.37" | Get a Quote |
| LANH1509N | Input Voltage: 15 | Output Voltage: 9 | Output Current: 110mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| LANH1509ND | Input Voltage: 15 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.5" x 0.37" | Get a Quote |
| LANH1512N | Input Voltage: 15 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| LANH1512ND | Input Voltage: 15 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.5" x 0.37" | Get a Quote |
| LANH1515N | Input Voltage: 15 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| LANH1524ND | Input Voltage: 15 | Output Voltage: 24, -24 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.5" x 0.37" | Get a Quote |
| LANH2403ND | Input Voltage: 24 | Output Voltage: 3.3, -3.3 | Output Current: ±154mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.5" x 0.37" | Get a Quote |
| LANH2405N | Input Voltage: 24 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| LANH2405ND | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.5" x 0.37" | Get a Quote |
| LANH2409N | Input Voltage: 24 | Output Voltage: 9 | Output Current: 110mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| LANH2409ND | Input Voltage: 24 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.5" x 0.37" | Get a Quote |
| LANH2412N | Input Voltage: 24 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| LANH2412ND | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.5" x 0.37" | Get a Quote |
| LANH2415N | Input Voltage: 24 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| LANH2424ND | Input Voltage: 24 | Output Voltage: 24, -24 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.5" x 0.37" | Get a Quote |
| LANH4805N | Input Voltage: 48 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| LANH4805ND | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.5" x 0.37" | Get a Quote |
| LANH4809N | Input Voltage: 48 | Output Voltage: 9 | Output Current: 110mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| LANH4809ND | Input Voltage: 48 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.5" x 0.37" | Get a Quote |
| LANH4812N | Input Voltage: 48 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| LANH4812ND | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.5" x 0.37" | Get a Quote |
| LANH4815N | Input Voltage: 48 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| LANH4824ND | Input Voltage: 48 | Output Voltage: 24, -24 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.5" x 0.37" | Get a Quote |
| LANH503N | Input Voltage: 5 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| LANH505N | Input Voltage: 5 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| LANH505ND | Input Voltage: 5 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.5" x 0.37" | Get a Quote |
| LANH509N | Input Voltage: 5 | Output Voltage: 9 | Output Current: 110mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| LANH509ND | Input Voltage: 5 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.5" x 0.37" | Get a Quote |
| LANH512N | Input Voltage: 5 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| LANH512ND | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.5" x 0.37" | Get a Quote |
| LANH515N | Input Voltage: 5 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" x 0.24" x 0.39" | Get a Quote |
| LANH524ND | Input Voltage: 5 | Output Voltage: 24, -24 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.5" x 0.37" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 5, 12, 15, 24, 48 |
| Input Voltage Range: | 10.8-13.2, 13.5-16.5, 21.6-26.4, 4.5-5.5, 43.2-52.8 |
| Input Filter: | Capacitor |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, ±3.3, ±5, ±9, ±12, ±24 |
| Voltage Accuracy: | ±5% |
| Output Current: | 303mA, 200mA, 110mA, 84mA, 67mA, ±100mA, ±56mA, ±42mA, ±34mA, ±154mA |
| Output Power (Watts): | 1 |
| Short Circuit Protection: | Short Term |
| General | |
| Efficiency: | Up to 75% |
| Isolation: | 1000VDC |
| Environmental | |
| Operating Temperature: | -25 to 70°C |
| Storage Temperature: | -40 to 100°C |
| Physical | |
| Weight: | (0.1oz) 2.7g |

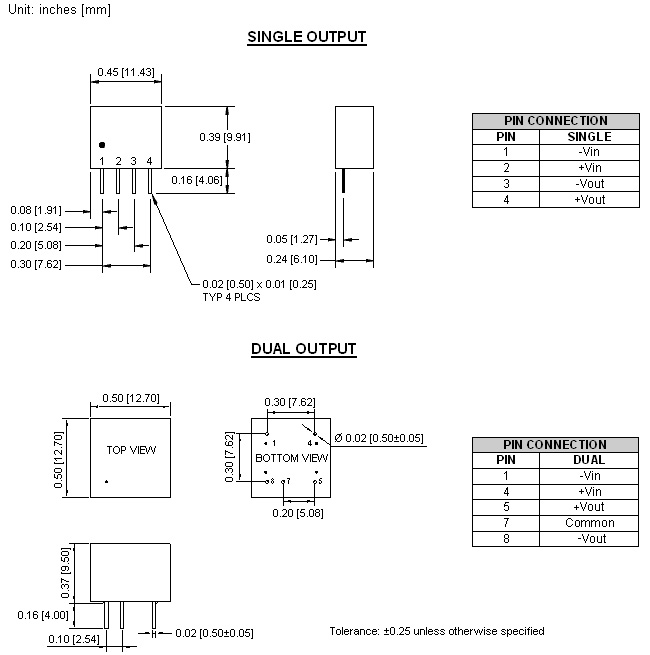

| Dimensions: | Single: 0.45" x 0.24" x 0.39" (11.43 x 6.10 x 9.91 mm) Dual: 0.50" x 0.50" x 0.37" (12.70 x 12.7 x 9.50 mm) |
| Case Material: | DAP |
| Notes & safety | |

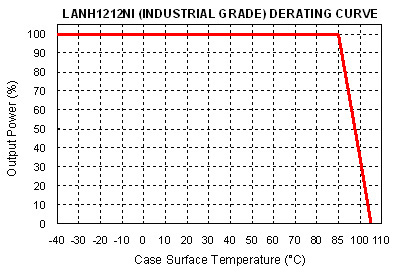

| Notes: | 1. For industrial grade operating temperature of -40ºC to +85ºC (no derating to +85ºC) add suffix “I” to the model number. 2. For 3000VDC I/O isolation add the suffix “H” to the model number 3. All case and pin-to-case dimensions reference only unless otherwise noted. 4. The LAN H series is housed in an industry standard four pin SIP package for single output models and five pin DIP package for dual output models. 5. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | Recognized by UL 60950-1 |
| RoHS Compliance: | Yes |
