DCURB
The DCURB series of DC/DC converters offers up to 20 watts of output power in a compact DIP, chassis mount, or DIN Rail case. This series consists of single output models with a wide 4:1 input voltage range. Each model in this series is RoHS compliant, meets EN50155 railway standard, has low temperature rise, high efficiency, and is cooled by free air convection. This series has input under-voltage, over voltage, over current, over temperature, and short circuit protection as well as IEC62368-1, UL62368-1, EN62368-1, and BS EN62368-1 approvals.
• 4:1 Wide Input Voltage Range • High Efficiency up to 91% • I/O Isolation Test Voltage: 1500VDC • DIP Case, Chassis Mount, or DIN Rail Case • Input Reverse Polarity Protection Available with Chassis (A2S) or 35mm DIN Rail Mounting (A4S) • RoHS Compliant • Input Under-Voltage, and Output Over Voltage, Over Current, and Short Circuit Protection • Cooling by Free Air Convection • Heat Sink Available • Meets EN50155 Railway Standard • IEC62368-1, UL62368-1, EN62368-1, and BS EN62368-1 Safety Approvals
Part Number Setup:
Blank = DIP, "H" = Heatsink, “A2S” = Chassis Mount, “A4S” = DIN Rail Mount
Blank = DIP, "H" = Heatsink, “A2S” = Chassis Mount, “A4S” = DIN Rail Mount
Example:
DCURB24S05-20WHA2S = 24Vin, 5Vout Chassis Mount with Heatsink
DCURB24S05-20WHA2S = 24Vin, 5Vout Chassis Mount with Heatsink
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCURB2403-20W | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 5000mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 1" x 1" x 0.46" | Get a Quote |
| DCURB2405-20W | Input Voltage: 24 | Output Voltage: 5 | Output Current: 4000mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 1" x 1" x 0.46" | Get a Quote |
| DCURB2406-20W | Input Voltage: 24 | Output Voltage: 6 | Output Current: 3333mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 1" x 1" x 0.46" | Get a Quote |
| DCURB2412-20W | Input Voltage: 24 | Output Voltage: 12 | Output Current: 1667mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 1" x 1" x 0.46" | Get a Quote |
| DCURB2415-20W | Input Voltage: 24 | Output Voltage: 15 | Output Current: 1333mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 1" x 1" x 0.46" | Get a Quote |
| DCURB2424-20W | Input Voltage: 24 | Output Voltage: 24 | Output Current: 833mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 1" x 1" x 0.46" | Get a Quote |
| DCURB4803-20W | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 5000mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 1" x 1" x 0.46" | Get a Quote |
| DCURB4805-20W | Input Voltage: 48 | Output Voltage: 5 | Output Current: 4000mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 1" x 1" x 0.46" | Get a Quote |
| DCURB4812-20W | Input Voltage: 48 | Output Voltage: 12 | Output Current: 1667mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 1" x 1" x 0.46" | Get a Quote |
| DCURB4815-20W | Input Voltage: 48 | Output Voltage: 15 | Output Current: 1333mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 1" x 1" x 0.46" | Get a Quote |
| DCURB4824-20W | Input Voltage: 48 | Output Voltage: 24 | Output Current: 833mA | Output Power (W): 20 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 1" x 1" x 0.46" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 9~36, 18~75 |
| Input Filter: | Pi Filter |
| Output | |
| Output Voltage: | 3.3, 5, 6, 12, 15, 24 |
| Voltage Accuracy: | ±1% Typ. |
| Output Current: | 5000mA, 4000mA, 3333mA, 1667mA, 1333mA, 833mA |
| Output Power (Watts): | 20 |
| Short Circuit Protection: | Hiccup, Continuous, Self-Recovery |
| Over Voltage Protection: | 110-160%Vo |
| General | |
| Efficiency: | Up to 91% |
| Isolation: | Up to 1500VAC |
| Environmental | |
| Operating Temperature: | 3.3V, 5V, 6V: -40 to 95ºC Others: -40 to 105ºC |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | DIP Package: 0.53oz (15g) Chassis Mount: 1.34oz (38g) DIN Rail Mount: 2.05oz (58g) DIP Package with Heatsink: 0.71oz (20g) Chassis Mount with Heatsink: 1.41oz (40g) DIN Rail Mount with Heatsink: 2.12oz (60g) |

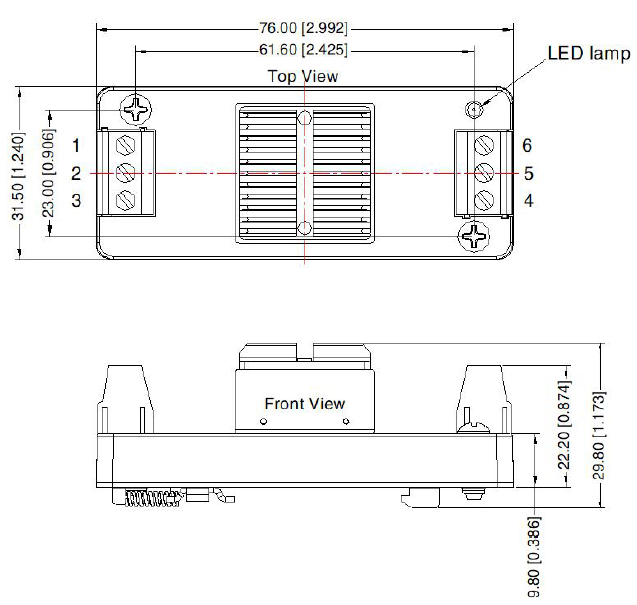

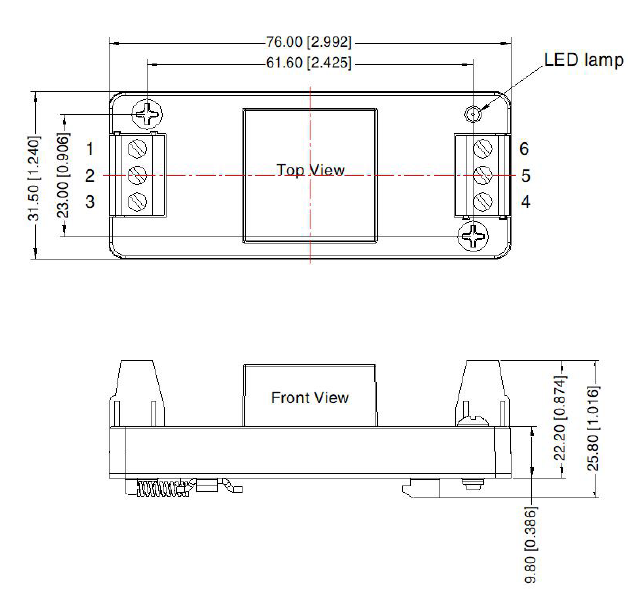

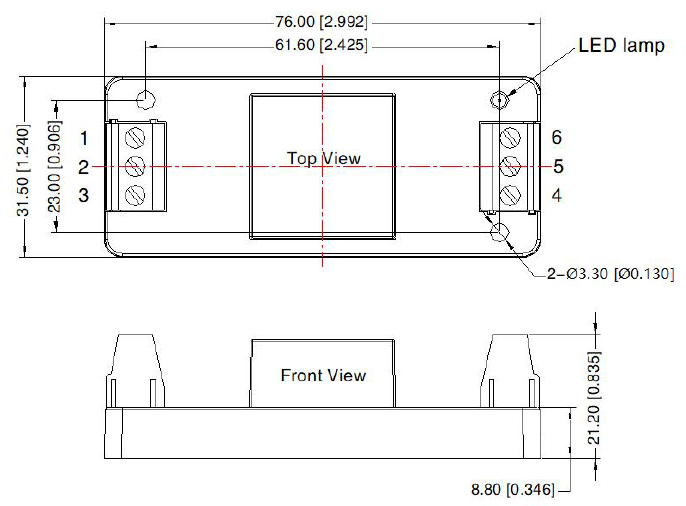

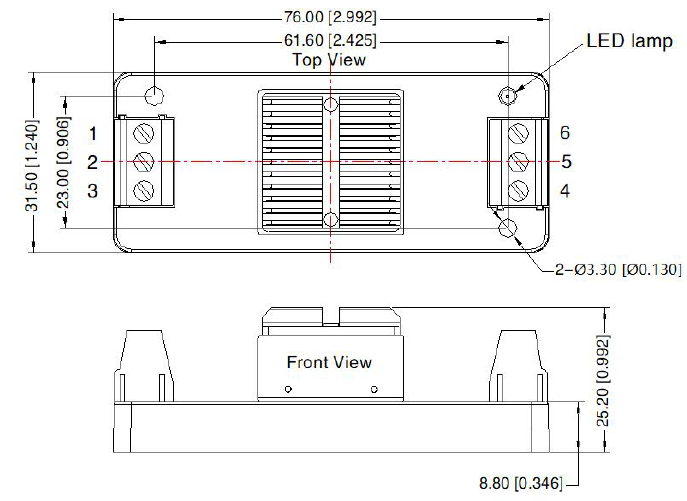

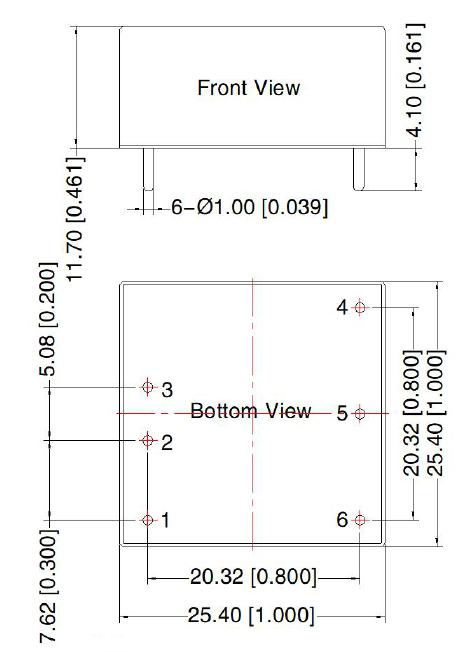

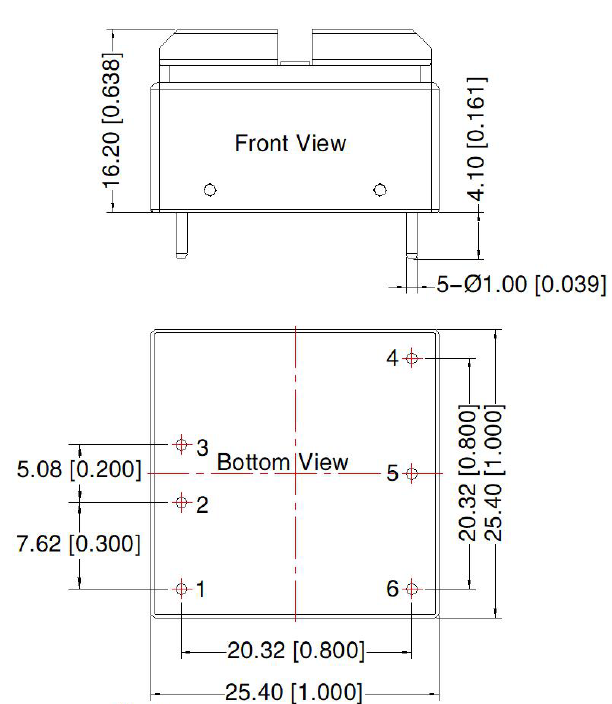

| Dimensions: | DIP Package: 1in x 1in x 0.46in (25.40mm x 25.40mm x 11.70mm) Chassis Mount: 2.99in x 1.24in x 0.83in (76mm x 31.50mm x 21.20mm) DIN Rail Mount: 2.99in x 1.24in x 1.02in (76mm x 31.50mm x 25.80mm) DIP Package with Heatsink: 1in x 1in x 0.64in (25.40mm x 25.40mm x 16.20mm) Chassis Mount with Heatsink: 2.99in x 1.24in x 0.99in (76mm x 31.50mm x 25.20mm) DIN Rail Mount with Heatsink: 2.99in x 1.24in x 1.17in (76mm x 31.50mm x 29.80mm) |
| Case Material: | Aluminum Alloy |
| Notes & safety | |
| Notes: | 1. Part number with suffix “H” are heat sink mounting, parts with suffix “A2S” are chassis mounted, parts with suffix “A4S” are DIN Rail mounted, for example DCURB2405-20WHA2S is chassis mounted with heat sink. We recommend to choose modules with a heat sink for enhanced heat dissipation and applications with extreme temperature requirements. 2. The A2S and A24 models start-up and minimum input voltages are increased by 1VDC due to input reverse polarity protection circuit. 4. Maximum capacitive load offered were tested at nominal input voltage and full load. 5. Efficiency measured at nominal input and rated output load. Efficiency of A2S and A4S is decreased by 2% due to input reverse polarity protection circuit. 6. Ctrl pin voltage is referenced to input GND. 7. Under 0%-5% load conditions, ripple & noise does not exceed 5%Vo. The “parallel cable” method is used for Ripple and Noise test, contact factory for more information. 8. Switching frequency is measured at full load. Module reduces switching frequency for light load (below 50%) efficiency improvement. 9. This product is Listed to applicable standards and requirements by UL. 10. Customization is available 11. Products shall be classified according to ISO14001 and related environmental laws and regulations and should be handled by qualified units. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC62368-1, UL62368-1, EN62368-1, and BS EN62368-1 |
| RoHS Compliance: | Yes |
