DCMUA15
The DCMUA15 series of isolated DC/DC power converters provides 15 Watts of continuous output power in a 2.0” x 1.0” x 0.4” shielded metal case. This series consists of single and dual output models with 2:1 input voltage ranges of 9-18VDC, 18-36VDC, and 36-75VDC. Some features include high efficiency up to 87%, 1500VDC I/O isolation, and -55°C to +95°C extended operating temperature range. The DCMUA15 series is RoHS compliant and has short circuit, over load, and over voltage protection. These converters are best suited for use in military applications, battery operated equipment, measurement equipment, telecom, wireless networks, industry control systems, and anywhere where isolated, tightly regulated voltages and compact size are required.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCMUA12S12-5 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 1250mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| DCMUA24S12-5 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 1250mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| DCMUA48S12-5 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 1250mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| DCMUA12S5-15 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 3000mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| DCMUA12D15-15 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| DCMUA24S5-15 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 3000mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| DCMUA24D15-15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| DCMUA48S5-15 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 3000mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| DCMUA48D15-15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 18~36, 36~75, 9~18 |
| Input Filter: | Pi Type |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 5, 12, ±15 |
| Voltage Accuracy: | ±1.0% |
| Output Current: | 3000mA, 1250mA, ±500mA |
| Output Power (Watts): | 15 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| General | |
| Efficiency: | Up to 87% |
| Isolation: | 1500VDC |
| Environmental | |

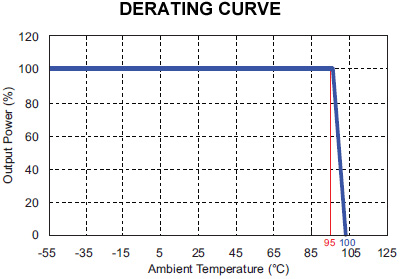

| Operating Temperature: | -55 to 95°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 1.06 oz |

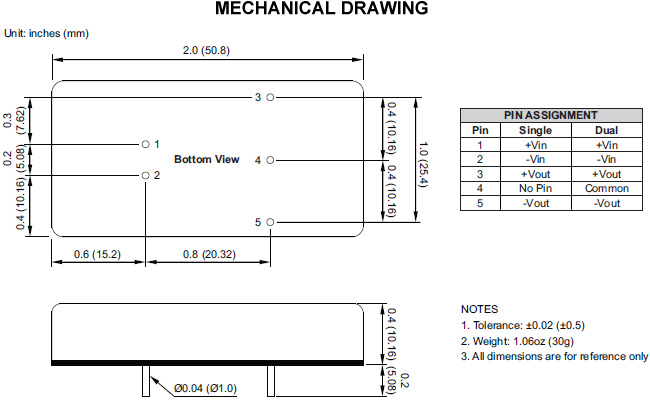

| Dimensions: | 2.0 x 1.0 x 0.4 |
| Case Material: | Nickel-Coated Copper |
| Notes & safety | |
| Notes: | 1. Output current under this value will not damage these devices; however, they may not meet all listed specifications. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC/EN 60950-1 |
| RoHS Compliance: | Yes |
Get a Quote
Request information for from Wall Industries.
Custom Solutions
Wall Industries, Inc. offers fully custom power design capabilities. Our team of electrical and mechanical power design engineers will utilize proven design topologies and concepts to create a solution to your power requirements. If you don’t have a specification, Wall’s engineering team will assist you in determining what your requirements are and how best to provide a solution.
