DCMUA
The DCMUA series of isolated DC/DC power converters provides 5 Watts of continuous output power in a 2.0” x 1.0” x 0.4” shielded metal case. This series consists of single and dual output models with 2:1 input voltage ranges of 9-18VDC, 18~36VDC, and 36~75VDC. Some features include high efficiency up to 87%, 1500VDC I/O isolation, and -55°C to +95°C extended operating temperature range. The DCMUA series is RoHS compliant and has short circuit, over load, over voltage, and reverse voltage protection. These converters are best suited for use in military applications, battery operated equipment, measurement equipment, telecom, wireless networks, industry control systems, and anywhere where isolated, tightly regulated voltages and compact size are required.
• Single and Dual Outputs
• 2:1 Input Voltage Ranges: 9-18VDC, 18-36VDC, and 36~75VDC
• High Power Density
• Fixed Switching Frequency: 300KHz
• 1500VDC I/O Isolation
• High Efficiency up to 87%
• Short Circuit, Over Voltage, Over Load, and Reverse Voltage Protection
• Shielded Metal Case with Insulated Base-plate
• Industry Standard 2.0” x 1.0” x 0.4” DIP Package
• Lead Free Design, RoHS Compliant
• Extended Operating Temperature Range: -55°C to +95°C
• Remote ON/OFF Control
• Custom Designs Available
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCMUA12S3.3-5 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 1500mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| DCMUA12S5-5 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 1000mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| DCMUA12S15-5 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 333mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| DCMUA24S3.3-5 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 1500mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| DCMUA24S5-5 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 1000mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| DCMUA24S15-5 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 333mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| DCMUA48S3.3-5 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 1500mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| DCMUA48S5-5 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 1000mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| DCMUA48S9-5 | Input Voltage: 48 | Output Voltage: 9 | Output Current: 550mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| DCMUA48S15-5 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 333mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| DCMUA12D5-5 | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±500mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| DCMUA12D12-5 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±208mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| DCMUA12D15-5 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±167mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| DCMUA24D5-5 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±500mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| DCMUA24D12-5 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±208mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| DCMUA24D15-5 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±167mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| DCMUA48D5-5 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±500mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| DCMUA48D12-5 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±208mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| DCMUA48D15-5 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±167mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 2" x 1.0" x 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 18~36, 36~75, 9~18 |
| Input Filter: | Pi Type |
| Remote ON/OFF: | Yes |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, ±5, ±12, ±15 |
| Voltage Accuracy: | ±1.0% |
| Output Current: | 1.5A, 1A, 416mA, 333mA, ±500mA, ±208mA, ±167mA |
| Output Power (Watts): | 5 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | Yes |
| General | |
| Efficiency: | Up to 87% |
| Isolation: | 1500VDC (input to output) |
| Environmental | |

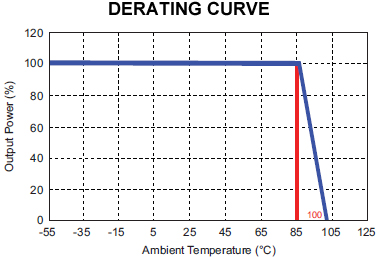

| Operating Temperature: | -55 to 95°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 1.06 oz |

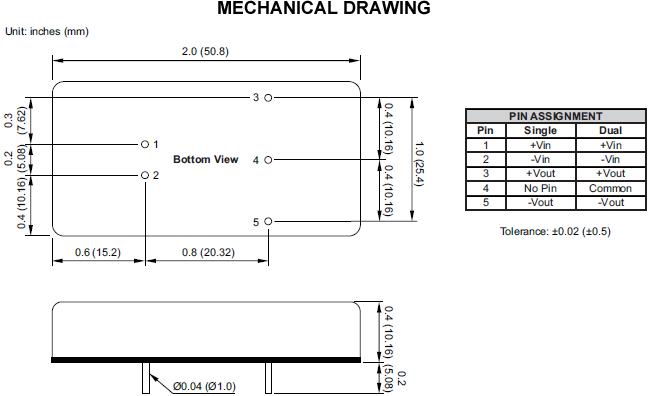

| Dimensions: | 2.0 x 1.0 x 0.4 |
| Case Material: | Nickel-Coated Copper |
| Notes & safety | |
| Notes: | 1. Output current under this value will not damage these devices; however, they may not meet all listed specifications. 2. For each output. Due to advances in technology, specifications subject to change without notice. |
| RoHS Compliance: | Yes |
