DCMSE02-HI

The DCMSE02-HI series of DC/DC converters offers 2 watts of output power in an ultra-compact 0.94” x 0.54” x 0.35” industrial SMD package. This series consists of single and dual output models with ultra-high I/O isolation of 8000VDC with reinforced insulation. Each model in this series is qualified for IGBT and high isolation applications, is RoHS and REACH compliant, and has short circuit protection. This series has UL/cUL/IEC/EN 60950-1 safety approvals and tape & reel packaging is available.

• Industrial SMD Package • Ultra-High I/O Isolation of 8000VDC with Reinforced Insulation • RoHS & REACH Compliant • Qualified for IGBT and High Isolation Apps • Tape & Reel Package Available • Short Circuit Protection • UL/cUL/IEC/EN 60950-1 Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DCMSE02-05S05HI Input Voltage: 5 Output Voltage: 5 Output Current: 400mA Output Power (W): 2 No. Outputs: S Case: Surface Mount Get a Quote
DCMSE02-05S12HI Input Voltage: 5 Output Voltage: 12 Output Current: 165mA Output Power (W): 2 No. Outputs: S Case: Surface Mount Get a Quote
DCMSE02-05S15HI Input Voltage: 5 Output Voltage: 15 Output Current: 133mA Output Power (W): 2 No. Outputs: S Case: Surface Mount Get a Quote
DCMSE02-12S05HI Input Voltage: 12 Output Voltage: 5 Output Current: 400mA Output Power (W): 2 No. Outputs: S Case: Surface Mount Get a Quote
DCMSE02-12S12HI Input Voltage: 12 Output Voltage: 12 Output Current: 165mA Output Power (W): 2 No. Outputs: S Case: Surface Mount Get a Quote
DCMSE02-12S15HI Input Voltage: 12 Output Voltage: 15 Output Current: 133mA Output Power (W): 2 No. Outputs: S Case: Surface Mount Get a Quote
DCMSE02-24S05HI Input Voltage: 24 Output Voltage: 5 Output Current: 400mA Output Power (W): 2 No. Outputs: S Case: Surface Mount Get a Quote
DCMSE02-24S12HI Input Voltage: 24 Output Voltage: 12 Output Current: 165mA Output Power (W): 2 No. Outputs: S Case: Surface Mount Get a Quote
DCMSE02-24S15HI Input Voltage: 24 Output Voltage: 15 Output Current: 133mA Output Power (W): 2 No. Outputs: S Case: Surface Mount Get a Quote
DCMSE02-05D12HI Input Voltage: 5 Output Voltage: 12, -12 Output Current: ±83mA Output Power (W): 2 No. Outputs: D Case: Surface Mount Get a Quote
DCMSE02-05D15HI Input Voltage: 5 Output Voltage: 15, -15 Output Current: ±66mA Output Power (W): 2 No. Outputs: D Case: Surface Mount Get a Quote
DCMSE02-12D12HI Input Voltage: 12 Output Voltage: 12, -12 Output Current: ±83mA Output Power (W): 2 No. Outputs: D Case: Surface Mount Get a Quote
DCMSE02-12D15HI Input Voltage: 12 Output Voltage: 15, -15 Output Current: ±66mA Output Power (W): 2 No. Outputs: D Case: Surface Mount Get a Quote
DCMSE02-24D12HI Input Voltage: 24 Output Voltage: 12, -12 Output Current: ±83mA Output Power (W): 2 No. Outputs: D Case: Surface Mount Get a Quote
DCSME02-24D15HI Input Voltage: 24 Output Voltage: 15, -15 Output Current: ±66mA Output Power (W): 2 No. Outputs: D Case: Surface Mount Get a Quote
Specification Value
Input
Input Voltage (Nominal): 5, 12, 24
Input Voltage Range: 4.5~5.5, 10.8~13.2, 21.6~26.4
Input Filter: Internal Capacitor
Output
Output Voltage: -15, -12, 5, 12, 15
Voltage Accuracy: ±2.0
Output Current: 133mA, 165mA, 400mA, ±66mA, ±83mA
Output Power (Watts): 2
Short Circuit Protection: Yes
General
Efficiency: Up to 75%
Isolation: Rated for 60 Seconds: 4000VACrms
Tested for 1 Second: 8000VDC
Environmental
Operating Temperature: -20 to +80ºC
Storage Temperature: -50 to +125ºC
Physical
Weight: 0.13oz (3.75g)

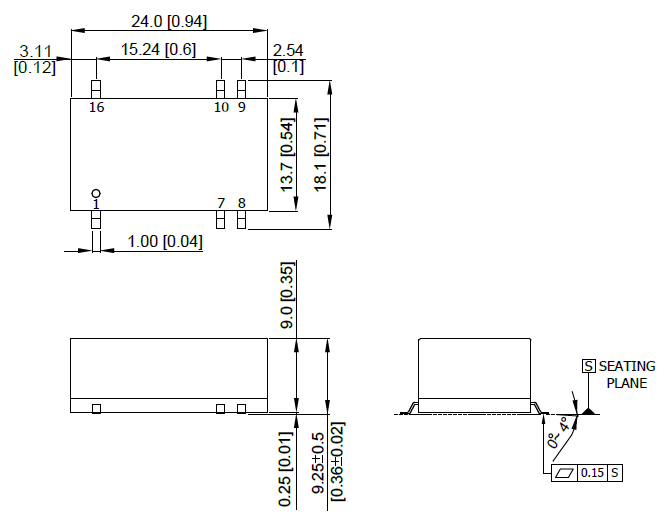

Dimensions: 0.94in x 0.54in 0.35in (24mm x 13.7mm x 9mm)
Case Material: Non-Conductive Black Plastic
Notes & safety
Notes: 1. These power converters require a minimum output loading to maintain specified regulation, operation under no-load conditions will not damage these modules; however they may not meet all listed specifications.
2. We recommend to protect the converter by a slow blow fuse in the input supply line.
3. Other input and output voltages may be available, please contact factory.
4. Natural Convection is about 20LFM, but is not equal to still air (0LFM).
5. It is not recommended to use water-washing process on SMT units.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/cUL 60950-1 recognition (UL certificate), IEC/EN 60950-1 (CB Report)
RoHS Compliance: Yes
