DCMRD5
The DCMRD5 series of isolated DC DC converters offers 5 watts of output power in a compact 1” x 1” x 0.4” frame. This series consists of single and dual outputs with wide 2:1 input voltage range (9~18V, 18~36V, 36~75V) and output voltages of 5VDC, 12VDC, and ±15VDC. Each model is RoHS compliant and meets IEC/EN60950-1 safety standards. The series is protected against over load, short circuit, and over voltage conditions and has high power density.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCMRD5-12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 1000mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMRD5-12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 416mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMRD5-12D15 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±167mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMRD5-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 1000mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMRD5-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 416mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMRD5-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±167mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMRD5-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 1000mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMRD5-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 416mA | Output Power (W): 5 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| DCMRD5-48D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±167mA | Output Power (W): 5 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 18~36, 36~75, 9~18 |
| Input Filter: | Pi Type |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 5, 12, ±15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 1000mA, 416mA, ±167mA |
| Output Power (Watts): | 5 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | Yes |
| General | |
| Efficiency: | Up to 83% |
| Isolation: | 1500VDC |
| Environmental | |
| Operating Temperature: | -55 to 95°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 0.62 oz |

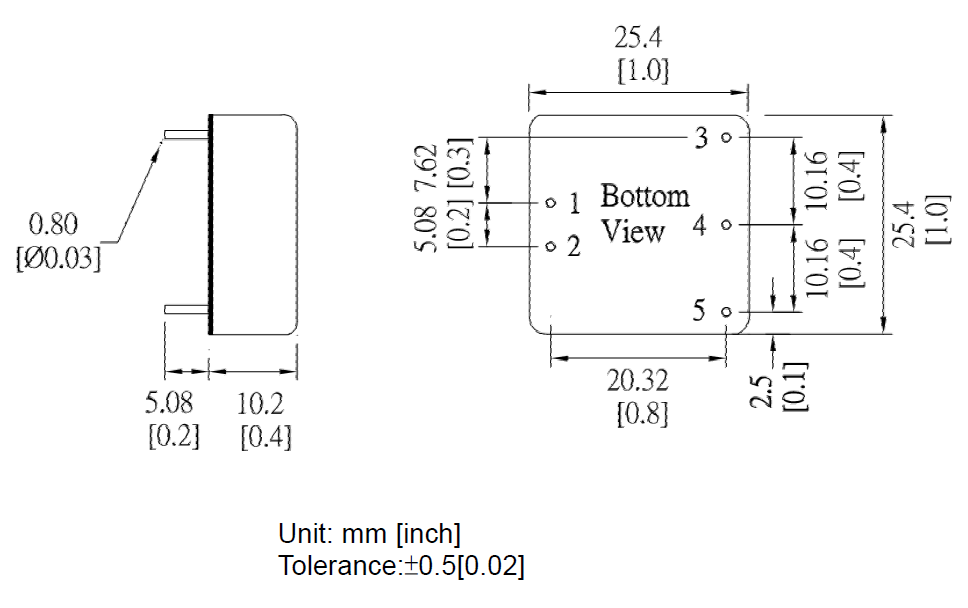

| Dimensions: | 1in x 1in x 0.4in |
| Case Material: | Nickel-Coated Copper |
| Notes & safety | |
| Notes: | (1) Io below this value will not damage these converters, however, they may not meet all listed specification. (2) Typical value, tested at nominal input and full load. (3) For each output. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | Designed to meet IEC/EN60950-1 |
| RoHS Compliance: | Yes |
