DCMCW60

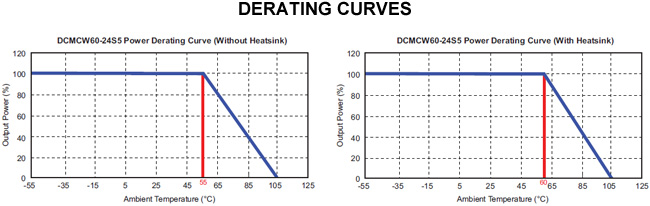

The DCMCW60 series of isolated DC/DC power converters provides 60 Watts of continuous output power in a standard 2.40” x 2.28” x 0.5” half-brick package. This series consists of 5V, 12V, and 24VDC single output models with 4:1 input voltage ranges of 9-36VDC or 18~75VDC. Some features include high efficiency up to 88%, remote on/off, adjustable output voltage, 1500VDC I/O isolation, -55°C~+95°C operating temperature range (with derating), and five-sided shielding. The DCMCW60 series is RoHS compliant and has short circuit, over load, over voltage, and over temperature protection. These converters are best suited for use in battery operated equipment, measurement equipment, telecom, wireless networks, industry control systems, military/defense applications and anywhere where isolated, tightly regulated voltages and compact size are required.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCMCW60-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 12000mA | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCMCW60-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 5000mA | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCMCW60-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 2500mA | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCMCW60-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 12000mA | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCMCW60-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 5000mA | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| DCMCW60-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 2500mA | Output Power (W): 60 | No. Outputs: S | Case: Through Hole | Size: 2.4" x 2.28" x 0.5" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 18~75, 9~36 |
| Input Filter: | Pi Type |
| Remote ON/OFF: | Yes |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 5, 12, 24 |
| Voltage Accuracy: | ±1% |
| Output Current: | 12A, 5A, 2.5A |
| Output Power (Watts): | 60 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | hiccup, automatic recovery |
| Over Voltage Protection: | Yes |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | Up to 88% |
| Isolation: | 1500VDC |
| Environmental | |
| Operating Temperature: | -55 to 95°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 3.42 oz |

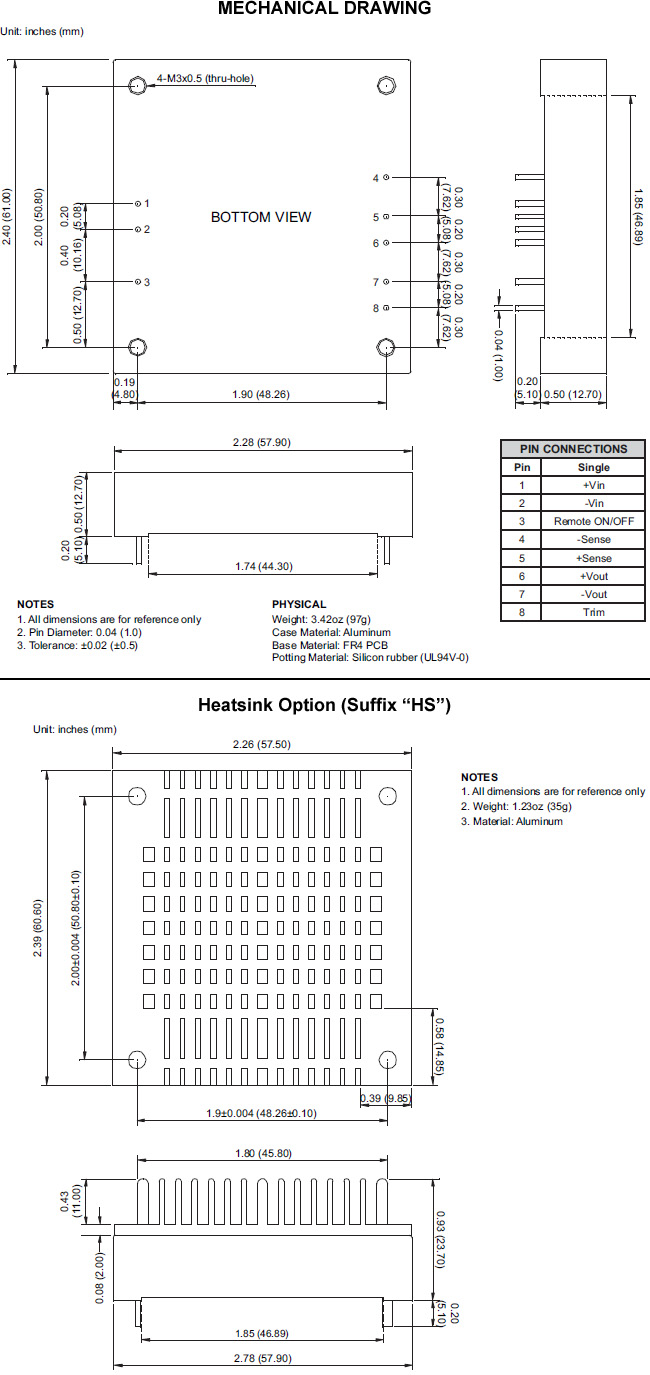

| Dimensions: | 2.40 x 2.28 x 0.50 |
| Case Material: | Aluminum |
| Shielding: | Five-sided |
| Notes & safety | |
| Notes: | 1. Output current below this value will not damage these converters; however, they may not meet all listed specifications. 2. Typical value tested at nominal input and full load. 3. For Heatsink option, add the suffix “HS” to the model number. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC/EN60950-1 |
| RoHS Compliance: | Yes |
