DCCE24S2428-1000

The DCCE24S22428-1000 model of bidirectional DC/DC converters offers 28 watts of output power in a very compact through hole package. This is a single output model with constant voltage and constant current mode and an input voltage of 15-36VDC. It features high efficiency, 3KVDC isolation, and short circuit protection. The DCCE24S2428-1000 model is also RoHS compliant. Please note that this is a preliminary publication. Contact factory for ordering information.

• Bidirectional DC/DC Converter • High Efficiency • Constant Voltage and Constant Current Mode • Continuous Short Circuit Protection • 3KVDC Isolation • RoHS Compliant • EN62368-1 Safety Approval
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DCCE24S2428-1000 Input Voltage: 28, 24 Output Voltage: 24, 28 Output Current: 1000mA Output Power (W): 28 No. Outputs: S Case: Through Hole Get a Quote
Specification Value
Input
Input Voltage (Nominal): 24, 28
Input Voltage Range: 15~36
Input Filter: Pi Type
Output
Output Voltage: 24, 28
Voltage Accuracy: ±5%
Output Current: 1000mA
Output Power (Watts): 28
Short Circuit Protection: Continuous, Automatic Recovery
General
Efficiency: 86%
Isolation: 3KVDC
Environmental
Operating Temperature: -40 to +85ºC
Storage Temperature: -45 to +105ºC
Physical
Weight: 0.88oz

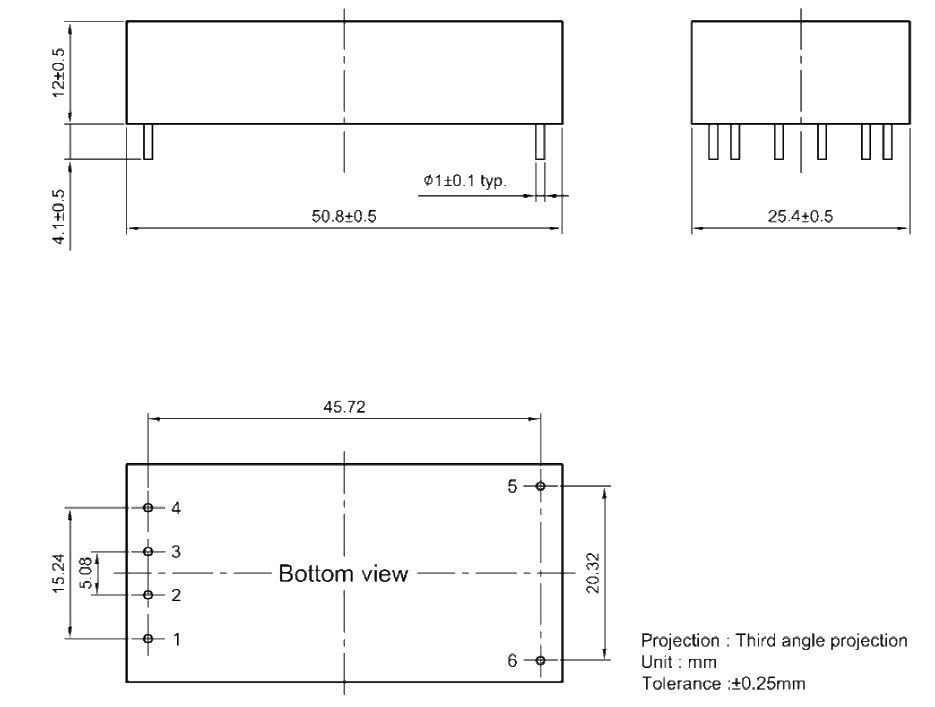

Dimensions: 2in x 1in x 0.47in (50.8mm x 25.4mm x 12mm)
Case Material: Plastic
Notes & safety
Notes: 1. 20MHz BW at vin range CV-mode, 0~90% load 9 (contact MLCC 1µF).
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: EN62368-1
RoHS Compliance: Yes
