ELANE-6KV
| The ELANE-6KV series of DC/DC converters offers 1 watt of output power in a compact 0.77” x 0.28” x 0.39” SIP package. This series consists of both single and dual unregulated output models that feature 6kv isolation and high efficiency. The ELANE-6KV series is protected against short circuit conditions, is RoHS compliant, and certain models are UL 60950-1 approved. |
• SIP Package • 7 Pins • High Efficiency • Unregulated Output Types • Internal SMD Construction • No External Components Required • 6KV Isolation • Short Circuit Protection • RoHS Compliant • UL 60950-1 Approval on Certain Models
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| ELANE305S6KV | Input Voltage: 3.3 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE309S6KV | Input Voltage: 3.3 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE312S6KV | Input Voltage: 3.3 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE315S6KV | Input Voltage: 3.3 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE324S6KV | Input Voltage: 3.3 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE505S6KV | Input Voltage: 5 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE509S6KV | Input Voltage: 5 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE512S6KV | Input Voltage: 5 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39 | Get a Quote |
| ELANE515S6KV | Input Voltage: 5 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE524S6KV | Input Voltage: 5 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE905S6KV | Input Voltage: 9 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE909S6KV | Input Voltage: 9 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE912S6KV | Input Voltage: 9 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE915S6KV | Input Voltage: 9 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE924S6KV | Input Voltage: 9 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39 | Get a Quote |
| ELANE1205S6KV | Input Voltage: 12 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE1209S6KV | Input Voltage: 12 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39 | Get a Quote |
| ELANE1212S6KV | Input Voltage: 12 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE1215S6KV | Input Voltage: 12 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE1224S6KV | Input Voltage: 15 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE1505S6KV | Input Voltage: 15 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE1509S6KV | Input Voltage: 15 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE1512S6KV | Input Voltage: 15 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE1515S6KV | Input Voltage: 15 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE1524S6KV | Input Voltage: 15 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE24S05S6KV | Input Voltage: 24 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE2409S6KV | Input Voltage: 24 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE2412S6KV | Input Voltage: 24 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE2415S6KV | Input Voltage: 24 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE2424S6KV | Input Voltage: 24 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE305D6KV | Input Voltage: 3.3 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE309D6KV | Input Voltage: 3.3 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE312D6KV | Input Voltage: 3.3 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE315D6KV | Input Voltage: 3.3 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE324D6KV | Input Voltage: 3.3 | Output Voltage: 24, -24 | Output Current: ±21mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE505D6KV | Input Voltage: 5 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE509D6KV | Input Voltage: 5 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE512D6KV | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE515D6KV | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE524D6KV | Input Voltage: 5 | Output Voltage: 24, -24 | Output Current: ±24mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE905D6KV | Input Voltage: 9 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE909D6KV | Input Voltage: 9 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE912D6KV | Input Voltage: 9 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE915D6KV | Input Voltage: 9 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39 | Get a Quote |
| ELANE924D6KV | Input Voltage: 9 | Output Voltage: 24, -24 | Output Current: ±21mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE1205D6KV | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE1209D6KV | Input Voltage: 12 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE1212D6KV | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE1215D6KV | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE1224D6KV | Input Voltage: 12 | Output Voltage: 24, -24 | Output Current: ±24mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE1505D6KV | Input Voltage: 15 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE1509D6KV | Input Voltage: 15 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE1512D6KV | Input Voltage: 15 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE1515D6KV | Input Voltage: 15 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE1524D6KV | Input Voltage: 15 | Output Voltage: 24, -24 | Output Current: ±21mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE2405D6KV | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE2409D6KV | Input Voltage: 24 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE2412D6KV | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE2415D6KV | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| ELANE2424D6KV | Input Voltage: 24 | Output Voltage: 24, -24 | Output Current: ±21mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.77" x 0.28" x 0.39" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 3.3, 5, 9, 12, 15, 24 |
| Input Voltage Range: | 2.97~3.63, 4.5~5.5, 8.1~9.9, 10.8~13.2, 13.5~16.5, 21.6~26.4 |
| Input Filter: | Capacitor |
| Output | |
| Output Voltage: | 5, 9, 12, 15, 24, ±5, ±9, ±12, ±15, ±24 |
| Output Current: | 42mA, 67mA, 84mA, 112mA, 200mA, ±21mA, ±34mA, ±42mA, ±56mA, ±100mA |
| Output Power (Watts): | 1 |
| Short Circuit Protection: | Short Term, 1 Sec. |
| General | |
| Efficiency: | Up to 82% |
| Isolation: | 6KV |
| Environmental | |
| Operating Temperature: | -40 to +85ºC |
| Storage Temperature: | -40 to +100°C |
| Physical | |
| Weight: | 0.095oz (2.7g) |

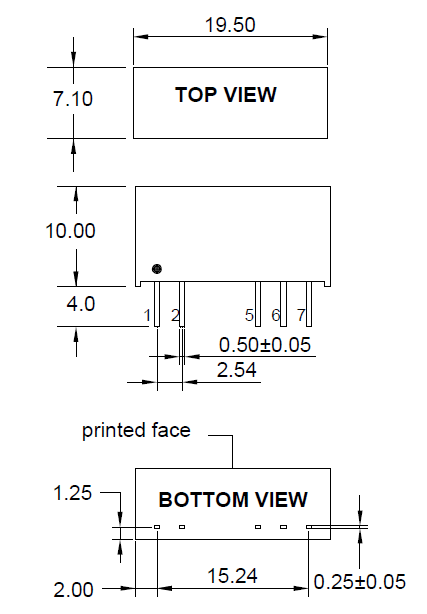

| Dimensions: | 0.77in x 0.28in x 0.39in (19.5mm x 7.10mm x 10.0mm) |
| Case Material: | DAP |
| Notes & safety | |
| Notes: | 1. This product is Listed to applicable standards and requirements by UL. 2. If input voltage increases, there will be an increase in efficiency. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL 60950-1 for certain models |
| RoHS Compliance: | Yes |
