DCMFPU01H

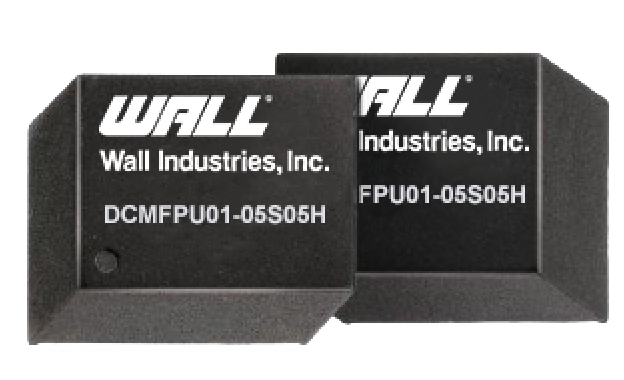

The DCMFPU01H series of DC DC converters offers 1 watt of output power in a compact 0.50” x 0.40” x 0.31” standard DIP-8 package. This series consists of both single and dual output models with 3.3VDC, 5VDC, and 12VDC input voltages available. Each model in this series has I/O isolation of 3000VDC, high efficiency, as well as over load and short circuit protection. This series also has UL/cUL 60950-1, IEC/EB 60950-1, UL/cUL 62368-1, and IEC/EN 62368 pending safety approvals. Please call factory for order details.
• Standard DIP-8 Package
• I/O Isolation 3000VDC
• 3.3VDC, 5VDC, and 12VDC Input Voltages Available
• Single and Dual Outputs Available
• High Efficiency
• Over Load and Short Circuit Protection
• UL/cUL 60950-1, IEC/EB 60950-1, UL/cUL 62368-1, and IEC/EN 62368 Pending Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DCMFPU01-033S033H | Input Voltage: 3.3 | Output Voltage: 3.3 | Output Current: 300mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.5" x 0.4" x 0.31" | Get a Quote |
| DCMFPU01-033S05H | Input Voltage: 3.3 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.5" x 0.4" x 0.31" | Get a Quote |
| DCMFPU01-033S12H | Input Voltage: 3.3 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.5" x 0.4" x 0.31" | Get a Quote |
| DCMFPU01-033S15H | Input Voltage: 3.3 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.5" x 0.4" x 0.31" | Get a Quote |
| DCMFPU01-05033H | Input Voltage: 5 | Output Voltage: 3.3 | Output Current: 300mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.5" x 0.4" x 0.31" | Get a Quote |
| DCMFPU01-05S05H | Input Voltage: 5 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.5" x 0.4" x 0.31" | Get a Quote |
| DCMFPU01-05S12H | Input Voltage: 5 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.5" x 0.4" x 0.31" | Get a Quote |
| DCMFPU01-05S15H | Input Voltage: 5 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.5" x 0.4" x 0.31" | Get a Quote |
| DCMFPU01-12S033H | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 300mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.5" x 0.4" x 0.31" | Get a Quote |
| DCMFPU01-12S05H | Input Voltage: 12 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.5" x 0.4" x 0.31" | Get a Quote |
| DCMFPU01-12S12H | Input Voltage: 12 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.5" x 0.4" x 0.31" | Get a Quote |
| DCMFPU01-12S15H | Input Voltage: 12 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.5" x 0.4" x 0.31" | Get a Quote |
| DCMFPU01-033D05H | Input Voltage: 3.3 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.4" x 0.31" | Get a Quote |
| DCMFPU01-033D12H | Input Voltage: 3.3 | Output Voltage: 12, -12 | Output Current: ±45mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.4" x 0.31" | Get a Quote |
| DCMFPU01-033D15H | Input Voltage: 3.3 | Output Voltage: 15, -15 | Output Current: ±33mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.4" x 0.31" | Get a Quote |
| DCMFPU01-05D05H | Input Voltage: 5 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.4" x 0.31" | Get a Quote |
| DCMFPU01-05D12H | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.4" x 0.31" | Get a Quote |
| DCMFPU01-05D15H | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±33mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.4" x 0.31" | Get a Quote |
| DCMFPU01-12D05H | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.4" x 0.31" | Get a Quote |
| DCMFPU01-12D12H | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.4" x 0.31" | Get a Quote |
| DCMFPU01-12D15H | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±33mA | Output Power (W): 1 | No. Outputs: D | Case: Through Hole | Size: 0.5" x 0.4" x 0.31" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 3.3, 5, 12 |
| Input Voltage Range: | 2.97~3.63, 4.5~5.5, 10.8~13.2 |
| Input Filter: | Internal Capacitor |
| Output | |
| Output Voltage: | -15, -12, -5, 3.3, 5, 12, 15 |
| Voltage Accuracy: | ±3.0% Max. |
| Output Current: | -100mA, -42mA, -33mA, 33mA, 42mA, 67mA, 84mA, 100mA, 200mA, 300mA |
| Output Power (Watts): | 1 |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| General | |
| Efficiency: | Up to 84% |
| Isolation: | 3000VDC |
| Environmental | |
| Operating Temperature: | -40 to +90ºC |
| Storage Temperature: | -50 to +125ºC |
| Physical | |
| Weight: | 0.069oz (1.95g) |
| Dimensions: | 0.50in x 0.40in x 0.31in (12.7mm x 10.2mm x 8.0mm) |
| Case Material: | Non-Conductive Black Plastic |
| Notes & safety | |
| Notes: | 1. These power converters require a minimum output loading to maintain specified regulation, operation under no-load conditions will not damage these modules; however they may not meet all specifications listed. 2. We recommend protecting the converter by a fast blow fuse in the input supply line. 3. Other input and output voltages may be available, please contact factory. 4. To meet EN55022 Class A an external filter is necessary, please contact factory. 5. To meet EN61000-4-4 & EN61000-4-5 an external capacitor across the input pins is required. Suggested capacitor 680µF/50V KY Al-E Cap. 6. Natural Convection is about 20LFM but is not equal to still air (0 LFM) 7. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL 60950-1 recognition (UL certificate), IEC/EN 60950-1 (CB report), UL/cUL 62368-1 recognition (UL certificate), IEC/EN 62368-1 (CB report) |
| TUV Efficiency Level: | Yes |
