Wall introduces 3 new series into the PSEF family of enclosed power supplies
Wall Industries Inc. has introduced 3 new series to the PSEF family of enclosed power supplies. With these new series, the PSEF family now ranges from 100 to 320 watts including series that are 100, 150, 200, and 320 watts.
Each series in this family offers low profile models, each with universal input voltage range of 85-305VAC/100-430VDC. They accept AC or DC input and offer high active PFC, high efficiency, and 4000VAC isolated voltage. This product family is suitable for high input voltage, temperature, humidity, and altitude requirements such as industrial, electric vehicle, smart home, telecommunications, and LED applications.
The PSEF family of products has UL62368, EN62368, IEC62368 and GB4943 safety approvals. They each are RoHS compliant and protected against short circuit, over current, over voltage, and over temperature conditions. Protective cover or conformal coating is also available for added protection to these series. Please visit the PSEF series pages for further information.

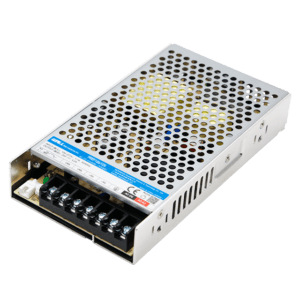

PSEF100 PSEF150 PSEF200 PSEF320
PSEF Family
Series Name |
Watts |
Input Voltage Range |
Output Range (VDC) |
Temp. Range |
Dimensions |
Weight |
Safety Certification |
|
PSEF100 |
100.5-102W | 85-305VAC (120-430VDC | 12, 15, 24, 48 | -30 to +70°C | 7.05” x 3.90” x 1.81” | 1.01lbs | IEC/EN/UL62368/GB4943 |
|
PSEF150 |
150-153.6W |
12, 15, 24, 48 |
-30 to +70°C | 7.05” x 3.90” x 1.81” | 1.10lbs |
IEC/EN/UL62368/GB4943 |
|
|
PSEF200 |
200.4-201.6W |
12, 15, 24, 48 |
-30 to +70°C | 7.05” x 3.90” x 1.81” | 1.05lbs |
IEC/EN/UL62368/GB4943 |
|
| PSEF320 | 240-321.6W | 4, 5, 12, 15, 24, 27, 48 | -30 to +70°C | 8.47” x 4.53” x 1.81 | 1.65lbs | IEC/EN/UL62368/GB4943 |
