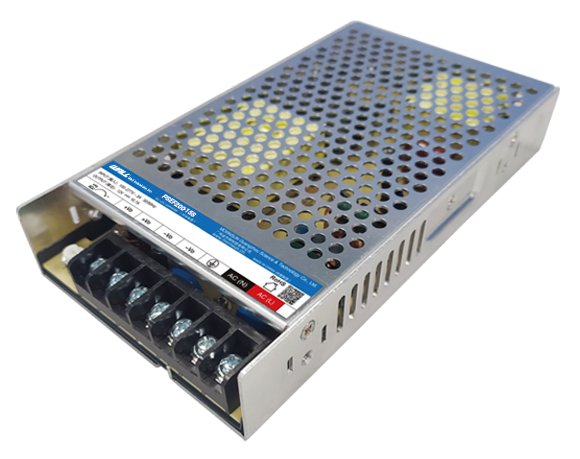

PSEF200

The PSEF200 series of AC/DC switching power supplies offers up to 201.6 watts of output power in an enclosed 7.05” x 3.90” x 1.81” package. This series consists of single output models with an input voltage range of 85~305VAC or 120~430VAC as this series accepts AC or DC input. Each model features built-in active PFC function, high isolation test voltage, and LED indicator for power on. This series has short circuit, over current, over voltage, and over temperature protection, and also has IEC/ EN/UL62368, GB4943 safety approvals.

• Universal 85-305VAC or 120~430VDC Input Voltage • Accepts AC or DC Input (Dual-Use of Same Terminal) • Built-In Active PFC Function • High I/O Isolation Test Voltage up to 4000VAC • Compact Size with a Low 1U Profile • Output Short Circuit, Over Current, Over Voltage, and Over Temperature Protection • Compact Size with Low 1U Profile • LED Indicator for Power On • Start-up delay time less than 5 seconds at -30℃ • Emissions Meet CISPR32/EN55032 Class B •IEC/EN/UL62368, GB4943 Safety Approvals, and Safety According to EN60335
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
PSEF200-12S Input Voltage: 85~305 Output Voltage: 12 Output Current: 16.7A Output Power (W): 200.4 No. Outputs: S Case: Enclosed Size: 7.05" x 3.90" x 1.81" Get a Quote
PSEF200-15S Input Voltage: 85~305 Output Voltage: 15 Output Current: 13.4A Output Power (W): 201 No. Outputs: S Case: Enclosed Size: 7.05" x 3.90" x 1.81" Get a Quote
PSEF200-24S Input Voltage: 85~305 Output Voltage: 24 Output Current: 8.4A Output Power (W): 201.6 No. Outputs: S Case: Enclosed Size: 7.05" x 3.90" x 1.81" Get a Quote
PSEF200-48S Input Voltage: 85~305 Output Voltage: 48 Output Current: 4.2A Output Power (W): 201.6 No. Outputs: S Case: Enclosed Size: 7.05" x 3.90" x 1.81" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 85~305
Input Frequency: 47 - 63Hz
Output
Output Voltage: 12, 15, 24, 48
Voltage Accuracy: ±1%
Output Current: 4.2A, 8.4A, 13.4A, 16.7A
Output Power (Watts): 200.4, 201, 201.6
Short Circuit Protection: Hiccup, continuous, self-recovery
Over Voltage Protection: Yes
General
Efficiency: Up to 90%
Isolation: 4000VAC
Environmental
Operating Temperature: -30 to 70°C
Storage Temperature: -40 to 85°C
Physical
Weight: 1.05lbs (475g)

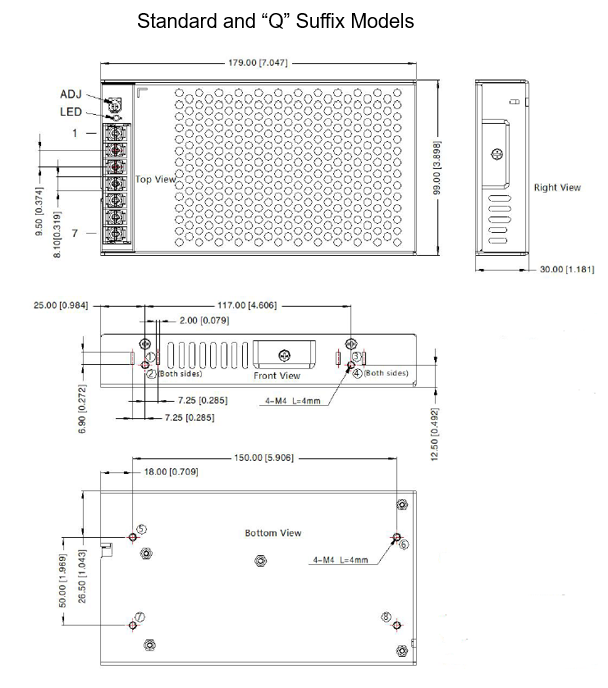

Dimensions: 7.05in x 3.90in x 1.81in (179mm x 99mm x 30mm)
Case Material: Metal (AL1100)
Notes & safety

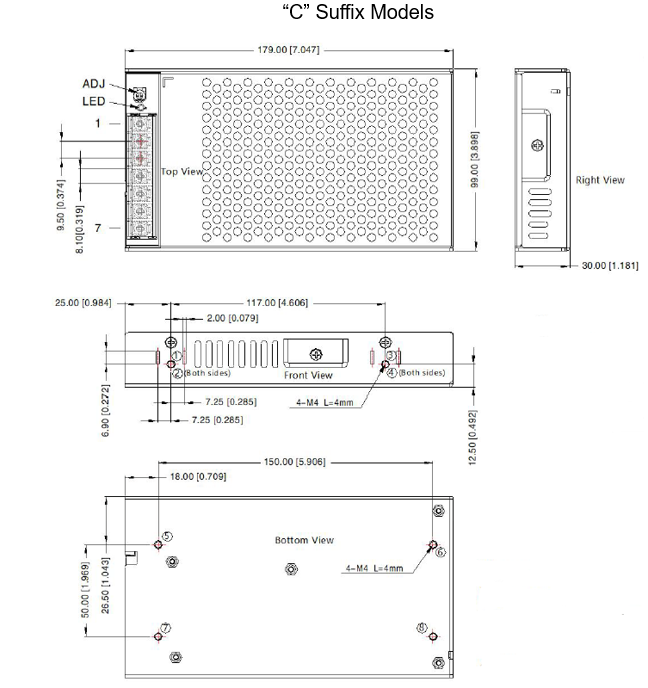

Notes: 1. Add “C” to model number to indicate terminal with protective cover, and “Q” to model number for conformal coating.
2. Tip and barrel method is used for ripple and noise test. Output parallel 47uF electrolytic capacitor and 0.1uF ceramic capacitor, contact factory for more information.
3. Over-Current Protection: test at rated output voltage. Io is rated output current load.
4. Over-Temperature Protection needs to be tested under rated full load conditions.
5. This product is Listed to applicable standards and requirements by UL.
6. One magnetic bead (nickel-zinc ferrite) should be coupled with the output load line during CE/RE testing.
7. The power supply is considered a component as part of a system. All EMC items are tested on a metal plate (450mm x 450mm x 3mm). Power supply should be combined with final equipment for EMC confirmation.
8. Ambient temperature derating of 5°C/1000m is needed for operating altitude greater than 2000m.
9. In order to improve the efficiency at high input voltage, there will be audible noise generated, but does not affect product performance and reliability.
10. Product customization service is available, please contact factory for more details.
11. Out case needs to be connected to PE ( ) of system when terminal equipment in operating.
12. Products should be classified according to ISO14001 and related environmental laws and regulations and should be handled by qualified units.
13. Power supply is considered a component which will be installed into terminal equipment. All EMC tests should be confirmed with final equipment.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: IEC/EN/UL62368, EN60335, GB4943
RoHS Compliance: Yes
